| Specification | |

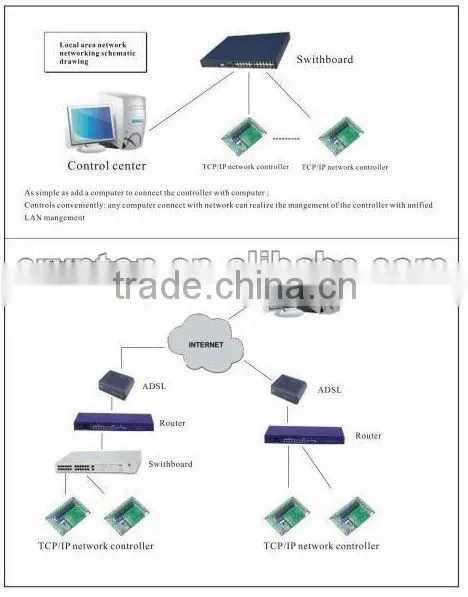

| Communication | TCP/IP+Web standalone |
| English Software supportable database: | SQL |
| Power Supply | 12VDC; 4-7A |
| Power Consumption of Circuit Board | Less than 100mA |
| Input Format of Reader |
Wiegand 26/34 bit (All card reader with compatible protocol, such as Motorola , HID, EM , Mifare one etc) |
| Quantity of Readers | 4 Pcs |
| Door Controlled | 2 |
| Description |
Control 2 door, get in and out door by swiping card, or get in by swiping card and get out door by button |
| Door opening time extending setting | 1-600 Seconds(adjustable) |
| Max q ' ty of controller | Unlimited |
| Operation Temperature | -40°-70° |
| Operation Humidity | 10-90 % RH ,No Condensation |
| Q ' ty of users | 20,000 Users |
| Q ' ty of Event Buffers(offline) | 100,000 Event Buffers |
| Power interruption protection measure | High Speed Memory, Records never lose |
| Max Distance from Reader to Controller | 100M (suggestion distance 80m) |
| Max Distance between Controllers | Depand on network range |
| Collocations |
PCB board, case, power, power line, serial port communication line, software, manual, certificate, key(2pcs), carton |
|
Alarm for long time door open, ilegal break in, intimidate |
Yes |
| Fire and alarm linkage |
If no connection with the expansion board, only has software interface alarm, and drive the computer speaker. If connected with expansion board, is able to alarm by hardware If connected with strengthened expansion board, then is able to Security alarm. |
| Parameter | |
| Conventional Function | offline operation; |
| real time supervision; | |
| remote unlocking;multi-user supervision; | |
| report form;report can be exported to excel file; | |
| card+password unlocking;alarm for long time unclosing; | |
| alarm for invalid card swiping;alarm for illegal break in; | |
| unlocking at definite time | |
| Professional function |
for professional users such as bank,cash house,telecom station, power supply station,prison and plice station interface locking; intimidation alarm; integrated fire control;anti-passback and anti-tail; interlocking; multicard unlocking; emergency double locking; in door population checking;unlocking based on internal and external validation. |
| all-in-one-card management system |
nomal shift and multi-shifts time attendance management system; fixed ration dining management system; meeting attendance management system; online patrol management system and security alarm management system. |
| Packing Details for Access control | |
| Unit Size | 160mm x106mm |
| Unit Packing Way | Brown box |
| Unit Packing Size | 273mmx228mmx65mm |
| Accessories | User Manual, warranty card |

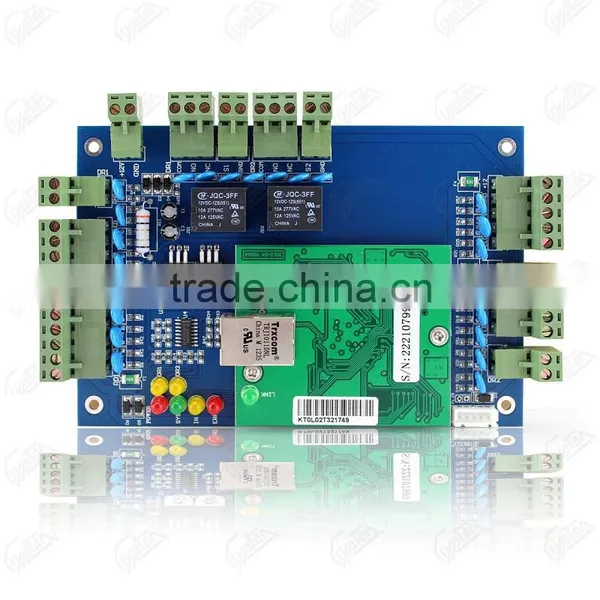

| Picture for ACB-002 access control | |
| |

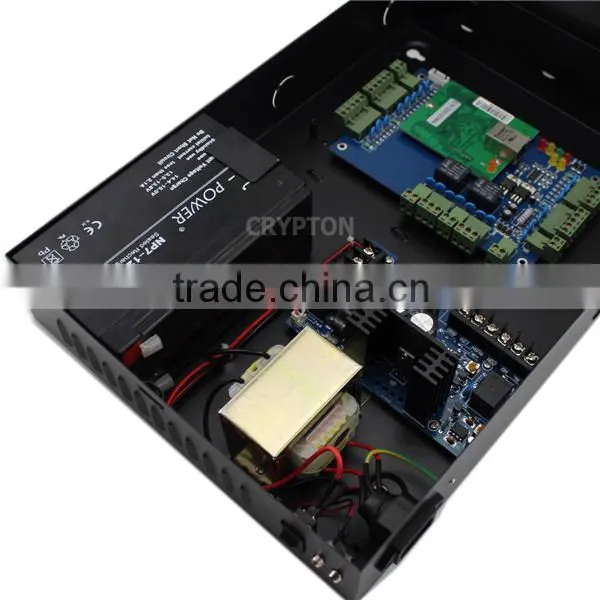

| ACB-PS08A Backup Power Supply work with ACB-002 access control, 110V 220V are available, built in backup battery space. | |
|
| |

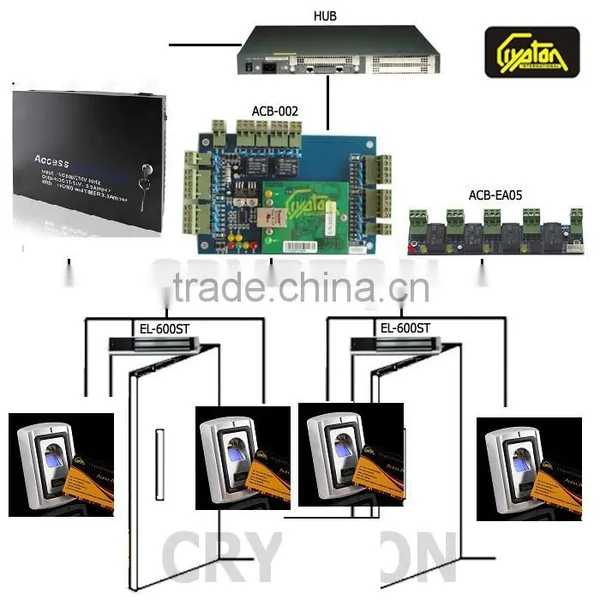

| ACB-002 Control 2 doors, get in and out door by swiping card/pincode | |
|
| |
| ACB-002 access control, Access by swiping card-PCD-103 and get out door by button EB-16 | |
|
| |
|

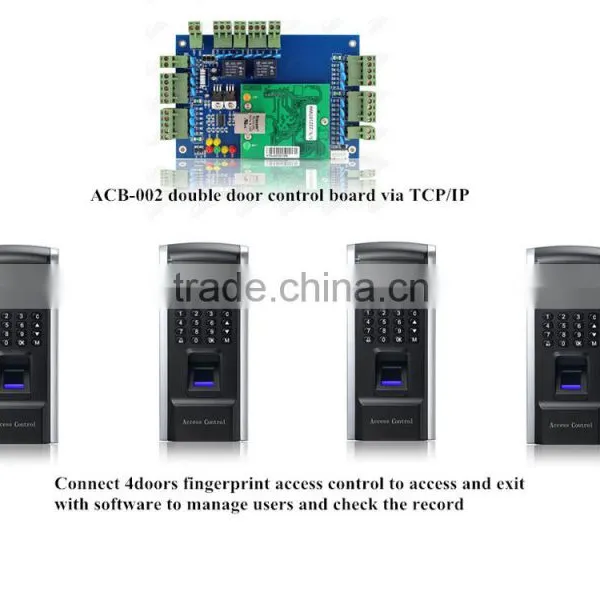

ACB-002 enter door by Finger or swipe ID cards ( CRT-F11 Fingeprint Reader ) exit door by EB-16 Infrared Sensor Exit Button | |
|
| |

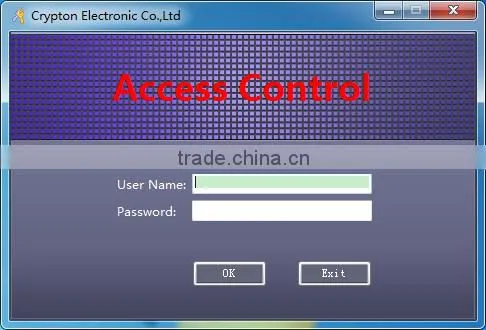

| Access Control Software | |
|
|
| After service provided from Crypton&S4A Electronic Co.Ltd | |
|
Dear customers: (hereinafter referred to as: Crypton ),the 2nd branch is:S4A Electronic Co.Ltd.Doha-Qatar branch office.(name is Crypton) make the following warranty and service commitments: | |
|
1.Warranty the purchasing date) , Crypton electronic offer you free warranty (ACB series control board,UHF long range card reader, within 2year quality guarantee. warranty period is 1 years, There will be labour and parts cost charged if the warranty period is expired; If the product need to be renovated, there will be labour cost and handling cost in cured. | |
|
2.Hot line services at +86 755 29450011, Crypton electronic engineers and product designers will answer all the related questions. We will regularly put those customer common problems settlement solutions into the website for customer reference, there are general technical and non-technical problems will be included. | |
|
3.Quick response will be response to the customer request within 2hours at working days, and will solve the problem within two working days. If there is any special reason the product cannot be repaired, we will contact you to find out the solutions, if the products being out of the warranty period, there will be related service charges. above, Crypton will contact you to find out the better solution.. | |
|
4.After-sales service confirmation procedures the product of free warranty period will be calculated 30 days after ex-factory date. service. warranty period is less than three months, Crypton electronic will extend the free warranty up to three months.
| |
|
5. Customers cannot enjoy “Crypton electronic standard warranty policy " situation malfunction. input voltage or current discrepancy) lead to malfunction. | |
|
|
Crypton obtained more than 9years experience in Door access control systems and solutions, we did many project in local market, if you need diagram or wiring, just email or call us back at anytime. we will send relevant according to your request. In shenzhen ,we have 2office, as :Crypton Electronic Co.Ltd S4A Industrial Co.Limited Also we have 1branch office in Doha-Qatar, also selling door access control systems and provide technicial support. if you need local installation, we are happy to serve you.. |
|
Products we could provide are below: Access Control Board (for single door, double door and four door support TCP/IP and web based) Standalone access control (Easy to install and program without software) Fingerprint access control&time attendance (Easy to install and program with software and keep record) UHF long range card reader (5M or 15M or 20M are avaliable in the stock list) Facial access control terminals (Face to open the door or do record) Electromagnetic lock/Bolt lock/Strike lock Exit push button/Access Power supply/RFID cards RFID card reader (to work with access control board) Facial Recognition Door Lock We are here waiting for your inquiries! My friend |
| 1: What's Crypton access control board features and advantages? |
|
Answer: Our advantages: easy to install, easy to use, easy to upgrade, high stability and compatibility. You may find we don't have a lot of models, but all these models are Crypton's elite of 10 years experience in this industry. |
Also we have Russian software released in Nov,2015.
for any inquires, pls kindly email back to our sales at anytime.
