rfid access controller

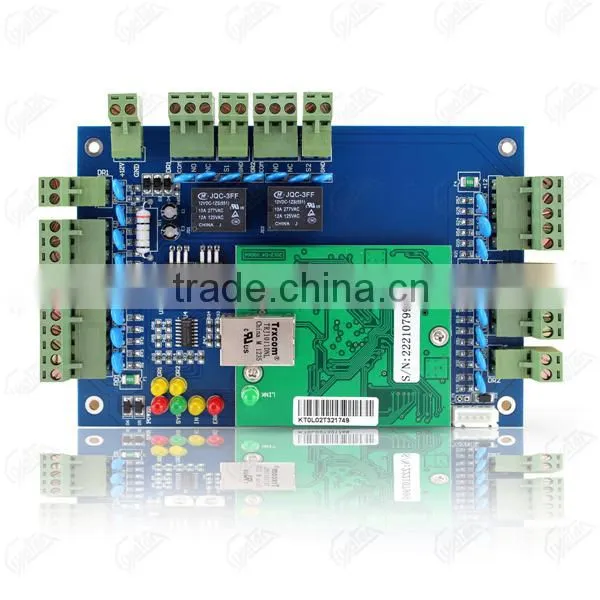

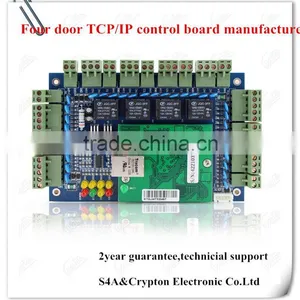

this is Crypton access control board, if you have 20doors in the same network need to be controlled.
we could configure 5pcs X 4 door access control board to configure.
| Parameter for rfid access controller | |
| Conventional Function | offline operation; |
| real time supervision; | |
| remote unlocking;multi-user supervision; | |
| report form;report can be exported to excel file; | |
| card+password unlocking;alarm for long time unclosing; | |
| alarm for invalid card swiping;alarm for illegal break in; | |
| unlocking at definite time | |
| Professional function | for professional users such as bank,cash house,telecom station, power supply station,prison and plice station interface locking; intimidation alarm; integrated fire control;anti-passback and anti-tail; interlocking; multi-card unlocking; emergency double locking; in door population checking;unlocking based on internal and external validation. |
| all-in-one-card management system | nomal shift and multi-shifts time attendance management system; fixed ration dining management system; meeting attendance management system; online patrol management system and security alarm management system. |
| Specification for rfid access controller | |
| Communication | TCP/IP+Web standalone |
| English Software supportable database: | SQL |
| Power Supply | 12VDC; 4-7A |
| Power Consumption of Circuit Board | Less than 100mA |
| Input Format of Reader | Wiegand 26/34 bit (All card reader with compatible protocol, such as Motorola , HID, EM , Mifare one etc) |
| Quantity of Readers | 4 Pcs |
| Door Controlled | 4 |
| Description | Control 2 door, get in and out door by swiping card, or get in by swiping card and get out door by button |
| Door opening time extending setting | 1-600 Seconds(adjustable) |
| Max q ' ty of controller | Unlimited |
| Operation Temperature | -40°-70° |
| Operation Humidity | 10-90 % RH ,No Condensation |
| Q ' ty of users | 20,000 Users |
| Q ' ty of Event Buffers(offline) | 100,000 Event Buffers |
| Power interruption protection measure | High Speed Memory, Records never lose |
| Max Distance from Reader to Controller | 100M (suggestion distance 80m) |
| Max Distance between Controllers | Depand on network range |
| Collocations | PCB board, case, power, power line, serial port communication line, software, manual, certificate, key(2pcs), carton |
| Alarm for long time door open, ilegal break in, intimidate | Yes |
| Fire and alarm linkage | If no connection with the expansion board, only has software interface alarm, and drive the computer speaker. If connected with expansion board, is able to alarm by hardware If connected with strengthened expansion board, then is able to Security alarm. |
| Packing Details for rfid access controller | |
| Unit Size | 160mm x106mm |
| Unit Packing Way | Brown box |
| Unit Packing Size | 273mmx228mmx65mm |
| Accessories | User Manual, warranty card |

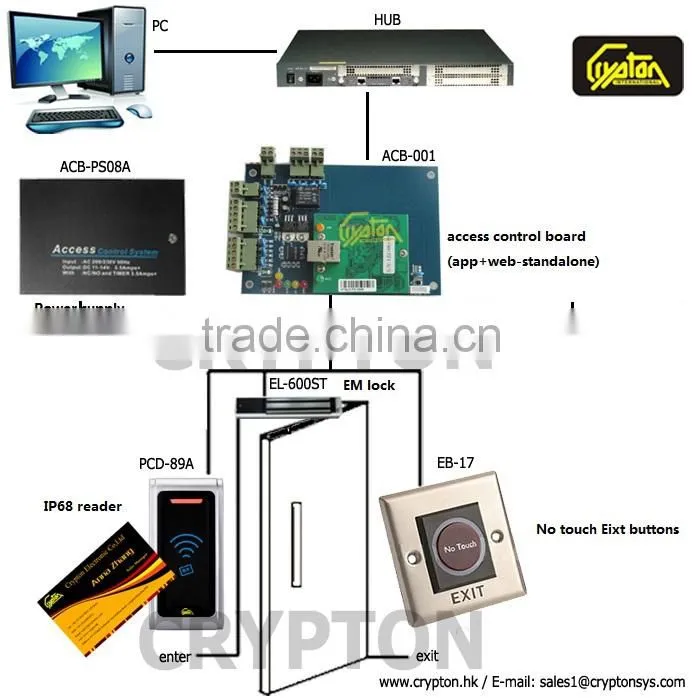

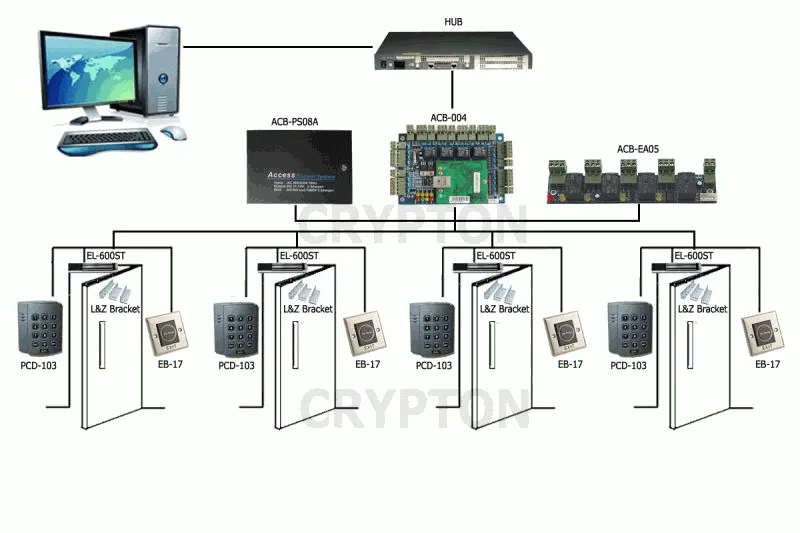

| V. Connection Diagram for rfid access controller | |
| ACB-001 ACB-002 ACB-004 | Access Controller with TCP IP and Webstandalone |
| ACB-PS08A | Metal Case Access Power Supply |

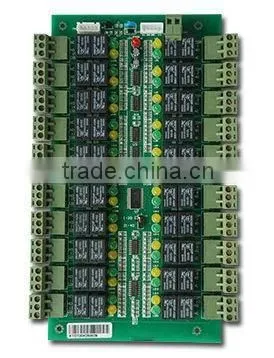

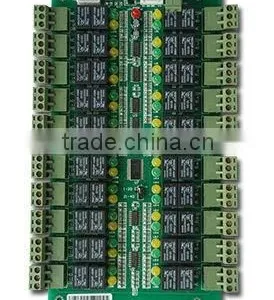

| ACB-EA05 | Access Board into Alarm Model |
| ES-150 | Electric Strike Lock |
| EB-13 | Stainless Steel Exit Push Button |
| PCD-103 | RF ID Card Reader with Keypad |
| Shipping |
|
1. FedEx/DHL/UPS/TNT for samples, Door-to-Door 2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving 3. Customers specifying freight forwarders or negotiable shipping methods! 4. Delivery Time: 1-2days for samples; 3-5days for batch goods if under USD 20.000 |
| Payment Terms |
|
1. Payment: T/T, Western Union,PayPal for trial order. 2. MOQ: 1 piece as start |
| 1.Warranty |
|
From the day of purchasing Crypton electronic products (in formal purchase invoice date, hereinafter referred to as: the purchasing date) , Crypton electronic offer you free warranty (ACB series control board,UHF long range card reader, within 2year quality guarantee.RFID card reader, exit push button,magnetic lock,bolt lock, strike lock, standalone access controller ,access power supply etc warranty period is 1 years, There will be labour and parts cost charged if the warranty period is expired; If the product need to be renovated, there will be labour cost and handling cost in cured |
| 2.Hot line services |
|
If you have any product related technical problems when using Crypton electronic products, you are welcome to call our hot line at +86 755 29450011, Crypton electronic engineers and product designers will answer all the related questions. At the same time, you also can go to our official web site which provides the common problem settlement solutions. We will regularly put those customer common problems settlement solutions into the website for customer reference, there are general technical and non-technical problems will be included. |
| 3.Quick response |
|
In the product warranty period, if there is the equipment malfunction, since the official announcement day, Crypton electronic will be response to the customer request within 2hours at working days, and will solve the problem within two working days. If there is any special reason the product cannot be repaired, we will contact you to find out the solutions, if the products being out of the warranty period, there will be related service charges. Note: in the service process, because other accident causes the products cannot be according to the commitment as mentioned above, Crypton will contact you to find out the better solution.. |
| 4.After-sales service confirmation procedures |
|
Please prepare the corresponding purchase invoice, warranty certificate. If you can't provide above mentioned documents, the product of free warranty period will be calculated 30 days after ex-factory date. If you cannot provide any warranty certificate, Crypton electronic will check the the production date for provide better warranty service. After maintenance service, the products will continue to enjoy the original warranty. If the date of after maintenance to free warranty period is less than three months, Crypton electronic will extend the free warranty up to three months. At that time, you need to provide effective maintenance record. Please see this article below. |
|
5. Customers cannot enjoy “Crypton electronic standard warranty policy " situation Under the following situation, whether or not in the warranty period inside, customers will not enjoy the free warranty: - no Crypton electronic labeling or counterfeit Crypton electronic labeled. - product beyond the Crypton electronic warranty period. - being not according to specification, installation instruction, wrong installation, dis-mental without Guardianship and lead to malfunction. - due to the use of the non-Crypton electronic accessories and lead to malfunction. - because of accident and misused (including improper handling, extrusion, collision, scratches, high temperature, damp, input voltage or current discrepancy) lead to malfunction. - because of natural disasters and controllable matters - other issues being not related to product design, technology, manufacturing, quality problem and lead to malfunction. |
| 6.Accessories |
|
This commitment is only applicable to in China (except Hong Kong, Macau and Taiwan ) sales and purchase of Crypton electronic products. This commitment is only applicable to the purchasing date after Dec,2013 This warranty hot line may change, please go the this website for update information. Remarks: 1) Crypton electronic liability is limited to repair, replacement of defective products or product components. 2) Freight and maintenance costs are at the user’s cost in the maintenance period. 3) Maintenance lead time is 7 days after receiving maintenance request. |
| Why Choose Crypton & S4A? |
|
We are Alibaba Assessed 5 years Gold Supplier the 2nd branch is:S4A Electronic Co.Ltd. Doha-Qatar branch office.(name is Crypton) make the following warranty and service commitments: |
|
Products we could provide are below:
Access Control Board (for single door, double door and four door support TCP/IP and web based) Standalone access control (Easy to install and program without software) Fingerprint access control&time attendance (Easy to install and program with software and keep record) UHF long range card reader (5M or 15M or 20M are avaliable in the stock list)
Facial access control terminals (Face to open the door or do record)
Electromagnetic lock/Bolt lock/Strike lock
Exit push button/Access Power supply/RFID cards
RFID card reader (to work with access control board) S4A 6868 Facial Recognition Door Lock We are here waiting for your inquiries to configure. |
| Crypton Office wroking enviroment - Pictures show |
|
|

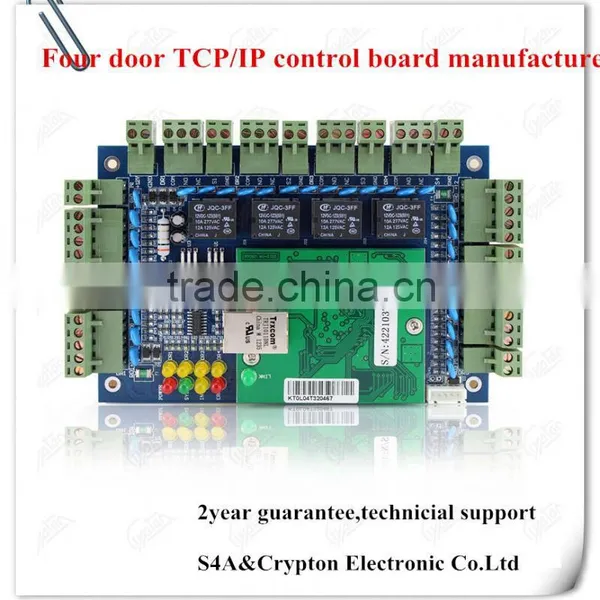

| FAQ Access Control board by TCP/IP Control 1 door, 2 door and 4 door. |
| |
| 1: What's Crypton access control board features and advantages? |
|
Answer: Our advantages: easy to install, easy to use, easy to upgrade, high stability and compatibility. You may find we don't have a lot of models, but all these models are Crypton's elite of 10 years experience in this industry. |
| 2: Can your software be translated into our local language? You know I have many customers who don't speak English. |
| Answer: For the time being we only have English and Chinese version. In future our software may be translated to other languages. We'll consider to include this into our next development plan. |
| 3: does your company has any guys to guide me how to use software and hardware? |
| Answers: Yes sure, any questions, we will reply it within 2 hours at working time. all issues and questions must be solved within 2days at non-working time. |

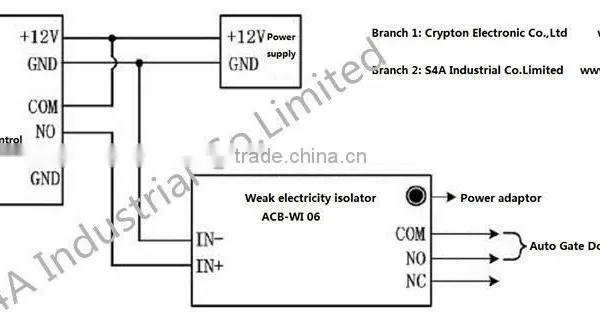

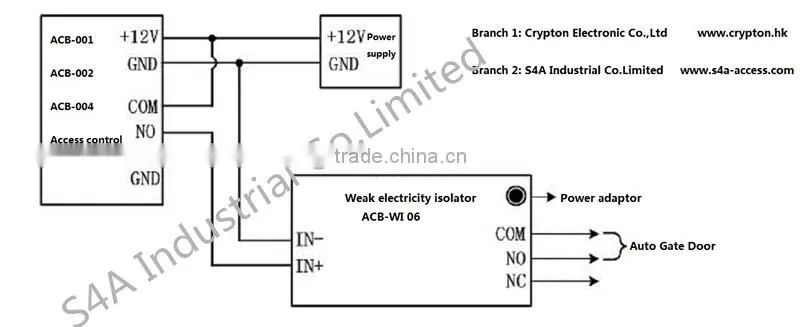

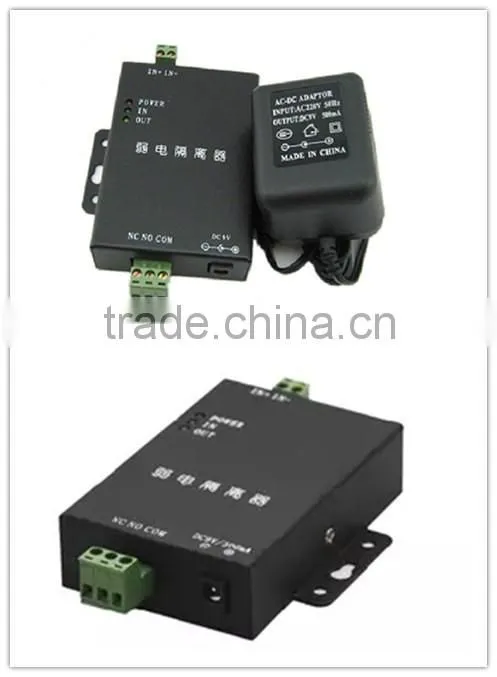

If i connect access control board with auto-gate door, electricity doorbell.Turnstile gate..
there will get hugh electricity..so must get something to work as weak electricity isolate.

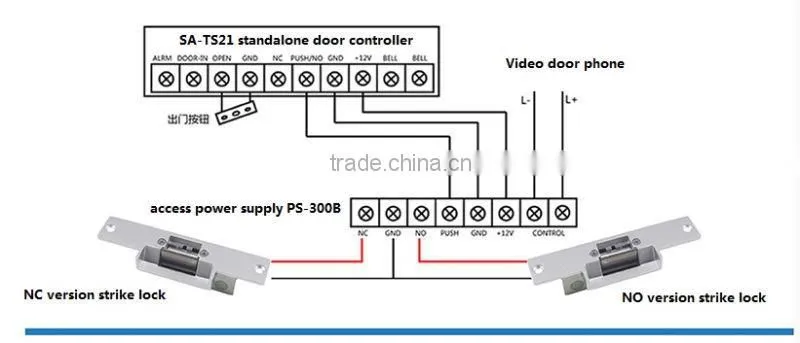

here is diagram and drawings, for more questions, better to send inquiry and contact us NOW!

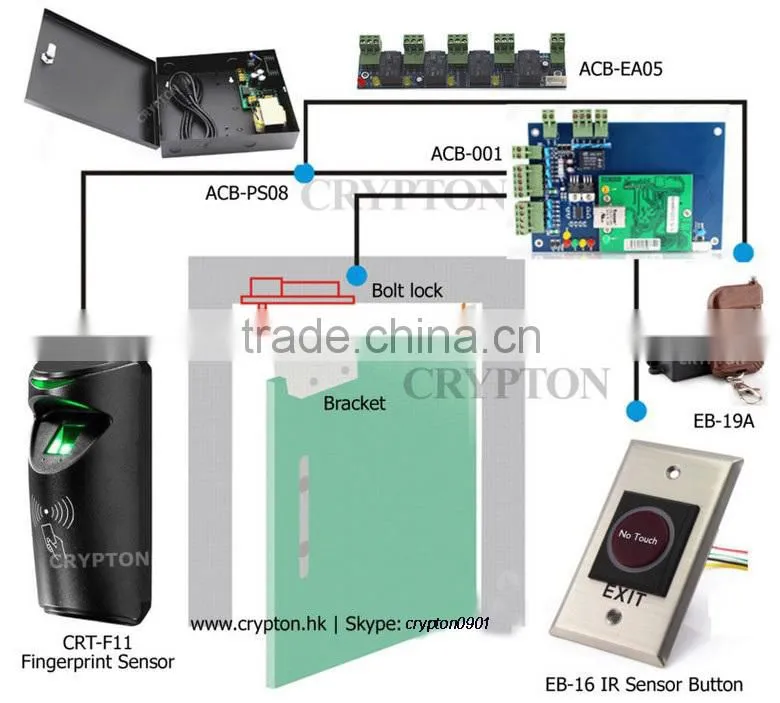

You know, when i connect your control board to card reader, door locks ,exit push button etc.
i don't know what's kind of wires do i need to make full systems working in a good way...
| Contruction wiring and Standard | |
1.The line of electric lock to controller, it’s recommended to use two-wire power line, the cross-sectional area of 1.0 mm2 or more. If over 50 meters, it’s considered to use more thick line or multiple parallel, the longest no more than 100 meters. | |
2.The line of card reader to controller, the cross-sectional area≥0.22mm2, CAT.5 or UTC are both applicable. If no need to identify the valid or invalid card by the feedback of sound and light, it can be without connecting BEEPER (blue) either LED (brown). | |
3.The line of button to controller, it’s recommend to use two-wire, the cross-sectional area 0.221mm2 or more. | |

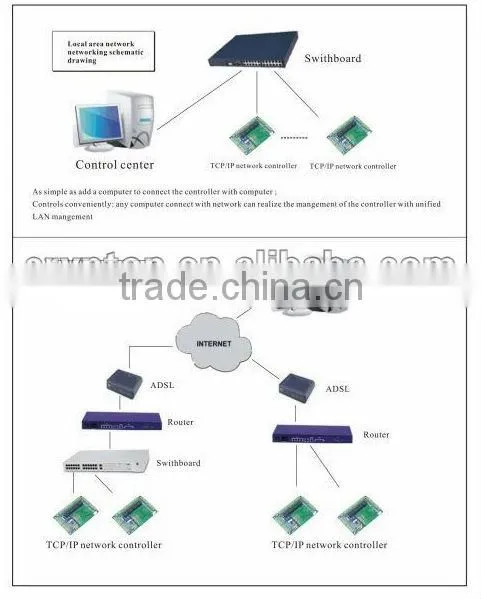

4.TCP/IP communication line: It’s the same with computer network wiring, controller connecting to switch or HUB with ordinary network cable, distance less than 100meters. The longer distance, the higher quality requirement of cable. | |
| 5. 220V AC power cable: three-wire power supply, the cross-sectional area 1.0mm2 or more. It’s required that power supply must be grounded to prevent from power interference. |
for any questions of rfid access controller, pls email back or call us now!
