Home > Security & Protection > Access Control System > Access Controller > Single Door Access Control Keypad

Single Door Access Control Keypad

Single Door Access Control Keypad photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Crypton Single Door Access Control Keypad
Model Number:
SA-208 Single Door Access Control Keypad
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen or HK for Single Door Access Control Keypad
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name Crypton Single Door Access Control Keypad
Model Number SA-208 Single Door Access Control Keypad

Single Door Access Control Keypad



SA-208



Capacity: 6,500 users

All programming can be done  via the keypad

Keypad with light

Wg26 or Wg34 format input interface for external reader



I. Features for SA-208 Single Door Access Control Keypad



1

Low power consumption: less than 30mA current

2

Luminous keyboard: the night can also operate keyboard

3

User capacity: support 6,500 users

4

Independent password: can use password which irrelevant with the card to open the door

5

User modification password: Users can revise the door password

6

Search speed: charge to open the door time less than 0.1 S.

7

Output short circuit protection: electric lock or alarm output circuit within 100   μS when shut down automatically output

8

Wiegand input: With Wiegand input interface,Wg26 card number or Wg4 buttons output

9

Support Using keyboard delete card number





II. Technical parameters for Single Door Access Control Keypad



Work Voltage

DC12V±10%

Static Current

≤30mA

Reading Range

3~8cm

Capacity

 6,500 users

Card Type

 EM Card

Ambient Temperature

-35°C~60°C

Ambient Humidity

10%~90%

Electricity lock output

≤3A

Alarm output

≤20A

Output short circuit protection time

≤100μS

Open time

0 ~ 99 seconds (adjustable)

Size

120mm*115mm*20mm

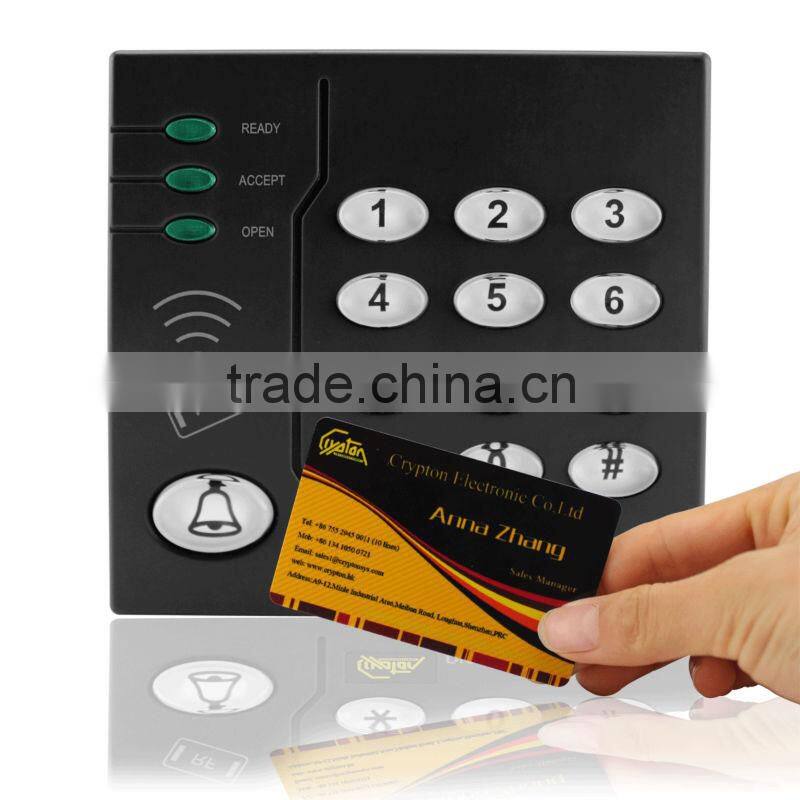

III. Picture for Single Door Access Control Keypad



Single Door Access Control Keypad





Single Door Access Control Keypad

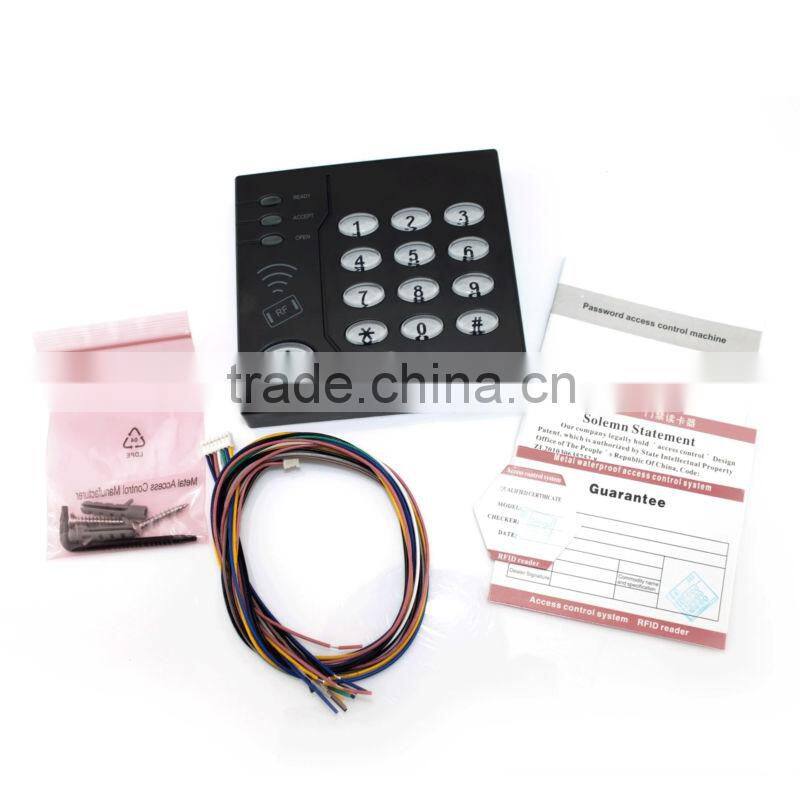

IV. Full complete sets for Single Door Access Control Keypad



Single Door Access Control Keypad

...
