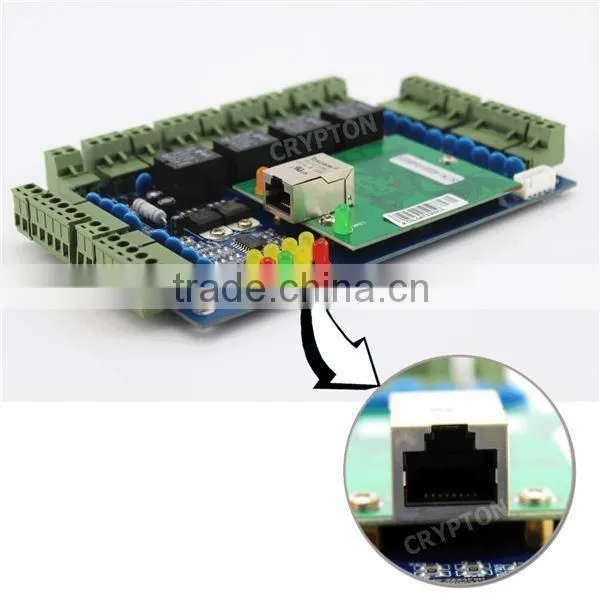

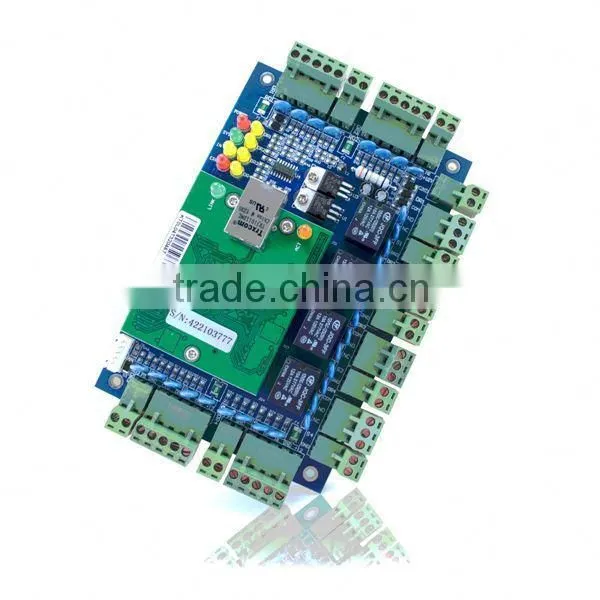

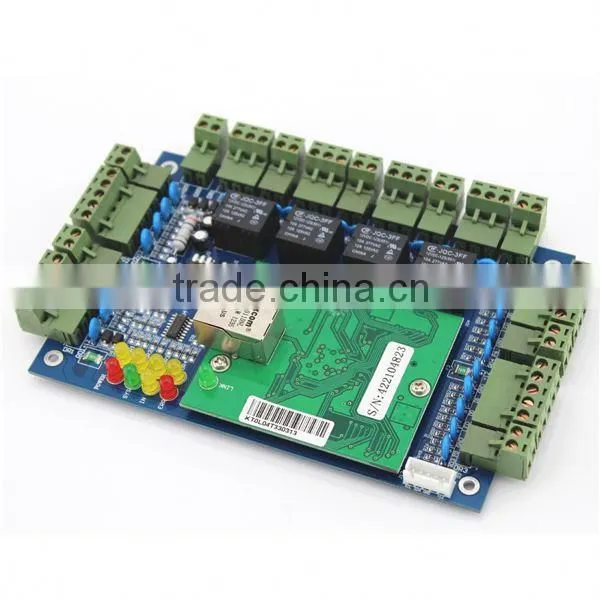

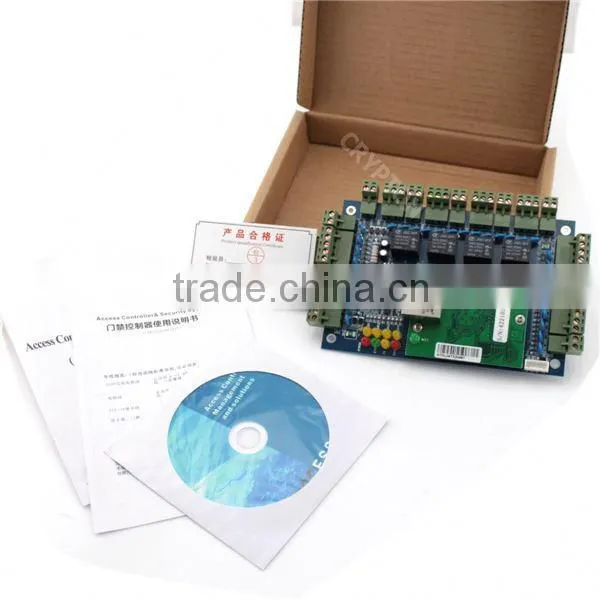

Crypton Provide 1 complete full-sets of 4 Door Access Control Board with TCP/IP + Web function as below:

1) ACB-T04 this is old version now,here now we are all changing to ACB-004..

The same functions as ACB-T04 also with upgrade PCD board / chip and lower price ( ACB-T04 will be stopped to produce within 1 year)..

ACB-004 control 4 door,with 4pcs Card Reader and 4pcs Exit Push Button.

ACB-T04 Four-Door Access Control Panel with TCP/IP communication control 4 door.

ACB-004 Four Door Access Control Board with TCP/IP and Web standalone function:

2) ACB-EA05 Enhanced Alarm Output and Integrated Fire Control Expanision Controller.with 4 pcs is okay...1 Board with 1 ACB-EA05:

3) Proximity Card Reader with keypad PCD-103:

4) RFID Cards and Keyfobs is available,We have ID thin card and ID thick card with Mango brand.

5) MCI-109 and PCD-122..this is USB Issuing Card Device,if total amount more than USD 3000..We will send it without charge.

6) Except these items,Crypton also Provide Magnetic lock,Bolt lock...

Normally Magnet lock is installed in Metal Door,Wooden Door.

Glass Door,recommend Bolt Lock.

Electric Magnetic lock:

Electric DeadBolt lock:

7) For all the system working,We have to connect to Access Power Supply,

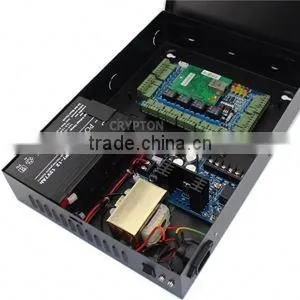

Recommend ACB-PS08A,this is 220V 5A with backup battery space and also we could install Access Control Board inside to protect it with key..

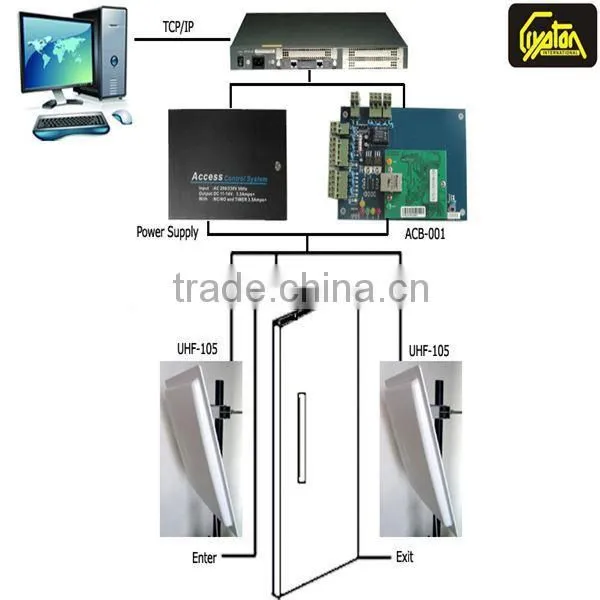

Last questions,How can we connect all above systems together and control it with 1 center PC..as below:

FAQ:

How to connect biometric device with crypton Access Control?

Now,Many customers get a problem that how to connect biometric device ( such as Finger Reader,Facial Device etc ) to controller and how to operate in the software.

Now,let's introduce how to connect Biometric Device with our Access Controller by examples as Finger Reader.

This solutions also suitable for how to connect Facial Recognition to controller.

Here is the solution:

1.Connect Fingerprint Card Reader with Access Control.

The default output of Fingerprint Reader is Wiegand 26 bit,so there has connection the cables with D0,D1,GND for access control.

Generally that is better to use the power supply with Fingerprint Reader,because of sometimes the controller will have not enough current flow to support Fingerprint Reader.

2.Operation between fingerprint card reader and access controller.

Only users registered on Finger Reader can output Wiegand 26 Bit,otherwise,can't...

Generally,the default Wiegand Output format is device NO.+ Register NO.then you can register card NO.in Access Controller software.

For example: The Fingerprint Device NO. is 1,and the User register NO. is 100,so the appeared No. is 100100 on the Access Control software,then you assign privilege to this user,finally the user registered on Fingerprint Card Reader can open the door..

There is two ways to see the Wiegand output format how to appeared on access controller software:

First one: click add by reader

Second one: click monitor

You can see the Fingerprint Wiegand output format on Access Controller software through these two ways.
