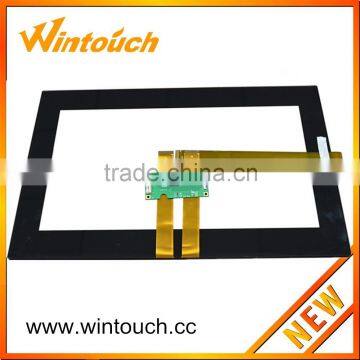

21.5" Capacitive Touch Screen Replacement for Touch Monitor with Free Drivers
1.We are one of the biggest manufacturer in China. Our products have been export to over 30 countries of the world.
2.Good material control to make sure all the material are high quality ,all the material we used are Rohns compliant
3.We can supply the good quanlity goods on the same price with our competior.
4.We can accept small quantity order and offer competitve price.
5.Our product’s quanlity is over and above our rival’s,and yet we are able to sell it at the same price.
Operation Principle:
Capacitive touch panel works through body’ current induction. When finger is on or close to touch
panel surface, due to body electric field, the user and touch panel surface forms one coupling capacitance. For high frequency current, capacitance is direct conductor, then fingers suck a small current from the contact point, through amplifying and accurately calculating this current signal, the controller works out the touch point position.
Main technical parameters:
Driving Voltage: 3.3V/5.0V DC Surface Hardness: 7H
Transmittance: Film to Glass >85% Working temperature: -10°C ~ +60°C
Glass to Glass >87% Storage Temperature: -20°C ~ +70°C
Resolution: 7680*5120 Operating Pressure: < 10g
Data Refreshing Rate: 60Hz
Glass Thickness:0.55mm,0.7mm,1.1mm,2.0mm 2.8mm
Multi-touch: a maximum of 10-point output at the same time available.
Glass Type: Common Glass, Tempered Glass
Performance and Features:
True multi-point operation, support 10 points touch.
Nearly zero operation force, makes users experience the true touch.
Extra long life time.
Specific body structure makes much higher transmittance and clarity.
Operation panel with glass material, makes product appearance more smooth and beautiful.

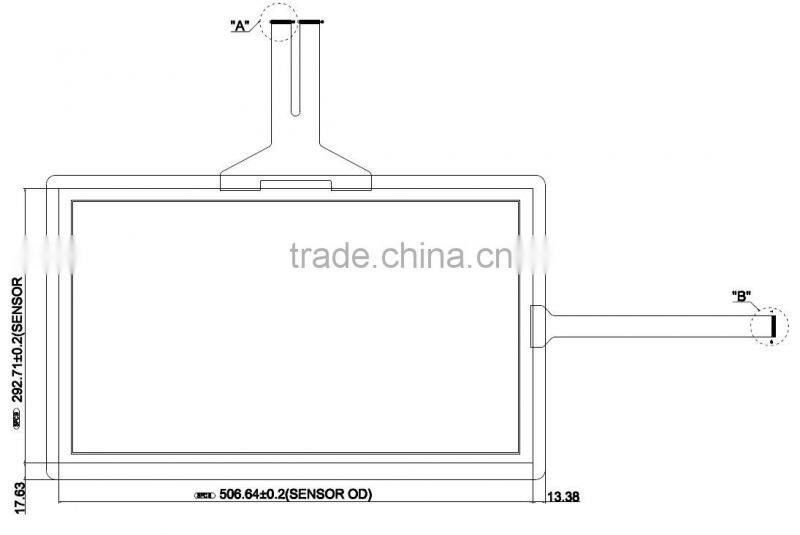

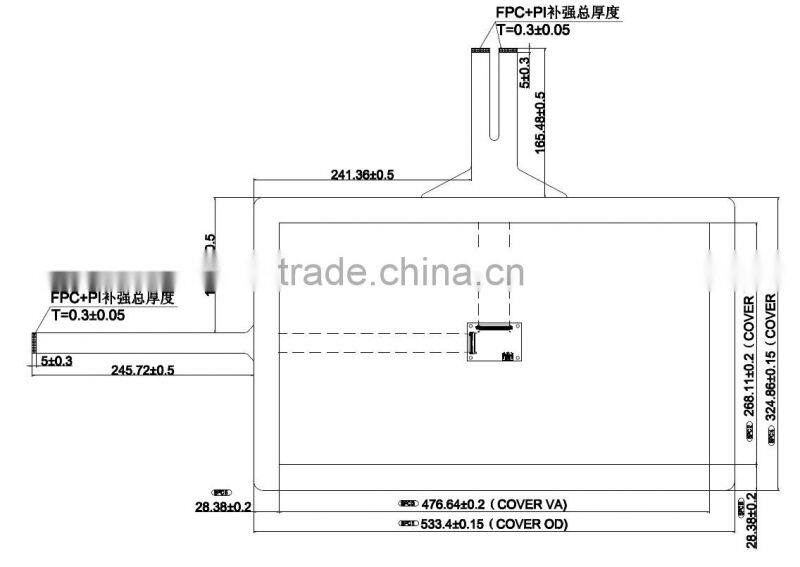

Product
| Item | Contents | Unit |
| Product Type | project capacitive touch panel | |
| Size | 32''(15'',15.6'',17'',19''18.5''21.5''23.6'',27''32'') | inch |
| Total thickness | 5.3±0.3 | mm |
| Panel appearance | 781.54*476.14±0.2 | mm |
| Outside dimension | 770*464*.6±0.3 | mm |
| Viewing area | 698.7*393.3±0.3 | mm |
| Active Area | 700.3*394.9±0.3 | mm |
| signal input | USB ,RS232 | |
| Resolution | 25PPi(Min) | |
| Optical Clarity | >83% | |
| Surface Hardness | ≥6H | |
| application | industrial area, office automation | |
| Structure | G+G |

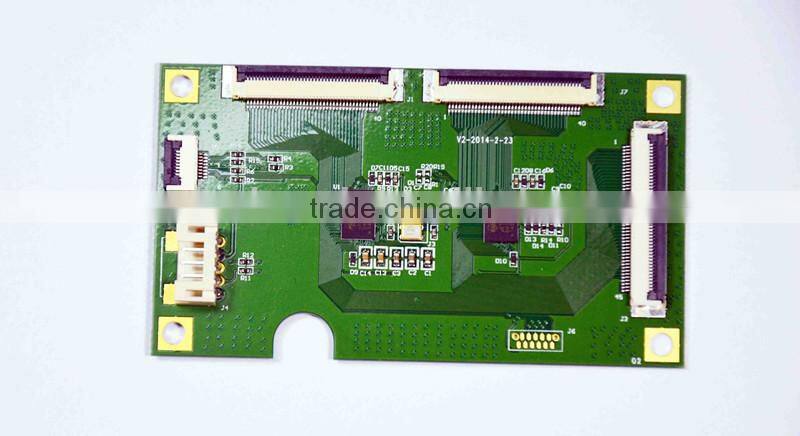

USB controller
Factory profile:
Shenzhen United Touch Tech Co.,LTD was established in 1999, is an intergrating development and production together electronic hi-tech company, specialize in manufacturing touch screen panel, touch screen monitor,touch screen kiosk, interactive digital signage,touch screen all in one , t wo wheel smart balance electric scooter and touch screen tablet.
1. All the Products are produced by Shenzhen United Touch Technology Co., Ltd?
Answer: Yes, we are the manufactuer and professional producing and assembling for many years
2. Lots of Customer say that They can buy the tablet and Touch Screen with Brand " WinTouch" abroad , Is that True?
Answer: Yes, we have the Brand " WinTouch" for all the products we are selling.
We are selling our products to the worldwide and have a great relationship with many agent who have cooperated with us.
Besides, we have a Branch Office in Dubai, UAE
Shenzhen United Touch Technology Co., Ltd.
If any enquiry welcome to contact me by email as follow:
