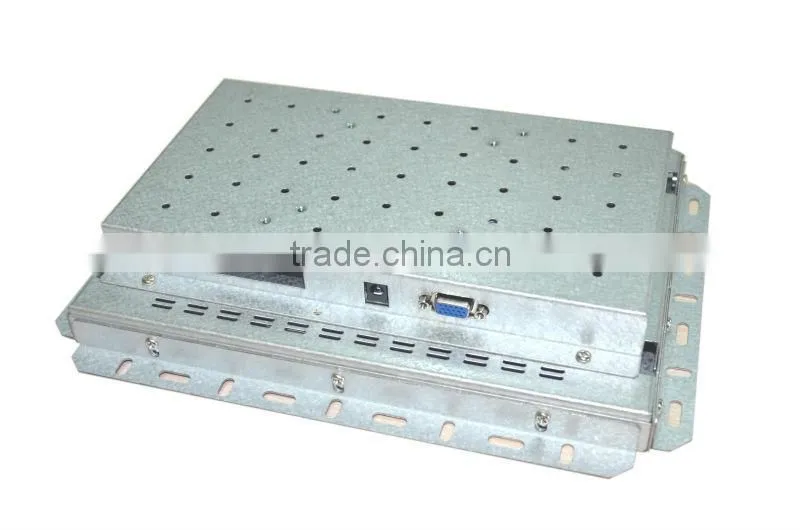

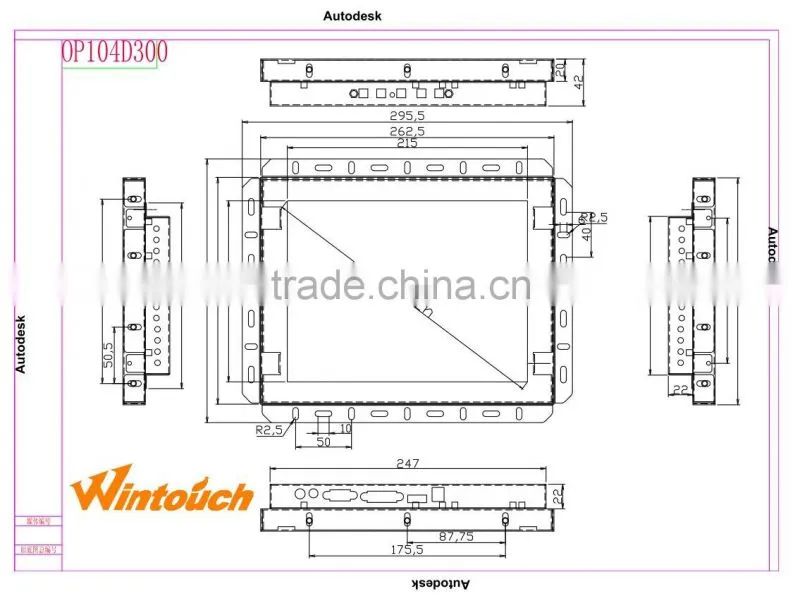

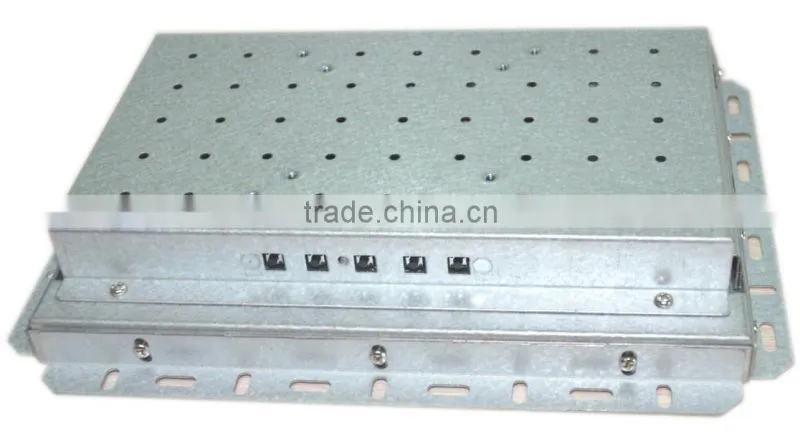

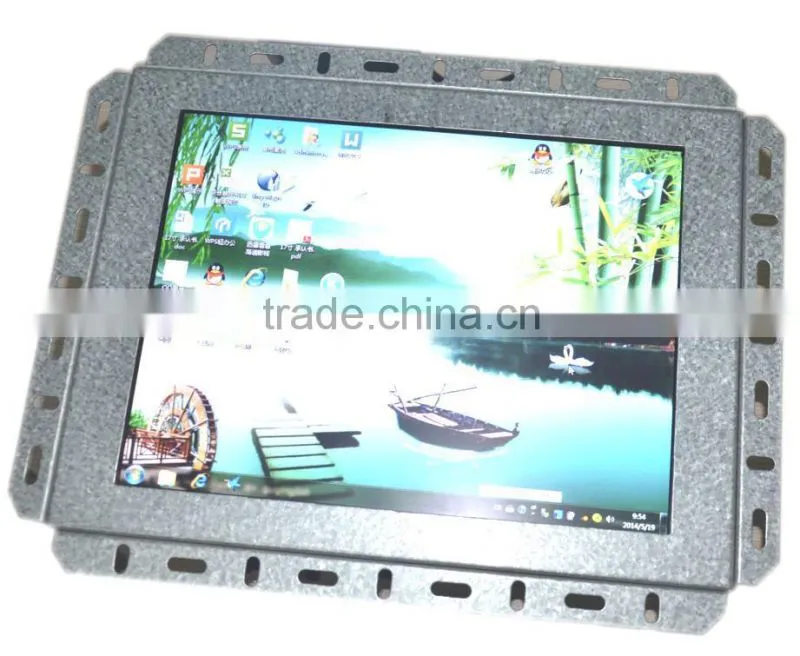

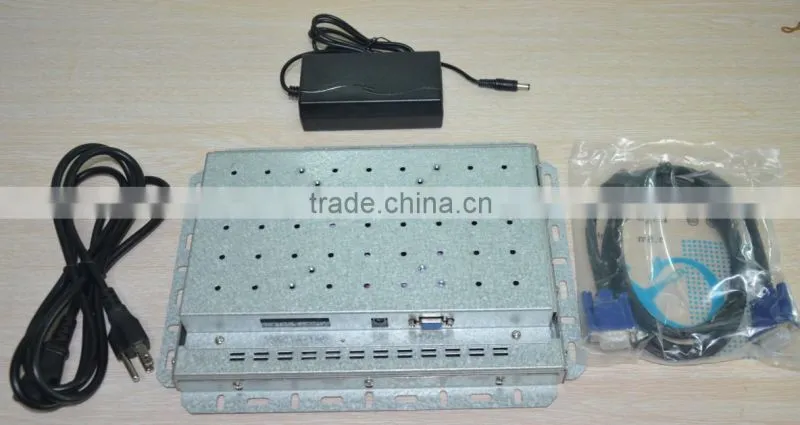

10.4inch open frame touch screen monitor use for KIOSK ATM industrial area
The Specifications of 10.4inch(4:3) OPEN FRAME with Resistive/SAW touch screen
| Name | WIN-OP10.4 open frame |
| Shell | Robust bracket |
| color | Multi-color optional |
| Touch Screen | 10.4" wintouch touch screen |
| Touch signal input(optional) | RS23(USB optional) |
| Touch sensibility | >3mm |
| Touch intensity | Over 60,000,000 touch |
| Screen ratio | 4:3 |
| Frenquency | 55Hz-75Hz |
| The maximum contrast ratio | 400:1 |
| Brightness | 300cd/m2 |
| Response time | ≤5ms |
| Viewing angle | (H)170 º (V)165º |
| Best Resolution | 800*600 or 640*480 |
| Singnai input(optional) | DVI,VGA(support CGA) |
| Power consumption | 25W |
| Power supply | Input AC110~240V/50~60Hz |
| Output | DC12V/4A |
| Operating system | Windows NT,XP,2000,98,Linus |
Deepending on your needs,the viewing angle ,resolution and brightness can be changed .
Operation Principle:
Capacitive touch panel works through body’ current induction. When finger is on or close to touch
panel surface, due to body electric field, the user and touch panel surface forms one coupling capacitance. For high frequency current, capacitance is direct conductor, then fingers suck a small current from the contact point, through amplifying and accurately calculating this current signal, the controller works out the touch point position.
Apply area
Factory profile:
Shenzhen United Touch Tech Co.,LTD was established in 1999, is an intergrating development and production together electronic hi-tech company, specialize in manufacturing touch screen panel, touch screen monitor,touch screen kiosk, interactive digital signage,touch screen all in one , t wo wheel smart balance electric scooter and touch screen tablet.
1. All the Products are produced by Shenzhen United Touch Technology Co., Ltd?
Answer: Yes, we are the manufactuer and professional producing and assembling for many years
2. Lots of Customer say that They can buy the tablet and Touch Screen with Brand " WinTouch" abroad , Is that True?
Answer: Yes, we have the Brand " WinTouch" for all the products we are selling.
We are selling our products to the worldwide and have a great relationship with many agent who have cooperated with us.
Besides, we have a Branch Office in Dubai, UAE
