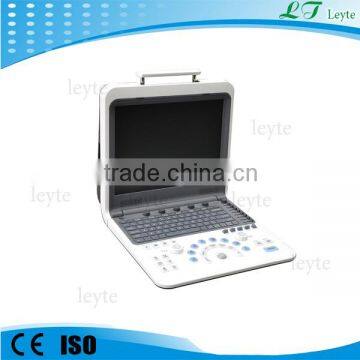

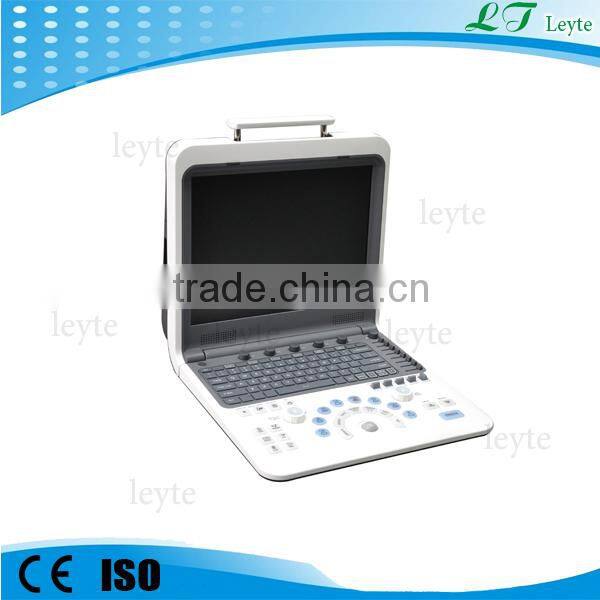

LT5100 Full-digital Portable Color Doppler Ultrasound Diagnostic System

CE available

An excellent HCU (Hand Carried Ultrasound) System

LT-5100 is a High-end Color Doppler HCU (Hand-Carried Ultrasound). Based on Our leading digital ultrasound technology,

LT-1500 offers superb 2D and premier doppler imaging modes such as CFM, CW, PW, CDE, CCD, HPRF. This flagship HCU can meet strictest requirements from cardiologists and it provides powerful image and data management including 4D imaging.

Features & Advantages:

Multi-application: abdomen, cardiology, OB/GYN, small parts, peripheral vessels, urology, rectum, pediatric, orthopedic, intra-operative ultrasound, ultrasound guided biopsy.

Continuous high-precision DBF

THI (Tissue Harmonic Imaging)

TDI (Tissue Doppler Imaging)

Auto IMT

3D/4D

Panoramic Imaging

Parallel Scanning

Compound Imaging

Trapezoidal Imaging

PC Platform

Transducer: multi-frequency transducer series

Multi-language Interface: English, French, Spanish and Polish

Printing: all PC and video printers supported

ECG interface

Standard Configuration:

LT5100 main unit

15" high definition non-interlaced LCD monitor, special for medical imaging

Max. 3000-frames of Cine Loop

DICOM 3.0

Measurement & calculation software packages

Electronic convex array transducer:         CA3.5MHz/R50 (2.0-6.0MHz)

Electronic linear array transducer:           LA7.5MHz/L40 (5.0-10.0MHz)

4D volume transducer :                    CLA4.5MHz (2.5-6.5MHz)

Options:

Electronic linear array transducer:           LA7.5MHz/L50 (5.0-10.0MHz)

Electronic linear array transducer:           LA7.5MHz/L40 (6-14.0MHz)

Phased array transducer:                  PA2.5MHz (2.0-4.0MHz)

Electronic endocavity transducer:            EV6.5MHz/R10 (5.0-9.0MHz

Electronic micro-convex array transducer:    MC3.5MHz/R20 (2.0-6.0MHz)

Needle-guided brackets

Footswitch

Transducer Suitcase

Technical Specifications:

General Descriptions

Imaging mode: B

B/B

B+M

Steer M

Color M

CW

CFM

PW

PDI

CDE

CCD

HPRF

Gray scale:                  256

Transducer frequency:  2.0 ~ 10MHz

Transducer connector:  2

Imaging Technology:   Continuous High-precision Digital Beam-former

  Dynamic Frequency Integration Imaging

High-precision Dynamic Receiving Focus

Super Wide-band Imaging Technology

Self-adaptive Image Optimization Processing

Multi-beam Imaging

Automatic Flow Volume Analysis

Compound Imaging

Panoramic Imaging

Self-adaptive Vascular Imaging

Self-adaptive Doppler Imaging

THI (Tissue Harmonic Imaging)

TDI (Tissue Doppler Imaging)

Image Processing

Pre-processing:8-segment TGC

gross gain

dynamic range

gray map

smooth

acoustic power adjustment

scanning angle selection

Post-processing:         edge enhancement

frame correlation

line correlation

γ-correction

                         contrast

                     brightness

Measurement & Calculation

B-mode:                         distance, circumference, area, volume, angle, residual urine volume, histogram, profile

M-mode:                      distance, time, velocity, heart rate

D-mode:                         doppler blood flow measurement, velocity, acceleration, pressure gradient, time, VI, PI, RI, etc

Software packages:

Carotid:               IMT (Intima-media thickness) measurement

GYN                  uterus, endometrium, ovary, cervix, ovarian follicle

OB                   GS, CRL, LV, BPD, OFD, HC, TAD, LVW, HW, TCD, IOD, OOD, BD, APTD, TTD, AC, APD, FTA, HL, ULNA, FL, FIB, CLAV, etc

Cardiac               TEI Index, Editable Cardiac report, PISA, M. Simpson, B-EF,M-EF(Pombo,Gibson,Teichholz), Diameter Function, PV flow, AV-Area, B-LV/Ao,M-LV/Ao, MV Regurg, customized annotation etc

Urology               volume of prostate, volume of bladder, volume of urine, volume of trans zone, HipJ.Angle(hip joint dislocation in neo-natal and babies),slice v, etc

Small Parts and Peripheral Vessels

                      vascular cross-sectional area, heart rate, stroke volume, flow per unit time, Ejection Time, % stenosis, mean velocity of flow, RI, PI, etc.

NOTE: specifications subject to change without prior notice.
