Ophthalmology Slit Lamp，Digital Slit Lamp

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	JK		Place of Origin	China
Model Number	BL-88/88A/88T		Type	Other

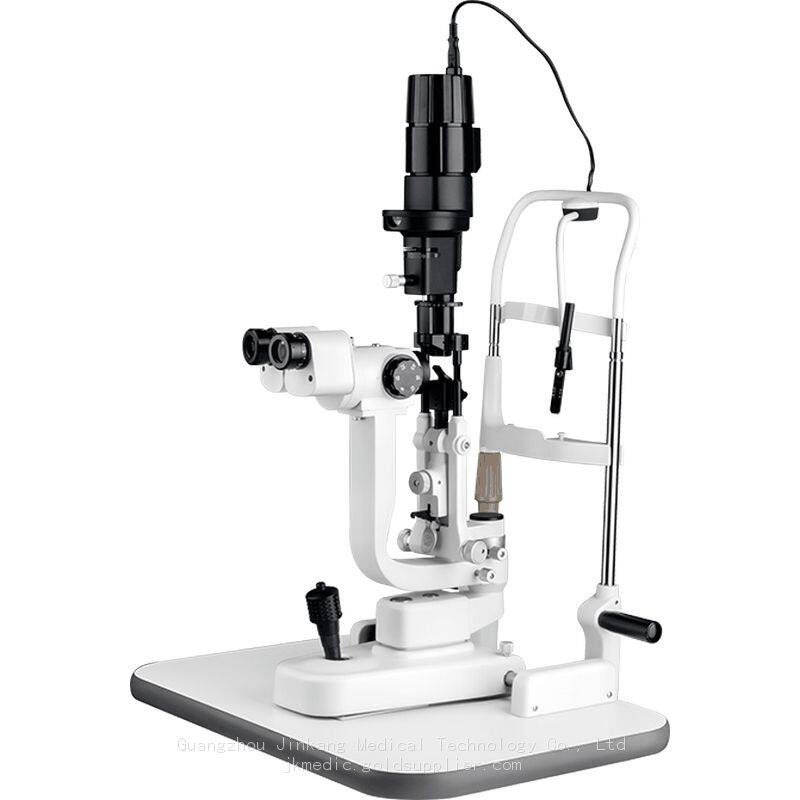

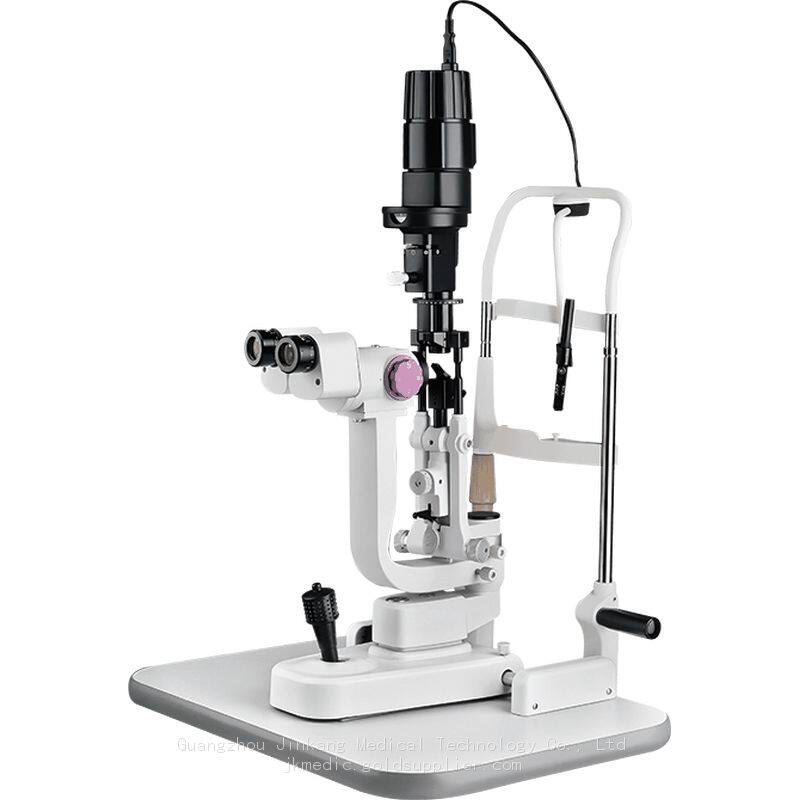

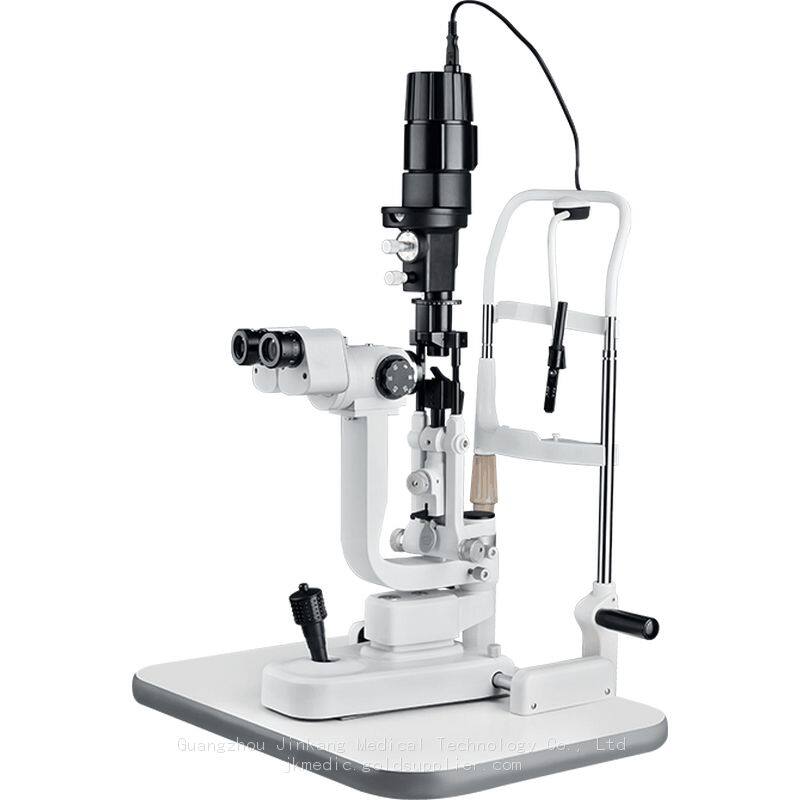

Ophthalmology Slit Lamp，Digital Slit lamp

Technical Parameters

Microscope	Microscope Type	Galilean stereoscopic microscope
	Magnification selection	5 steps by drum rotation
	Eyepiece	12.5X
	Magnification Ratio(Field of view)	6X（33mm）, 10X（22.5mm）, 16X（14mm）, 25X（8.8mm）,40X（5.5mm）
	Pupillary Adjustment	50mm ~ 82mm
	Diopter Adjustment	+ - 7D
Base	Side Shift	110mm
	Depth shift	90mm
	Height shift	30mm
Chin rest	Height Shift	80mm
Chin rest	Fixation Target	Red LED
Illumination system	Slit Width	0 ~ 14mm Continuous ( at 14mm , slit becomes a circle )
	Slit Height	0 ~ 14mm Continuous
	Slit Angle	0° ~ 180° adjustable
	Slit Inclination	5º, 10º, 15º ,20º
	Diameter of Light Spot	Ø14mm, Ø10mm , Ø5mm, Ø3mm, Ø2mm, Ø1mm, Ø0.2mm and 1 ~ 14mm Continuous
	Filter	Heat Absorption , Grey ,Red-Free , Cobalt Blue
	Illumination Bulb	12v 50w halogen lamp
Power	Input Voltage	110V / 220V AC
	Frequency	50 / 60 HZ
	Power Consumption	68 VA
Weight and Size	Gross Weight	18kg
Weight and Size	Dimension	690mm(L) × 440mm(W) × 420mm (H)

Technical Parameters

Microscope	Microscope Type	Galilean stereoscopic microscope
	Magnification selection	5 steps by drum rotation
	Eyepiece	12.5X
	Magnification Ratio(Field of view)	6X（33mm）, 10X（22.5mm）, 16X（14mm）, 25X（8.8mm）,40X（5.5mm）
	Pupillary Adjustment	50mm ~ 82mm
	Diopter Adjustment	+ - 7D
Base	Side Shift	110mm
	Depth shift	90mm
	Height shift	30mm
Chin rest	Height Shift	80mm
Chin rest	Fixation Target	Red LED
Illumination system	Slit Width	0 ~ 14mm Continuous ( at 14mm , slit becomes a circle )
	Slit Height	0 ~ 14mm Continuous
	Slit Angle	0° ~ 180° adjustable
	Slit Inclination	5º, 10º, 15º ,20º
	Diameter of Light Spot	Ø14mm, Ø10mm , Ø5mm, Ø3mm, Ø2mm, Ø1mm, Ø0.2mm and 1 ~ 14mm Continuous
	Filter	Heat Absorption, Grey, Red-Free, Cobalt, Blue, Green, Yellow, Red, Anti-UV
	Illumination Bulb	12v 50w halogen lamp
Power	Input Voltage	110V / 220V AC
	Frequency	50 / 60 HZ
	Power Consumption	68 VA
Weight and Size	Gross Weight	18kg
Weight and Size	Dimension	690mm(L) × 440mm(W) × 420mm (H)

Technical Parameters

Microscope	Microscope Type	Galilean stereoscopic microscope
	Magnification selection	3 steps by drum rotation
	Eyepiece	12.5X
	Magnification Ratio(Field of view)	10 X(22.5mm ), 16 X (14mm ), 25 X (8.8mm )
	Pupillary Adjustment	46mm ~ 85mm
	Diopter Adjustment	+ - 7D
Base	Side Shift	110mm
	Depth shift	90mm
	Height shift	30mm
Chin rest	Height Shift	80mm
Chin rest	Fixation Target	Red LED
Illumination system	Slit Width	0 ~ 14mm Continuous ( at 14mm , slit becomes a circle )
	Slit Height	0 ~ 14mm Continuous
	Slit Angle	0° ~ 180° adjustable
	Slit Inclination	5°、10°、15°、20°
	Diameter of Light Spot	Ø14mm, Ø10mm , Ø5mm, Ø3mm, Ø2mm, Ø1mm, Ø0.2mm and 1 ~ 14mm Continuous
	Filter	Heat Absorption , Grey ,Red-Free , Cobalt Blue
	Illumination Bulb	12v 50w halogen lamp
Power	Input Voltage	110V / 220V AC
	Frequency	50 / 60 HZ
	Power Consumption	68 VA
Weight and Size	Gross Weight	18kg
Weight and Size	Dimension	690mm(L) × 440mm(W) × 420mm (H)
