Specifications
Welded Mesh Machine1.Function:Producing mesh
2.Voltage:380v
3.Current:50Hz
4.Rated capacity:100KVA
Welded Mesh Machine
1.Introduction of Automatic Welded Wire Mesh Machine
1. This welding mesh machine is new model equipment designed by this company, can automatically welding the weft wire and warp wire together
2. This welding mesh machine adopts electrical & electronic synchronous control technique both separate-phase welding and welding time is composed of digital and integrated electric circuit.
3. It is easy to regulate the mesh hole and mesh opening size is rather accurate, welding aperture could adjust randomly with range. Not only welding speed is fast but also it is easy to learn and operate. Only two men can finish the operation.
4. The finished products can be in roll or in panel.
2.The Technical Parameters of Auto Welded Wire Mesh Machine :
Iterm |
WWM-A1 |
WWM-A2 |
WWM-B |
WWM-C |
Size of mesh (mm) |
6.35-12.7 (1/4"-1/2")
|
6.35-12.7 (1/4"-1/2")
|
12.7-101.6 (1/2"-4")
|
25.4-152.4 (1"-6") |
Width (mm) |
914.4-1219.2(12"-48")
|
1219.2-1.524(48"-60")
|
914.4-1219.2(12"-48")
|
1219.2-1524 -1828.8(48" 60" 72") |
Diameter of wire (mm) |
dia.0.45-dia.1.07 (BWG25-BWG19) |
dia.0.74-dia.1.07 (BWG22-BWG19) |
dia.0.63-dia.2(BWG25-BWG19) |
dia.1.07-dia.2 (BWG19-BWG14) |
Biggest rolled net size (m) |
120m (400') |
120m (400') |
120m (400') |
91.4m (300') |
Welding speed (mesh/minute) |
75 (radia)
|
48 (radia)
|
65 (radia)
|
45 (radia) |
Power |
380/220V |
380/220V |
380/220V |
380/220V |
Outside size measurement (mm) |
2350 x 1820 x 1700 |
3050 x 1900 x 1750 |
2600 x 1700 x 1350 |
3350 x 1800 x 1400 |

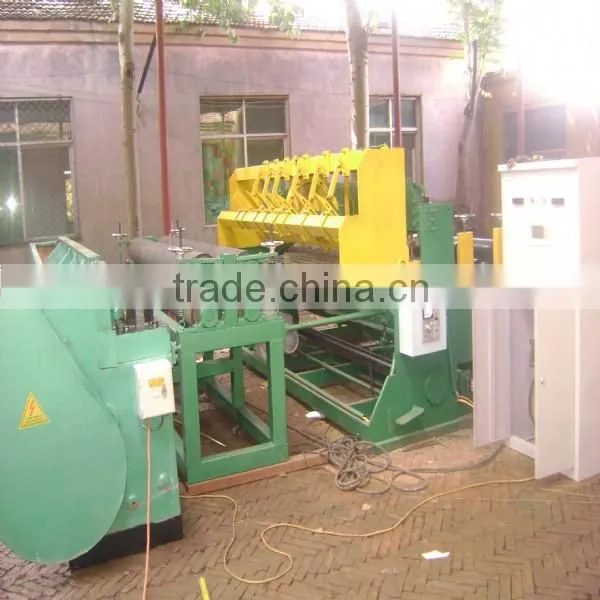

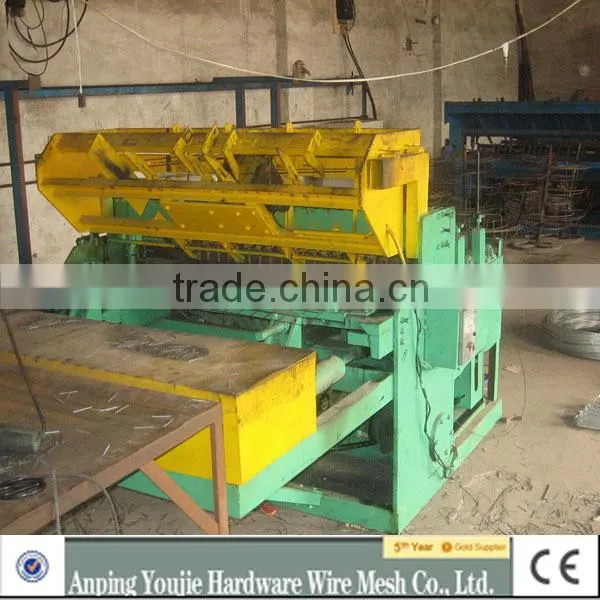

3. Welded Mesh Machine Pictures:
4.The Products that our machine Product:
About us :
“Anping Youjie Hardware Wire Mesh Co.,Ltd” is located in Anping County, where is the largest wire mesh distribution and production center of China.and enjoys the reputation of “Chinese Mesh and Netting County". Scientific, rigorous and trustworthy have accompanied by the growth of our corporation since it was founded over twenty years ago. And now “Youjie” has became an integrated enterprise with production, R&D, sales and trade.
We are the manufactory of the Welded wire Mesh Machine . Our goods have the high quantiy and reasonble price. Welcome the Visit us .
Our Factory:
