Aluminum Expanded Plate Mesh

Specifications

Aluminum Expanded Plate Mesh
ISO9001:2000
Wire gauge: 0.4-9mm
Opening Width 2.5mm-50mm
Length opening:4.5-100mm



Aluminum Expanded Plate Mesh



1. Aluminum Expanded Plate Mesh

2.Expanded metal

mesh can be made from a wide range of materials, chiefly expanded steel mesh, aluminum expanded metal mesh, expanded stainless steel, expanded nickel and other metal, as steel reinforcement materials in petroleum, chemical industry and building decorations. Thickness available is from 0.5mm to 8mm.
With years of experience, our company can produce high-quality expanded metal. We devote ourselves to providing you client with best service.

3.Material:

Carbon Steel,Galvanized Steel,Stainless Steel, Aluminum
4.Finishes:
*cleaning
*anodizing
*porcelain enamel
*painting, lacquering, plastic coating
*galvanizing

5.Advantages:
*Expanded metal permits free flow of light, heat, sound and air
*Cost effectively alternative to perforated metal. You don't pay for the holes; there is no waste during the expanding process
*Expanded metal won't ravel when cut, unlike woven wire
*Available in a variety of mesh configurations including diamond, square, round, hexagonal plus architectural and decorative   patterns
*Expanded metal is a formidable barrier when used in security applications
*Easily fabricated, finished, installed and formed
*It is strong and durable, with pleasing appearance in its shapes.

6.Specifications:

specifications				width (m)	length (m)	weight (kg/m2)
mesh thickness(mm)	distance short(mm)	distance long(mm)	strip(mm)
0.5	2.5	4.5	0.5	0.5	1	1.8
0.5	10	25	0.5	0.6	2	0.73
0.6	10	25	1	0.6	2	1
0.8	10	25	1	0.6	2	1.25
1	10	25	1.1	0.6	2	1.77
1	15	40	1.5	2	4	1.85
1.2	10	25	1.1	2	4	2.21
1.2	15	40	1.5	2	4	2.3
1.5	15	40	1.5	1.8	4	2.77
1.5	23	60	2.6	2	3.6	2.77
2	18	50	2.1	2	4	3.69
2	22	60	2.6	2	4	3.69
3	40	80	3.8	2	4	5.00
4	50	100	4	2	2	11.15
4.5	50	100	5	2	2.7	11.15
5	50	100	5	1.4	2.6	12.39
6	50	100	6	2	2.5	17.35
8	50	100	8	2	2.1	28.26

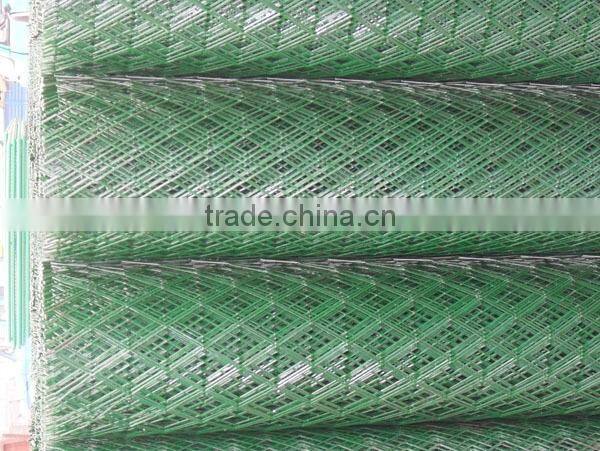

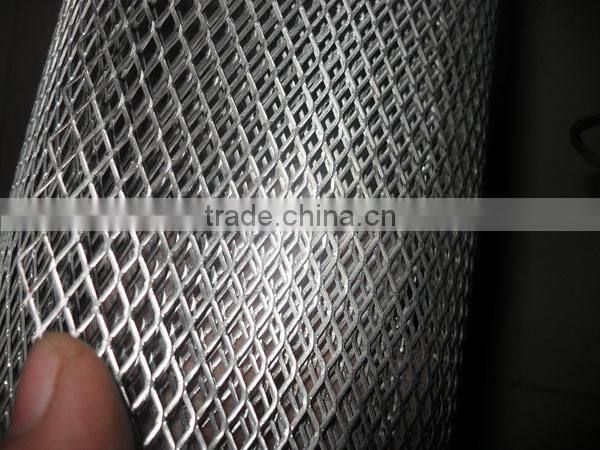

Aluminum Expanded Plate Mesh Pictures:



About us :

“Anping Youjie Hardware Wire Mesh Co.,Ltd” is located in Anping County, where is the largest wire mesh distribution and production center of China.and enjoys the reputation of “Chinese Mesh and Netting County". Scientific, rigorous and trustworthy have accompanied by the growth of our corporation since it was founded over twenty years ago. And now “Youjie” has became an integrated enterprise with production, R&D, sales and trade.

We are the manufactory of the Aluminum Expanded Plate Mesh. Our goods have the high quantiy and reasonble price. Welcome the Visit us .
