Specifications
Carrousel Foam Cutting Machine for Foam production:1.Rotary table can place multi blocks foam
2.Cutting thiner slices w

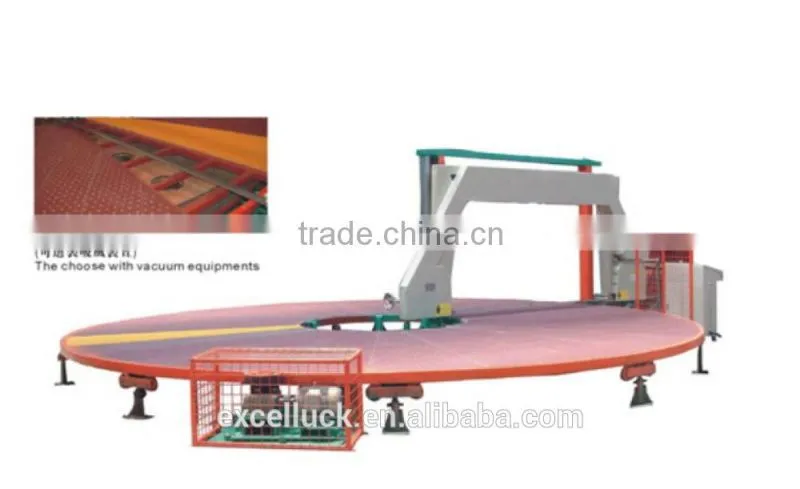

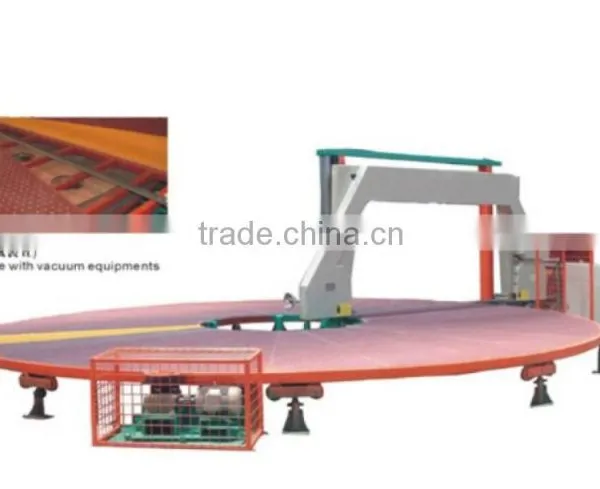

Carrousel Foam Cutting Machine for Foam production
Main description:
This machine can place many blocks foam on the worktable for cutting slices at the same time, adopt fully automatic digital control, and setting the number as need cutting thickness and foam density by control box. The worktable runs automatically. The turning speed of worktable is adjustable. Continuously cutting ,the production efficiency is very high ( worktable also choose adding to vacuum equipment).
Specifications:
Model |
EL-YP6 |
EL-YP7 |
Cutting sponge size |
L2000*W1500*H1200mm (4pcs) |
L2000*W1500*H1200mm (5pcs) L3000*W2000*H1200mm (4pcs) |
Cutting sponge thickness |
2-150mm |
2-150mm |
Worktable turning speed |
0-3.5r/min |
0-3.5r/min |
Worktable diamete |
Dia 6m |
Dia 7m |
Blade length |
8940mm |
10620mm |
Total power |
8.92kw |
8.92kw |
Machine external size |
L7000*W6500*H2500mm |
L7500*W7000*H2500mm |
Accessories |
5pcs of Blades,4pcs of Grinding Wheels |
5pcs of Blades,4pcs of Grinding Wheels |
1.The motor of this machine is imported from Taiwan.
2.The bearing is imported from NSK.
3.The table board is aluminium plate,not aluminium-plastic panel.
4.There is almost no noise of this machine while operating.
Payment:30% by TT,70%before shipment.
Delivery time: up to your order quantity.
