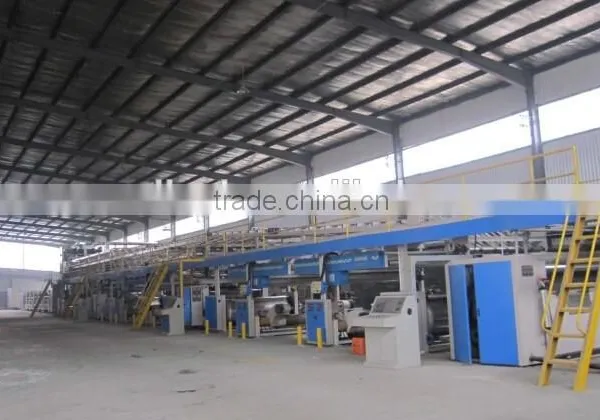

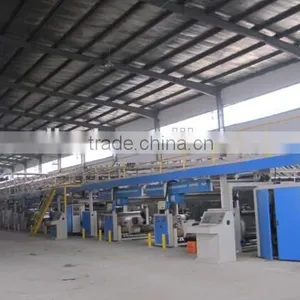

7 plys Corrugated cardboard production line
- 1 Set / Sets per Month
- Tianjin
- Credit Card
- Toilet Paper Cutter/Kitchen Towel Cutting Machine Price with High Performance
- High Capacity 3200mm A3 A4 Paper Writing Paper Recycling Machine, Office Paper Product Machinery for Sale
- Best Price 3200 Model Office Paper Copy Paper Manufacturing Line with Good Reputation
- Henan Toilet Tissue Paper Cutter/Cutting Machine with High Quality
- 1880mm Type Napkin Paper Making Machine Made in China
- Manufacturer Supply1575mm Napkin Paper/Tissue Paper Manufacturing Machine
Product Details
Condition: | New | Place of Origin: | Hebei, China | Brand Name: | EL |
Model Number: | EL-WJ-1502 | Certification: | Other | Warranty: | 1 year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Note: The roll paper which is used to test the production speed should meet following requirements:(the surface temperature of equipment should no less than 172°C)
*Grade: Min. B * Moisture content:11% ± 2%
*Face paper: 100~250g/m2 * Liner paper:100~250g/m2
*Corrugated paper: 100~180g/m2
4,Flute profiles: A,C, B, E, or according to client`s requirements
5,Steam requirements:
Steam quantity: 2000-3000Kg/Hr
Normal pressure: 0.8-1.1MPa
6,Electricity: 380V 50Hz three-phase, or four phase
7,Total power:about 250KW Practical power cost:about130KW(full speed).
8,The space of equipment:about 72mx10mx5m (according to the foundation drawing).
9,Equipment Direction:Left or Right transmission will be according to client`s workshop.
10,Equipment suitability: kraft paper A,B,C native paper or imported kraft paper.
Including:

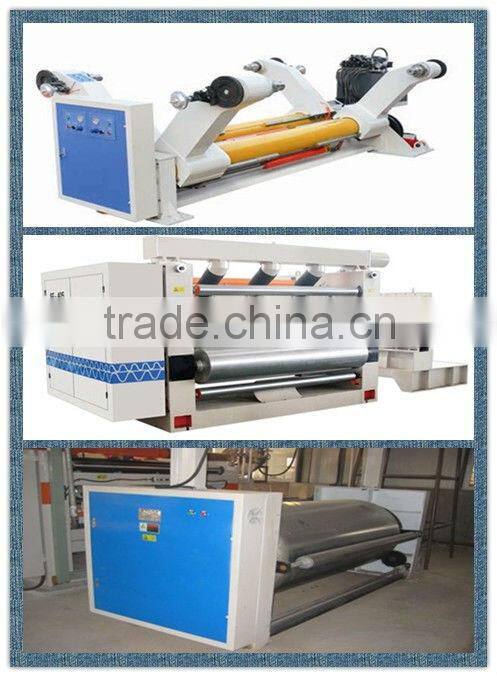

Hydraulic shaftless mill roll stand,
Surface(core) paper preheater
adsorption single machine
conveyor bridge

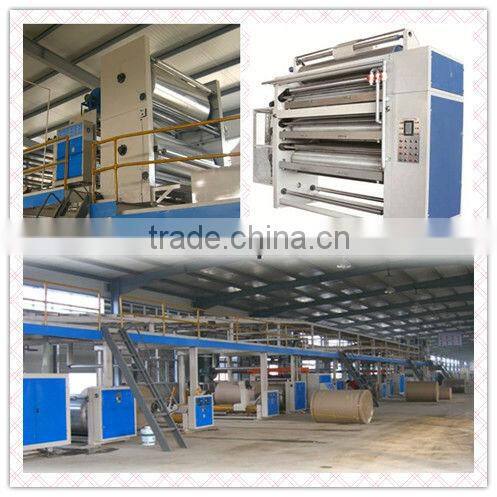

Tri-layer preheater
double glue machine
Double Facer

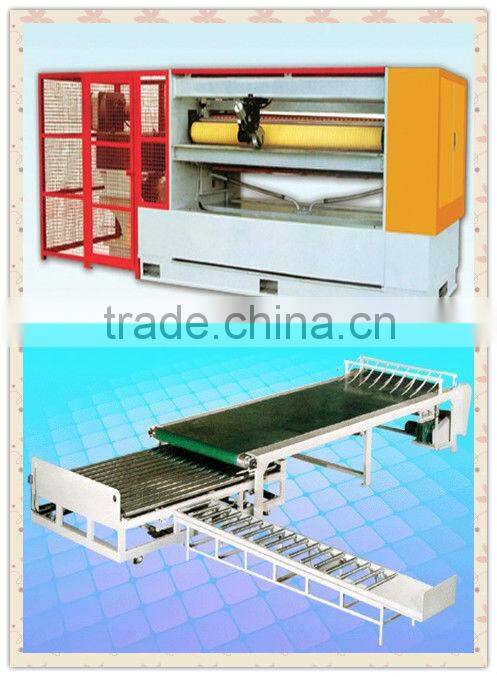

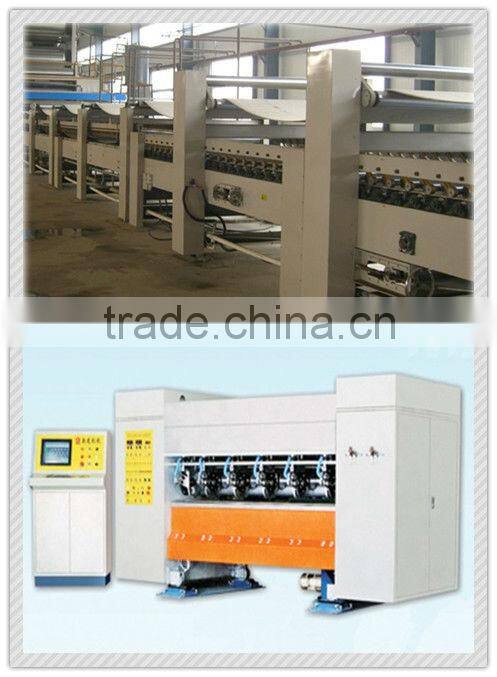

NC Thin blade slitter scorer
computer helix knife crosscut machine
Right angle stacker
Glue making station system

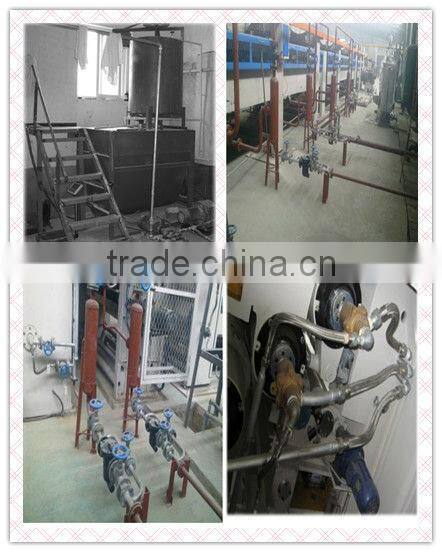

Steam system
