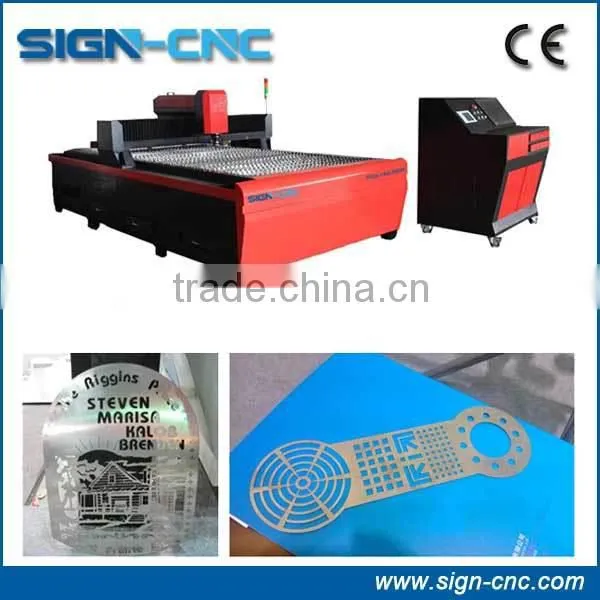

Help CenterSIGN CNC Yag 500w Cutter Machine Cnc Metal Laser Cutting Machine
Related Products
-
SIGN CNC Yag 500w Cutter Machine Yag Metal Laser Cutting MachineUS$ 46,000 - 58,000MOQ: 1 Set -
SIGN CNC Yag 500w Metal Cutting LaserUS$ 46,000 - 58,000MOQ: 1 Set
-
SIGN CNC Yag 500w Laser Cutting Machine for MetalUS$ 46,000 - 58,000MOQ: 1 Set
-
SIGN CNC YAG- 500W Metal Laser Cutting Machine for 8mm With High Speed in ChinaUS$ 46,000 - 58,000MOQ: 1 Set
-
SIGN CNC Yag Laser Cutting Machine 500w for Metal Cutting With High SpeedUS$ 46,000 - 58,000MOQ: 1 Set
Specifications
cnc metal laser cutting machine1 Automatic focusing laser head
2 Panisonic servo Motor
3 Ballscrew transmission
cnc metal laser cutting machine
Features
1. Stable structure: the cutting machine adopts gantry structure and high-strength cast aluminum alloy in X-Axis beam
2. High-performance transmission system: this laser cutting machine uses Japanese Panasonic servo motors and Taiwan HIWIN ball-screw
3. Advanced laser generator: the laser generator can make small cutting line and has high precision
4. Highly sensitive cutting head: the laser cutting head is the brand of "laser mech" which is imported from USA
5. Powerful control system
Applications

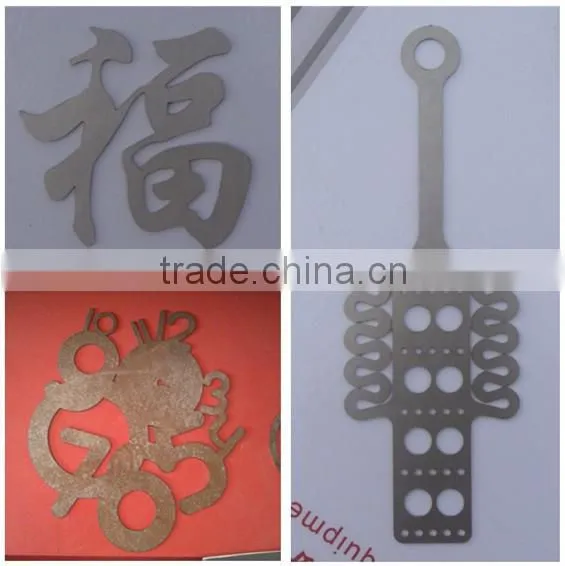

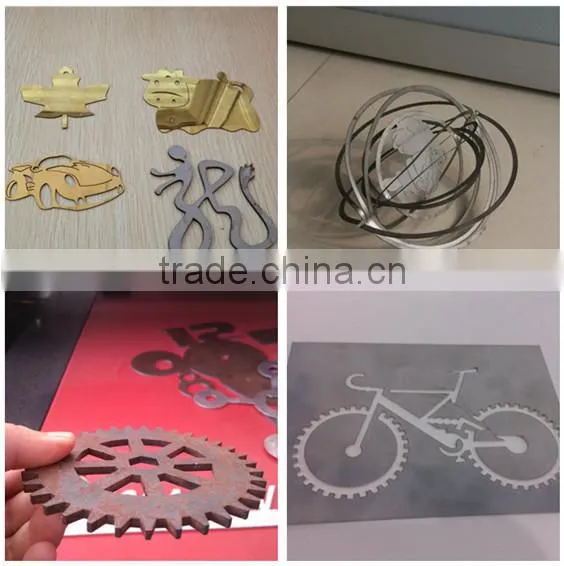

Stainless steel, carbon steel, brass, aluminum, and other metal precise cutting, suitable for aerospace technology, plane, rocket, robot, elevator,
steamship and automobile manufacturing and metal parts processing industry for metal plate, advertisement, kitchen ware, bit tool and hardware etc.
Technical Parameters
NO. |
Model |
SIGN-1325 |
1 |
Working area |
1300x2500mm |
2 |
Laser medium |
YAG |
3 |
Laser power |
500W |
4 |
Laser wave length |
1064nm |
5 |
Laser pulse frequency |
0.1-500Hz |
6 |
Width of pulse |
0.2- 20ms |
7 |
Min line width |
≤0.15mm |
8 |
Positon accuracy |
0.03mm/m |
9 |
Repetition accuracy |
0.02mm/m |
10 |
Focus method |
Following and automatic adjust focus |
11 |
Guide rail |
Hiwin from Taiwan |
12 |
Transmission method |
Ball screw from Germany |
13 |
Drive system |
Servo motor and drivers |
14 |
Cooling system |
7p water chiller |
15 |
Control software |
Software of RF Laser |
16 |
Graphic format support |
BMP,HPGL,PLT,DST and AL,etc |
17 |
Working environment |
Temperature:0-45°C, |
18 |
Equipment power |
0-20kw |
19 |
Power supply |
380v/50Hz |
Advantage
Compared with traditional way of metal cutting, laser cutting has the following advantages:
1) Laser Cutting surface is smooth and less dross. The maximum thickness is up to 8mm.
2) Stainless steel below 5mm and mild steel below 7mm can use air to laser cut. Good cutting effect, maximizing reducing use-cost.
3) Dynamic focusing system. When laser cutting different thickness metal sheets and uneven materials, adjusting focus is not required, which can greatly improve working efficiency.
Machine Parts
After Sale Service
1.One year warranty for the YAG laser metal cutting machine
2.7-15 working days to process the machine after received your prepay.
3.Within 24 hours to solve your after sale problems
4.Support technical teach, if youdo not know how to operate the machine, we will send the technician to teach you buy MSN or skype until you can operate it freely.
FAQ
1.Which one should I use for metal ? YAG or Fiber?
Most metals are highly reflective and therefore, an Nd:YAG or Fiber laser would be most suited. The wavelength being much shorter means there will be less reflection of the beam on the surface, therefore less loss of energy and consequently easier working of the metal. The metal absorbs more of the light energy that changes its physical properties.
2.What difference does this make?
These wavelengths determine which laser should be used for each application, as the material to be marked will have different absorption capabilities (of the light at different wavelengths). If a material can absorb the light, then it can be affected by it.

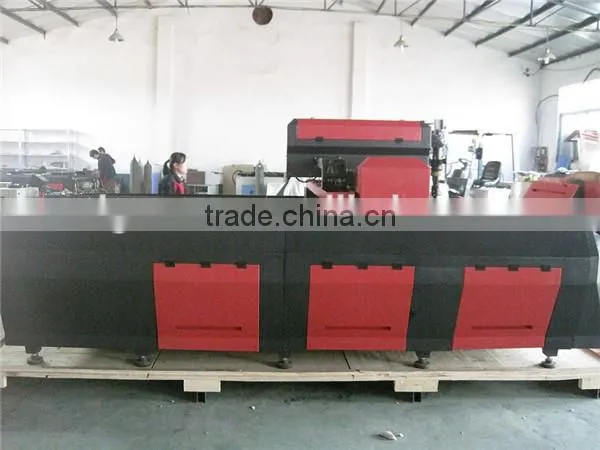

Packaging Parts
