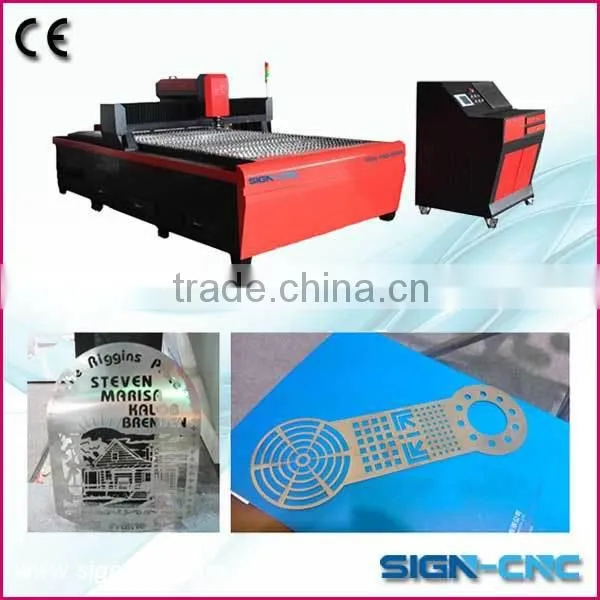

SIGN CNC Yag laser cutting machine 500w for metal cutting with high speed

Specifications

Yag laser cutting machine
1 Automatic focusing laser head
2 Panisonic servo Motor
3 Ballscrew transmission
4 Max: 8mm st





yag laser cutting machine

Features



1. Stable structure: the cutting machine adopts gantry structure and high-strength cast aluminum alloy in X-Axis beam



2. High-performance transmission system: this laser cutting machine uses Japanese Panasonic servo motors and Taiwan HIWIN ball-screw



3. Advanced laser generator: the laser generator can make small cutting line and has high precision



4. Highly sensitive cutting head: the laser cutting head is the brand of "laser mech" which is imported from USA



5. Powerful control system



Applications



Stainless steel, carbon steel, brass, aluminum, and other metal precise cutting, suitable for aerospace technology, plane, rocket, robot, elevator,



steamship and automobile manufacturing and metal parts processing industry for metal plate, advertisement, kitchen ware, bit tool and hardware etc.



Technical Parameters

NO.	Model	SIGN-1325
1	Working area	1300x2500mm
2	Laser medium	YAG
3	Laser power	500W
4	Laser wave length	1064nm
5	Laser pulse frequency	0.1-500Hz
6	Width of pulse	0.2- 20ms
7	Min line width	≤0.15mm
8	Positon accuracy	0.03mm/m
9	Repetition accuracy	0.02mm/m
10	Focus method	Following and automatic adjust focus
11	Guide rail	Hiwin from Taiwan
12	Transmission method	Ball screw from Germany
13	Drive system	Servo motor and drivers
14	Cooling system	7p water chiller
15	Control software	Software of RF Laser
16	Graphic format support	BMP,HPGL,PLT,DST and AL,etc
17	Working environment	Temperature:0-45°C,
18	Equipment power	0-20kw
19	Power supply	380v/50Hz

Advantage



Compared with traditional way of metal cutting, laser cutting has the following advantages:



1) Laser Cutting surface is smooth and less dross. The maximum thickness is up to 8mm.



 2) Stainless steel below 5mm and mild steel below 7mm can use air to laser cut. Good cutting effect, maximizing reducing use-cost.

3) Dynamic focusing system. When laser cutting different thickness metal sheets and uneven materials, adjusting focus is not required, which can greatly improve working efficiency.



Machine Parts





After Sale Service

1.One year warranty for the YAG laser metal cutting machine



2.7-15 working days to process the machine after received your prepay.



3.Within 24 hours to solve your after sale problems



4.Support technical teach, if youdo not know how to operate the machine, we will send the technician to teach you buy MSN or skype until you can operate it freely.





FAQ

1.Which one should I use for metal ? YAG or Fiber?

Most metals are highly reflective and therefore, an Nd:YAG or Fiber laser would be most suited. The wavelength being much shorter means there will be less reflection of the beam on the surface, therefore less loss of energy and consequently easier working of the metal. The metal absorbs more of the light energy that changes its physical properties.



2.What difference does this make?

These wavelengths determine which laser should be used for each application, as the material to be marked will have different absorption capabilities (of the light at different wavelengths). If a material can absorb the light, then it can be affected by it.
