Help CenterChina Manufacturer Ball Screw 1325 SIGN CNC Laser Cutting Machine Metal
Related Products
-
SIGN CNC Yag 500w Cutter Machine Cnc Metal Laser Cutting MachineUS$ 46,000 - 58,000MOQ: 1 Set -
SIGN CNC Yag 500w Cutter Machine Yag Metal Laser Cutting MachineUS$ 46,000 - 58,000MOQ: 1 Set
-
SIGN CNC Yag 500w Metal Cutting LaserUS$ 46,000 - 58,000MOQ: 1 Set
-
SIGN CNC Yag 500w Laser Cutting Machine for MetalUS$ 46,000 - 58,000MOQ: 1 Set
-
SIGN CNC YAG- 500W Metal Laser Cutting Machine for 8mm With High Speed in ChinaUS$ 46,000 - 58,000MOQ: 1 Set
Specifications
laser cutting machine metal1.ball screw transmission
2.gantry structure
3.precision
laser cutting machine metal
Features
1.America imported Auto focus laser cutting head, can cut metal plate which are not flat with sensor, gurantee good cutting apperence:
2.Japanese Pansonic Servo motor, with Taiwan ballscrew,gurantee good cutting speed and precision:
3.7P water Chiller improve machine processing lifetime and long time process safty, big chiller make the machine work long time
Appliable industries:
stainless steel, carbon steel, brass, aluminum, and other metal materials precise cutting, suitable for aerospace technology,
rocket, plane, robot, elevator, steamship and automobile manufacturing and metal parts processing industry for metal plate,
advertisement, kitchen ware, bit tool, hardware etc

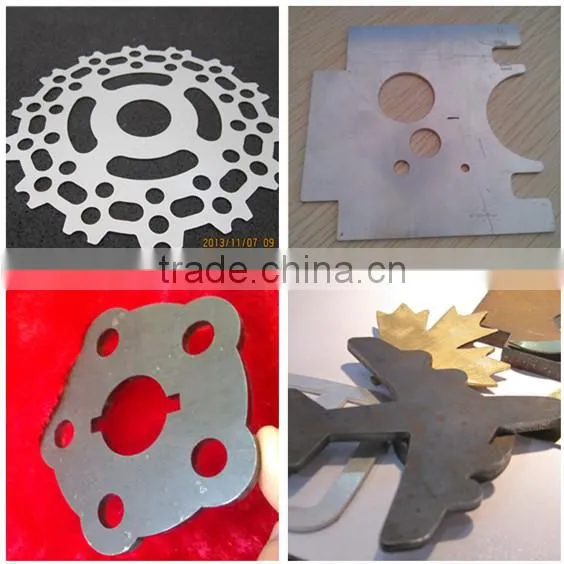

Machine Samples
The YAG Metal Cutting Advantages
1. High precision in cutting. Excellent in stability.
2. High quality in cutting edge
3. Cutting large format and suitable for cutting more material.
4. Drawer and air valve for conveneintly work.
5. High performance-price ratio
6. Low cost for using
7. Higher cutting speed and efficiency
Technical Parameters
NO. |
Model |
SIGN-1325 |
1 |
Working area |
1300*2500mm |
2 |
Laser medium |
YAG |
3 |
Laser power |
500W |
4 |
Laser wave length |
1064nm |
5 |
Laser pulse frequency |
0.1-500Hz |
6 |
Width of pulse |
0.2- 20ms |
7 |
Min line width |
≤0.15mm |
8 |
Positon accuracy |
0.03mm/m |
9 |
Repetition accuracy |
0.02mm/m |
10 |
Focus method |
Following and automatic adjust focus |
11 |
Guide rail |
Hiwin from Taiwan |
12 |
Transmission method |
Ball screw from Germany |
13 |
Drive system |
Servo motor and drivers |
14 |
Cooling system |
7p water chiller |
15 |
Control system |
Motion control card+PC |
16 |
Control software |
Software of RF Laser |
17 |
Graphic format support |
BMP,HPGL,PLT,DST and AL,etc |
18 |
Working environment |
Temperature:0-45°C, |
19 |
Equipment power |
0-20kw |
20 |
Power supply |
380v/50Hz |

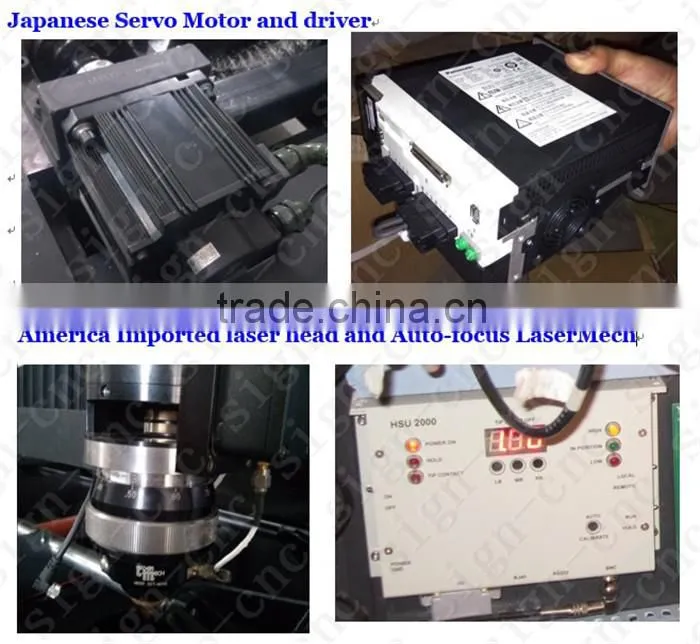

Machine Parts
After Sale Service
1 English software, user manual and operation CD
2.24 hours technical support by e-mail, calling or door-to-door service If you have any problems ,we will within 12 hours to solve it .
3. If you need any component of the machine later ,we will provide the best price for you
4. 7-15 working days to produce the machine ,in the meanwhile , we will report the production process in time.
FAQ
Q: 1.Guarantee SIGN –CNC offered?
A: One year warranty for the CNC Router , two years warranty for the laser machine , we will try our best to satisfy customers requirement,
Q: 2.How do you send your machine ?
A: We can send our machines by sea ,land and rail way ,or we can send the machine to your doors.
