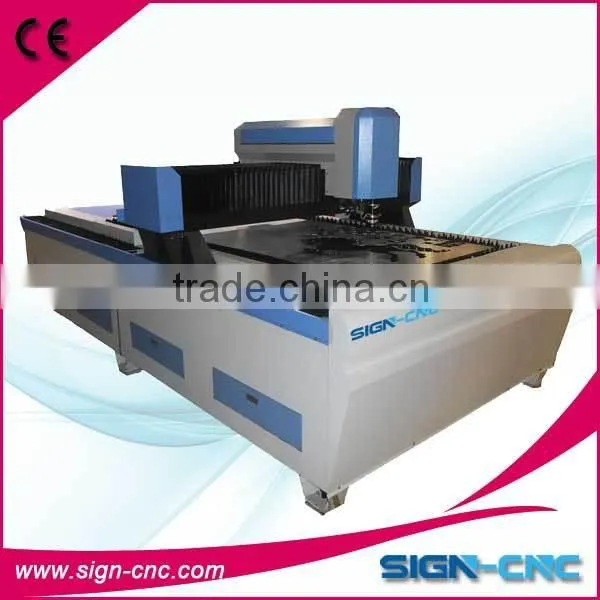

YAG 500W Metal key laser cutting machine 1325

Specifications

key cutting machine
1.High speed and precise cutting
2.Dynamic focusing system
3.Cutting surface is smooth



key cutting machine :



Machine Features:

1. SIGN-YAG500W smaller cutting line, high precision.

2. Auto focus laser cutting head with “LaserMech” USA, guarantee the right focus length.

3. High precision ball screw with a perfect fuel injection systems, make sure a Continuity and fluency transmission.

4. Japan servo motor make sure the cutting stable and cutting speed fast.

5. For highly reflective metal material, also can achieve a good cutting , such as : aluminum, copper , etc.

6. Universal roller design, making it more convenient to feed, avoiding scratches while processing materials.

Applicable Industries:

Used for chassis cabinets , decorations , advertising metal words , hardware, electronics , machining , tool rack , kitchen cabinets manufacturing , lamps lighting , sheet metal accessories.

Internal processing applications for automobile manufacturing, elevator manufacturing , high- precision manufacturing industry.

Applicable Materials:

Stainless steel, carbon steel, brass, aluminum, and other metal precise cutting, suitable for aerospace technology, plane, rocket, robot, elevator,

Technical Parameters:

Machine Model	SIGN-YAG500W
Max Cutting area	1300*2500mm / 1500*3000mm (optional)
Cutting thickness	0.2-8mm
Laser wavelength	1064nm
Laser type	YAG
Laser rated average power	300-500W
Power device injected power	18KW
Water chiller	7HP
Transmission	Imported high precision ball screw
Driving way	Imported servo motor
X/Y Axis location accuracy	0.05mm
X/Y Axis repeat location accuracy	0.05mm
X/Y Axis moving speed Max	30m/min
Max Cutting speed	2100mm/min
Min Cutting line	0.2mm
Location area	4.0 * 2.5 * 1.5m

Advantage:

Compared with traditional way of metal cutting, laser cutting has the following advantages:



1) Laser Cutting surface is smooth and less dross. The maximum thickness is up to 8mm.



 2) Stainless steel below 5mm and mild steel below 7mm can use air to laser cut. Good cutting effect, maximizing reducing use-cost.

3) Dynamic focusing system. When laser cutting different thickness metal sheets and uneven materials, adjusting focus is not required, which can greatly improve working efficiency.

Machine parts:

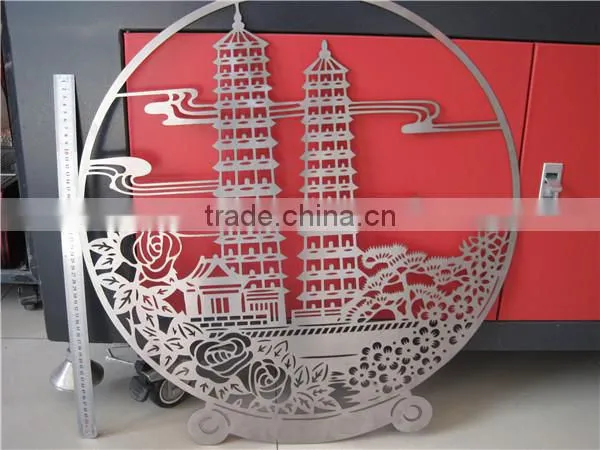

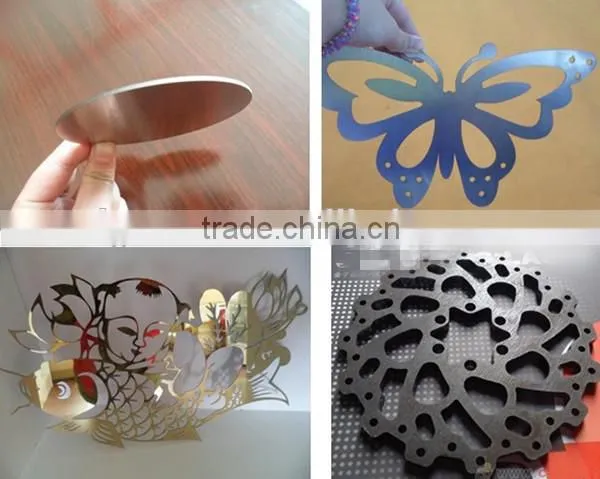

Samples display:

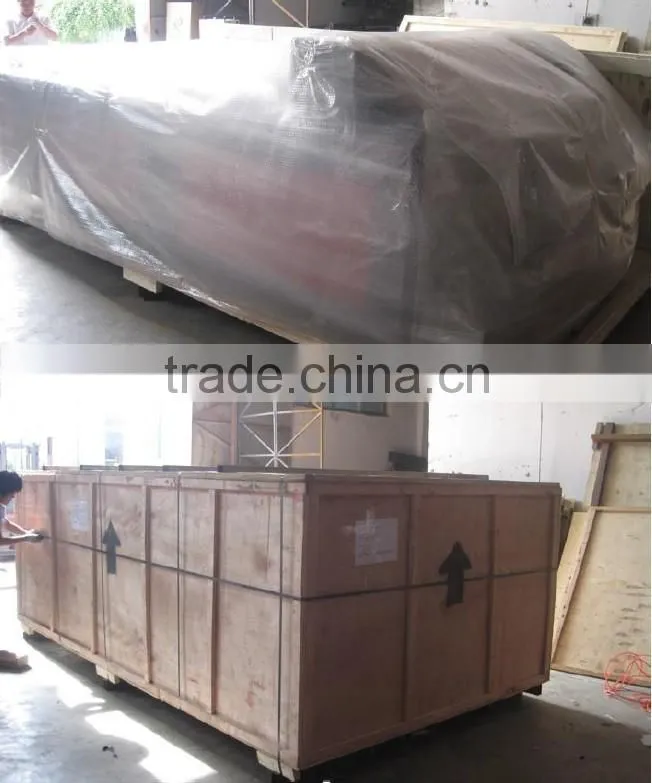

Packing:













Our Services:

1.Two year warranty time, we can repair and replace parts for free in one year.
2.Technical support in 24 hours online, TM, Skype, E-mail, solving the relative questions in time.

3.Life time free maintenance service.

4.Free training course at our factory with professional engineers.
5.We provide the consumable parts at agent price when you need replacement.













About Us:

    We have a strong professional technical team to provide the best products and have experienced managers with the most perfect price system integration schemes for our customers. We have been established business partner with many customers from Russia, Ukraine, U.S., Japan, South Korea, Canada, Italy, Turkey, Iran, Iraq, Egypt, Brazil, Pakistan etc. more than 50 countries.

     We have been experienced in exporting the CNC machine for over 5 years, familiar with the different requirements from all kinds lines. Meanwhile, we insist the principle of “the best products, the most reasonable price, the maximum benefits for customers”, there are prestigious fame in the industry business field.      All response and suggestion from you, we promise to give you a satisfactory reply in 12 hours.



Our customers:













FAQ

1.Which one should I use for metal ? YAG or Fiber?

Most metals are highly reflective and therefore, an Nd:YAG or Fiber laser would be most suited. The wavelength being much shorter means there will be less reflection of the beam on the surface, therefore less loss of energy and consequently easier working of the metal. The metal absorbs more of the light energy that changes its physical properties.



2.What difference does this make?

These wavelengths determine which laser should be used for each application, as the material to be marked will have different absorption capabilities (of the light at different wavelengths). If a material can absorb the light, then it can be affected by it.
