high speed metal 5050 YAG laser cutter metal cutting machine laser
- 200 Set / Sets per Month
- QingDao
- Credit Card
Product Details
Condition: | New | Laser Type: | YAG | Applicable Material: | Metal |
Cutting Thickness: | 0.2-8mm | Cutting Area: | 500*500mm | Cutting Speed: | 3m/min |
CNC or Not: | Yes | Cooling Mode: | Water Cooling | Graphic Format Supported: | AI, PLT, DXF, BMP, DST, DWG, LAS, DXP |
Place of Origin: | Shandong, China | Brand Name: | SIGN CNC | Model Number: | SIGN-1325 |
Certification: | CE, ISO | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
metal cutting machine laser1.500*500mm
2.yag laser type
3. high speed
metal cutting machine laser
Features
1. Movable cross table makes more easy to cut smaller sheet.
2. Auto focus laser cutting head with “Laser-mech” USA, guarantee the right focus length.
3. Can workable for both small size materials and circular tube.
4. High precision, and thin cutting line
5. Able to cut high reflecting materials: Aluminum, Brass
Applications
Applied to electronic components , signage, tiny precision accessories perforated tube fittings, square profile processing and other high precision industry.
Technical Parameters
Machine Model | SIGN-5050-YAG500W |
Max Cutting area | 500*500mm |
Cutting thickness | 0.2-8mm |
Laser wavelength | 1064nm |
Laser type | YAG |
Laser rated average power | 300-500W |
Power device injected power | 18KW |
Chiller | 7HP |
Transmission | Imported high precision ball screw |
Driving way | Imported servo motor |
X/Y Axis location accuracy | 0.05mm |
X/Y Axis repeat location accuracy | 0.05mm |
X/Y Axis moving speed Max | 30m/min |
Max Cutting speed | 2100mm/min |
Min Cutting line | 0.2mm |
Advantage
1. High precision: applicable for high-precision demanding parts cutting and precise parts cutting for arts and crafts.
2. High speed: 100 times faster than linear cutting.
3. Small heat affected zone, not easy to distort. Cutting edges are very smooth, no need for further processing.
4. Low usage cost: only around US$2 per hour which is 1/8-1/10 of the similar CO2 laser cutting machines
5. Stable performance makes sure continuous running. Solid YAG Laser is one of the most stable, mature products in laser field.

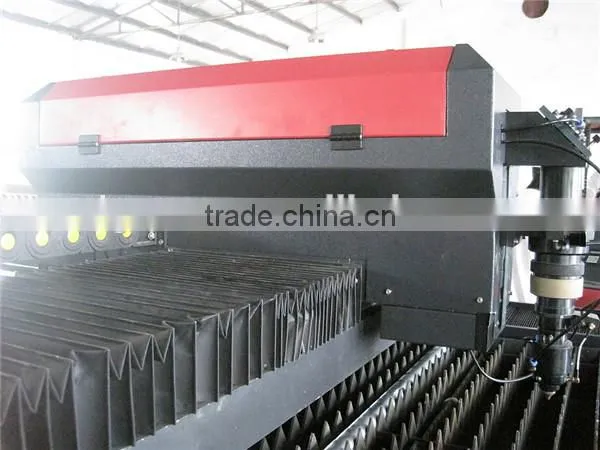

Machine Parts

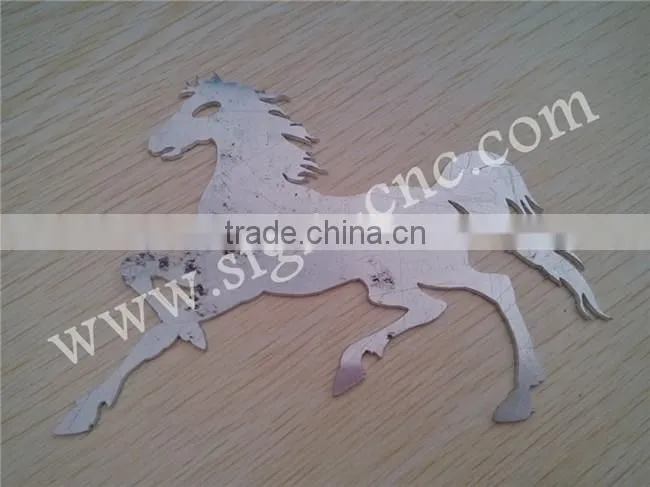

Machine Samples
After Sale Service
1.One year warranty for the YAG laser metal cutting machine
2.7-15 working days to process the machine after received your prepay.
3.Within 24 hours to solve your after sale problems
4.Support technical teach, if you do not know how to operate the machine, we will send the technician to teach you buy MSN or skype until you can operate it freely.

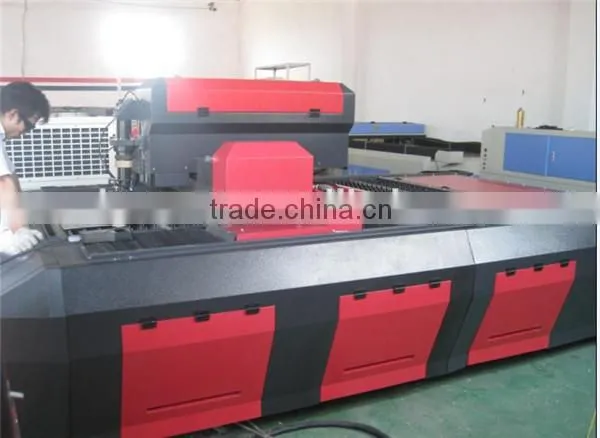

machine working
FAQ
1.Which one should I use for metal ? YAG or Fiber?
Most metals are highly reflective and therefore, an Nd:YAG or Fiber laser would be most suited. The wavelength being much shorter means there will be less reflection of the beam on the surface, therefore less loss of energy and consequently easier working of the metal. The metal absorbs more of the light energy that changes its physical properties.
2.What difference does this make?
These wavelengths determine which laser should be used for each application, as the material to be marked will have different absorption capabilities (of the light at different wavelengths). If a material can absorb the light, then it can be affected by it.
Packaging Parts
We offer YAG metal cutting machine ,fiber laser metal cutting machine ,plasma metal cutting machine ,if you are interested in our products ,please contact me at any time ,thanks for your attention
Contact
We regards the customer as the god, if you have any problems , we will try our best to meet you .we have perfect after sale service ,and come to SIGN CNC is your best choice ,looking forward to establish business relationship.
