Help CenterHorizontal High Speed Gear Hobbing Machine
Related Products
-
High Quality Uaual Lathe MachineNegotiableMOQ: 1 Set -
High Quality CNC Lathe MachineNegotiableMOQ: 1 Set
-
Double Column Horizontal Metal Band Sawing MachineNegotiableMOQ: 1 Set
-
Double Column Horizontal Metal Band Sawing MachineNegotiableMOQ: 1 Set
-
Double Column Horizontal Metal Band Sawing MachineNegotiableMOQ: 1 Set
Specifications
1.Electronic gear box to achieve gear rack2.Backward protection function
3.Dry or Wet cutting

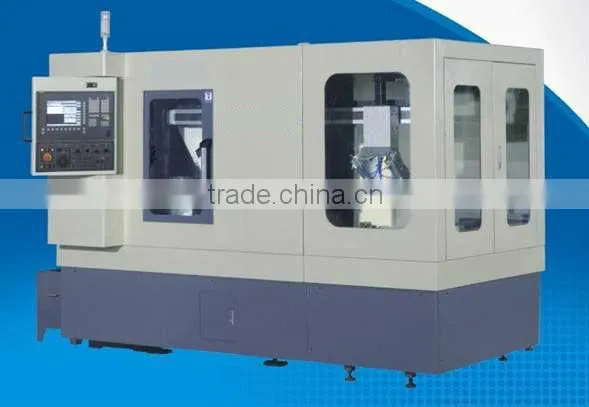

Gear hobbing machine
Main Features:
1,8 axes control,double channels,4 axes linkage,the 8 CNC axes control are:
A axis:Hob shaft swivel
B axis:Hob spindle swivel
C axis:Table swivel
U axis:tailstock center
V axis:machine hand
X axis:Radial feed
Y axis:Hob shift feed
Z axis:Axial feed
The 5 linkage axes are:B,C,X,Z,V
2,Electronic gear box to achieve gear rack and differential compensation.
3,Backward protection function:when interruption of power or another kind of emergency, synchronously retreat knife for protection.
4,Software for fault diagnostics and alarm show.
5,Alarm for false movement in feeding process.
6,Precise cutter setting in the second cutting after hear treat in initial hobbing,up to the hardness of HRC55°+/-2°.
7,Indexing in high precision,to eliminate gap.
8,Dry or Wet cutting
9,Maching precision to Grade 6(GB/T10095.1-2008),Roughness of teeth surface below Ra1.6μm.
Standard Equipment
SINUMERIK 840D CNC system |
Illumination light |
Quantitative lubrication device |
10.4’’ color screen |
Workpiece clamping device |
Pneumatic system |
Electric Control box with air conditioner |
φ 13 hob cutter set |
Close Cover |
Machine hand |
Hydraulic system |
Magnetic chip conveyor |
Feed device |
Cooling system |
Absorber pad |
Situation index light |
Recycling Lubrication system |
Install and adjust tools |
Optional Equipment
SKIVING Precise cutter setting |
Oil mist collector(wet) |
φ 16 hob cutter set |
Mechanical deburring equip |
Dust removing device(dry) |
φ 22 hob cutter set |
Workpiece auxiliary bracket |
Rotatable Thimble |
φ 10 hob cutter set |
Workpiece clamping device |
|
|
Main technical specification
Item |
Unit |
EGS3610C |
Max workpiece diameter |
mm |
100 |
Max module |
mm |
2.5 |
Max axial travel |
mm |
300 |
No. of teeth |
teeth |
2-999 |
Max diameter and length of Hob |
mm |
60 x 70 |
Max diameter of hob arbor |
mm |
φ 13 |
Max length of hob shift |
mm |
70 |
Hob spindle rotation speed B-axis |
rpm |
3000 |
Table rotation speed C-axis |
rpm |
1000 |
U/X/Z rapid traverse speed |
mm/min |
5000 |
V axis rapid traverse speed |
mm/min |
30000 |
Hob head swivel |
degree |
±45 |
Total Power of motor |
KVA |
18 |
Overall dimensions |
mm |
3070 x 1750 x 1900 |
Net weight |
kg |
4000 |
