Home > Construction & Decoration > Decoration Materials > Sandwich Panel > Plain Weave Stainless Steel Welded Wire Mesh

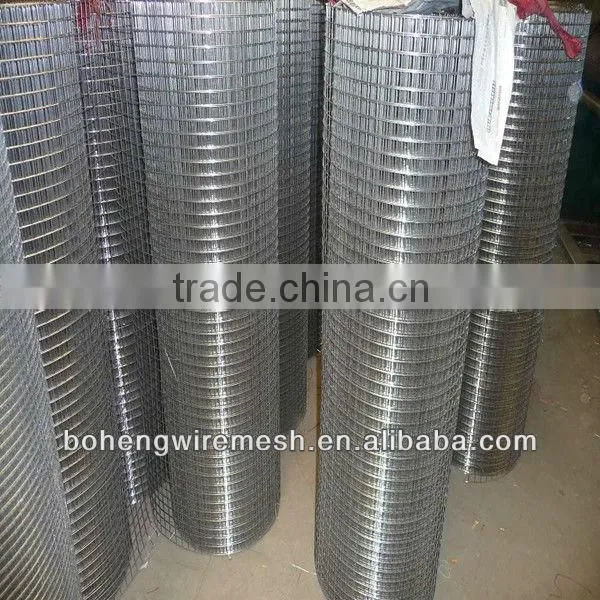

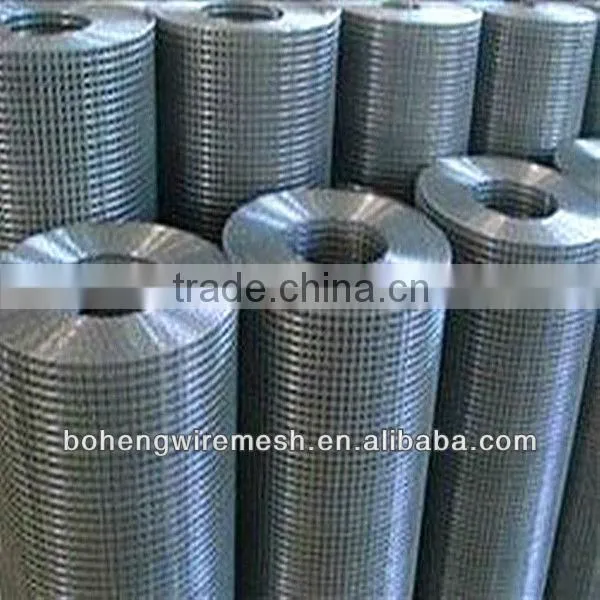

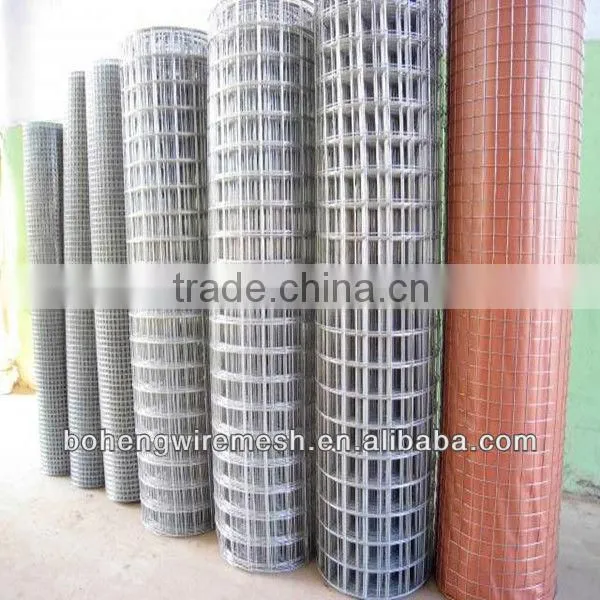

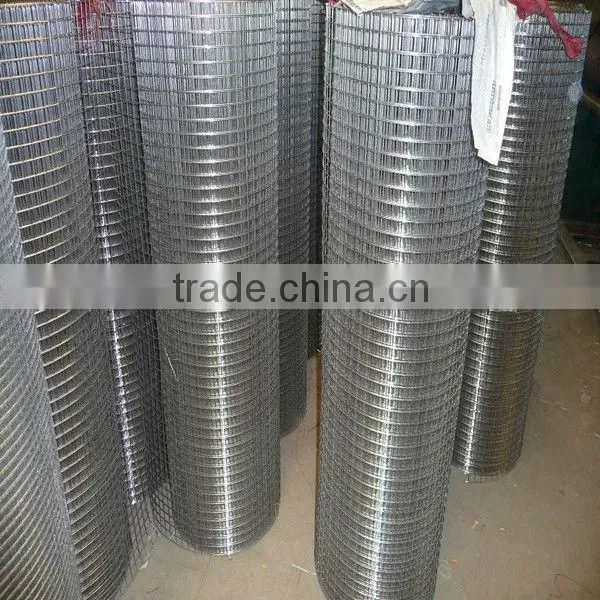

Plain Weave Stainless Steel Welded Wire Mesh
US$ 1 - 30
MOQ: 1 Ton
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
BoHeng
Model Number:
BH-08
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Hebei, China
Brand Name
BoHeng
Model Number
BH-08
Material
Stainless Steel
Specifications
PVC Coated Welded Wire MeshMesh:1/4"-2"
Wire dia.:0.5-4.5mm
Used in building,construction,agriculture
ISO9001:2008
PVC Coated Welded Wire Mesh
Materials: Mild steel wire, stainless steel wire, galvanized steel wire, hot-dipped galvanized iron wire.
Process: Galvanized after welding; galvanized before welding; PVC coated.
Surface treatment: Electric galvanized, hot-dip galvanized, stainless steel or PVC coated.
General Use: Welded Wire Mesh with excellent corrosion resistance and oxidation resistance, is extensively used as fencing, decoration and machinery protection material in agriculture, construction, transport, mine, sports field, lawn and various industrial fields.
| Specification List of Welded Wire Mesh | ||
| Opening | Wire Diameter<BWG> | |
| In inch | In metric unit(mm) | |
| 1/4" x 1/4" | 6.4mm x 6.4mm | 22,23,24 |
| 3/8" x 3/8" | 10.6mm x 10.6mm | 19,20,21,22 |
| 1/2" x 1/2" | 12.7mm x 12.7mm | 16,17,18,19,20,21,22,23 |
| 5/8" x 5/8" | 16mm x 16mm | 18,19,20,21, |
| 3/4" x 3/4" | 19.1mm x 19.1mm | 16,17,18,19,20,21 |
| 1" x 1/2" | 25.4mm x 12.7mm | 16,17,18,19,20,21 |
| 1-1/2" x 1-1/2" | 38mm x 38mm | 14,15,16,17,18,19 |
| 1" x 2" | 25.4mm x 50.8mm | 14,15,16 |
| 2" x 2" | 50.8mm x 50.8mm | 12,13,14,15,16 |
| Technical Note: 1,Standard roll length: 30m;width: 0.5m to 1.8m 2,Special sizes available at request 3,Packing: in waterproof paper in rolls. Custom packing available at request | ||
| Galvanized Welded Wire Mesh | ||
| Opening | Wire Diameter<BWG> | |
| In inch | In metric unit(mm) | |
| 2" x 3" | 50mm x 75mm | 2.0mm,2.5mm,1.65mm |
| 3" x 3" | 75mm x 756mm | 2.67mm,2.41mm,2.11mm,1.83mm,1.65mm |
| 2" x 4" | 50mm x 100mm | 2.11mm,2.5mm |
| 4" x 4" | 100mm x 100mm | 2.0mm,2.5mm |
| Technical Note: 1,Standard roll length: 30m;width: 0.5m to 1.8m 2,Special sizes available at request 3,Packing: in waterproof paper in rolls. Custom packing available at request. | ||
PVC Coated Welded Mesh: | ||
Opening |
Wire Diameter<BWG> |
|
In inch |
In metric unit(mm) |
|
1/2" x 1/2" |
12.7mm x 12.7mm |
16,17,18,19,20,21 |
3/4" x 3/4" |
19mm x 19mm |
16,17,18,19,20,21 |
1" x 1" |
25.4mm x 25.4mm |
15,16,17,18,19,20 |
| Technical Note: 1.Standard roll length: 30m;width: 0.5m to 1.2m 2.Special sizes available at request 3.Packing: in waterproof paper in rolls. Custom packing available at request. | ||
Send Inquiry to This Supplier
Business Type
Manufacturer, Trading Company
Year Established
2009
Factory Size
10,000-30,000 square meters
Total Employees
101 - 200 People
