Specifications
plastic film blowing machine1.high quality
2.high effciencyand high finished products
3.delivery date 30-45days

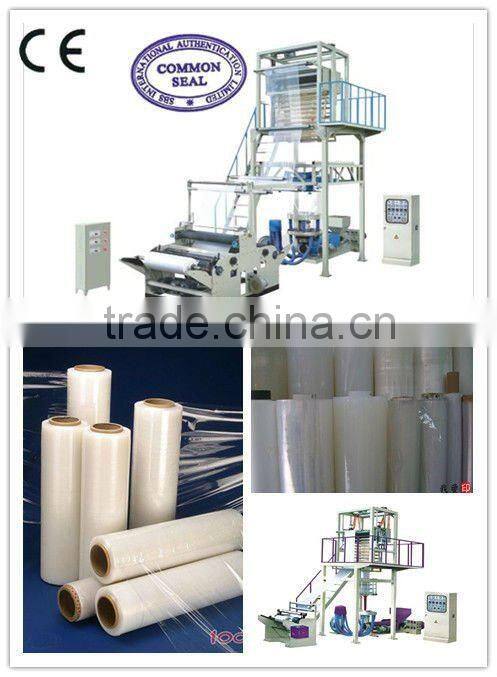

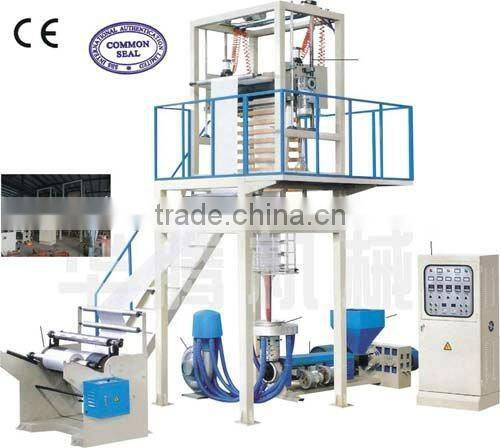

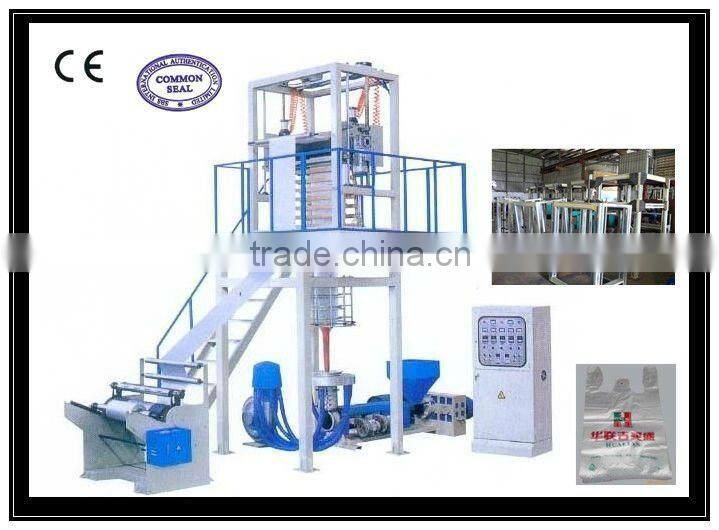

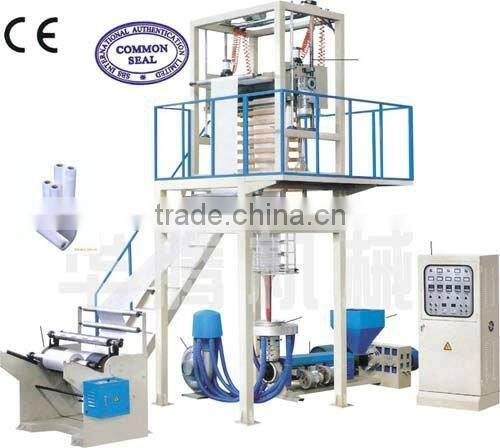

plastic Film Blowing Machine
---------------------------------------------------------------------------------------------------------------------
USE
This machine set is used for blowing low-density polrethylene(LDPE)and high-density Polyethylene(HDPE)plastic film to make various and flat-rimbags which have been widely used for packing in the food industry,garment industry and textile industry,etc.
main technical variables:
Model |
SJ55-FM700 |
SJ55-FM800 |
screw diameter |
Φ60 |
Φ65 |
screw ratio L/D |
28:1 |
28:1 |
screw speed |
15-100r/min |
15-100r/min |
main motor power |
18.5kw-22kw |
22kw-30kw |
extrusion output(single) |
50-60kg/h |
60-80kg/h |
range of die |
Φ50×2 orΦ80×2 |
Φ100×2 orΦ150×2 |
single-sided thickness of film |
0.008-0.10mm |
0.01-0.10mm |
max folding width of film |
600mm |
800mm |
electric total capacity |
44kw |
58kw |
overall dimension |
4000×3500×4200 |
4500×4500×4500 |
weight of machint |
3.8T |
4.5T |
