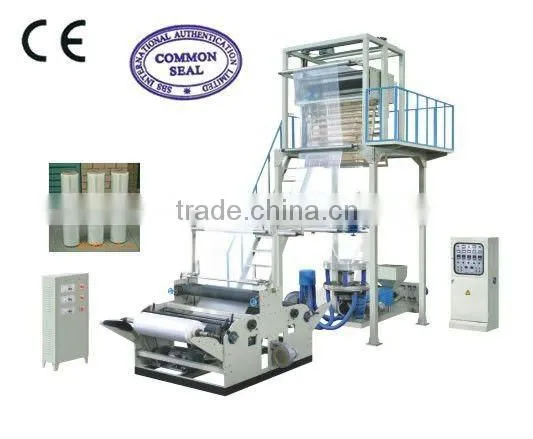

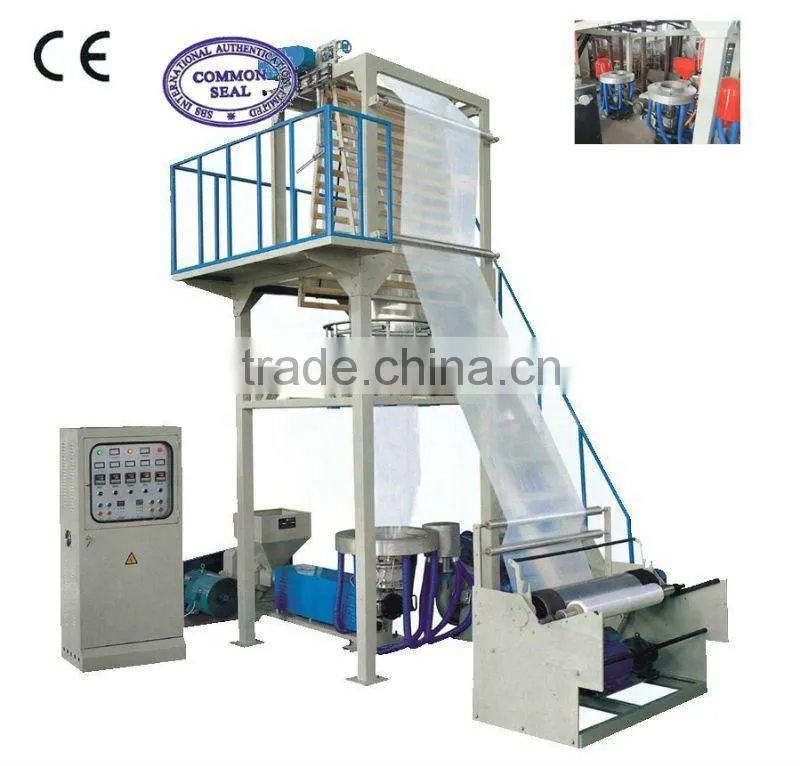

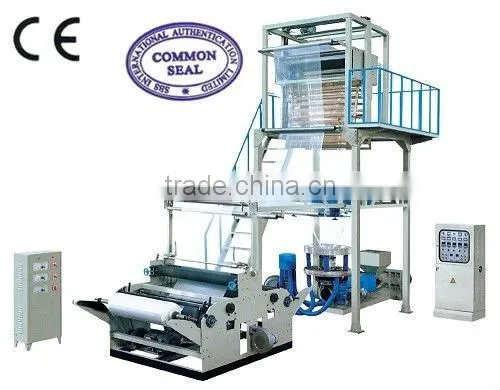

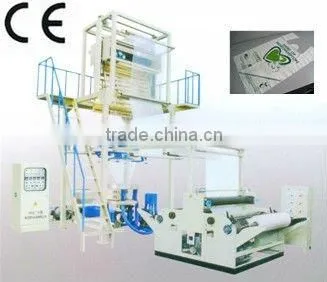

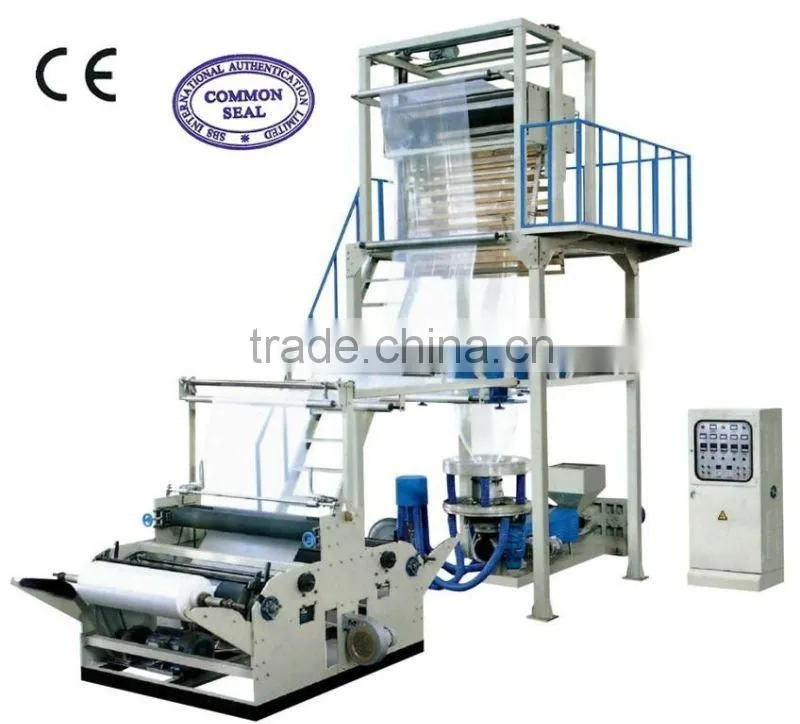

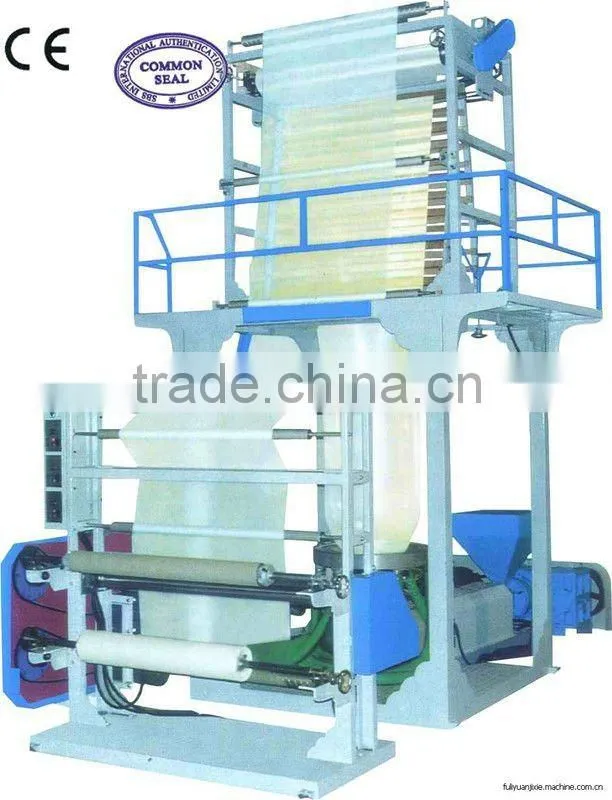

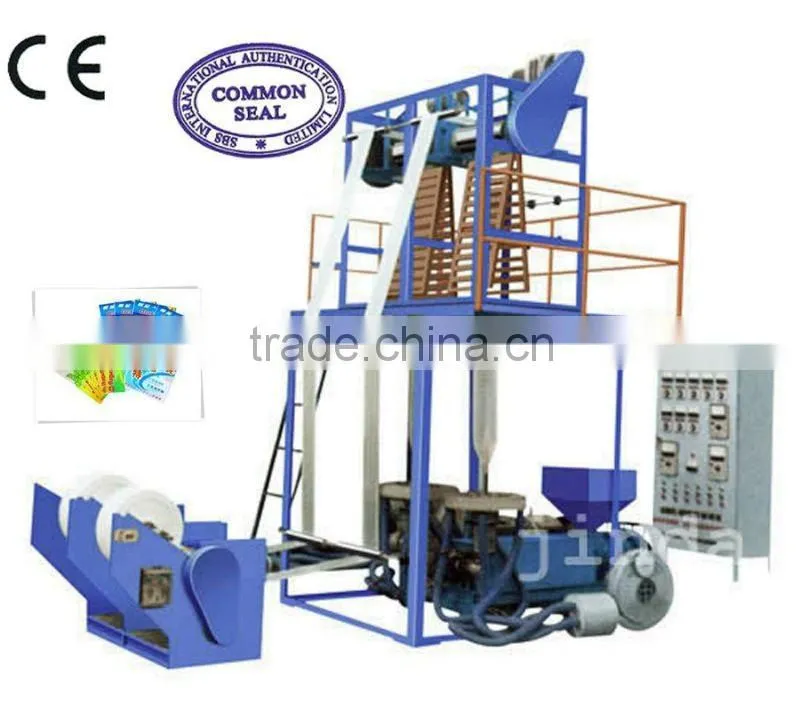

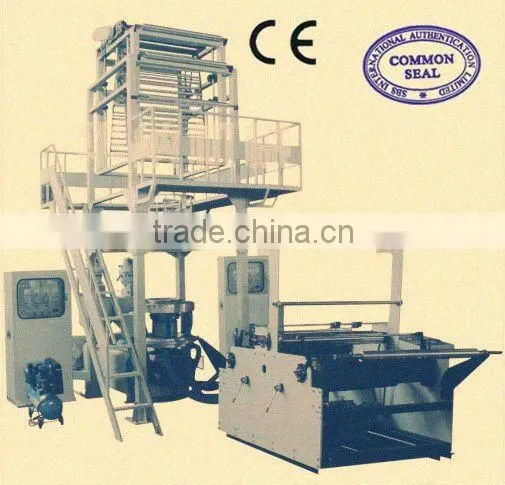

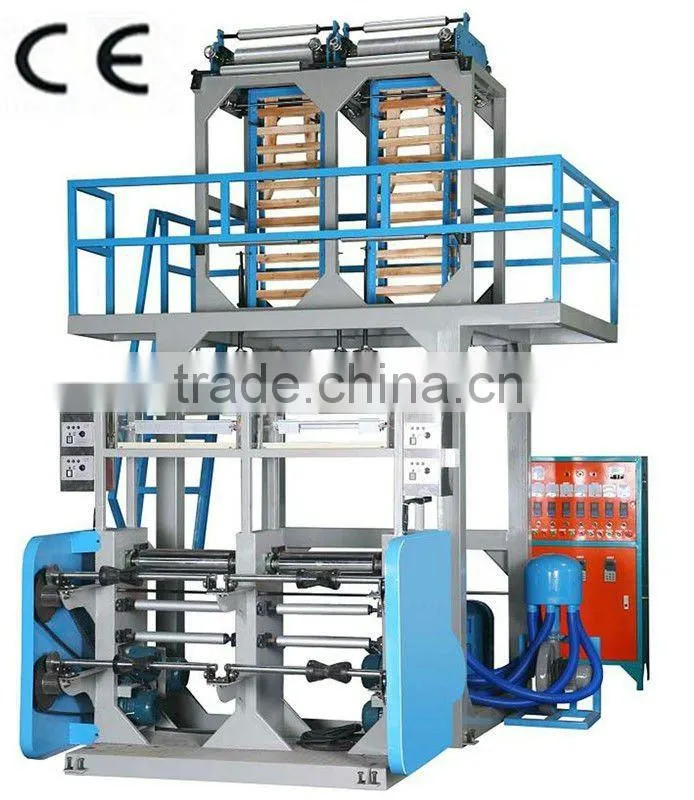

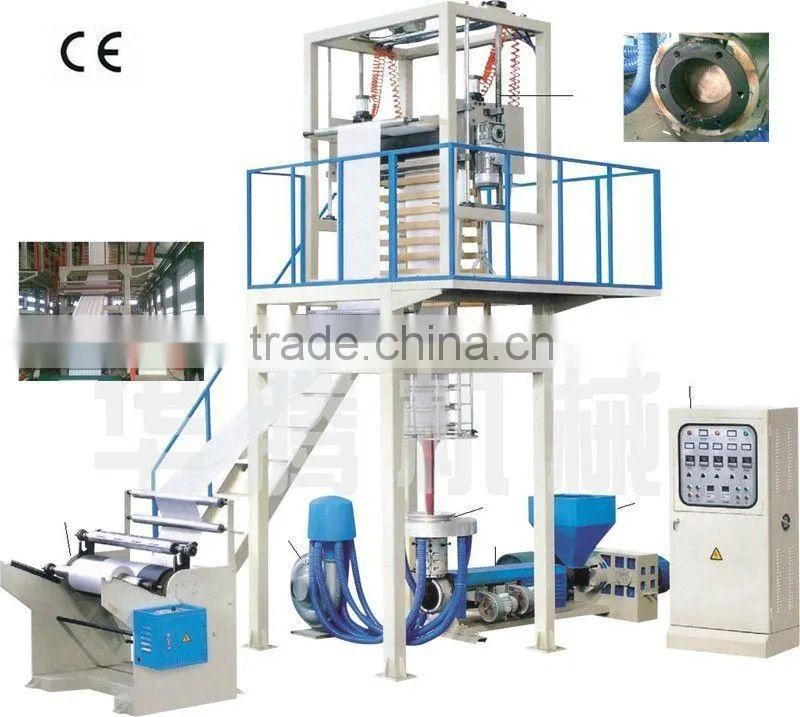

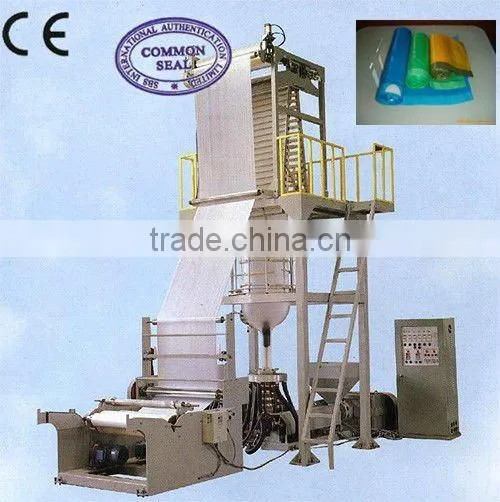

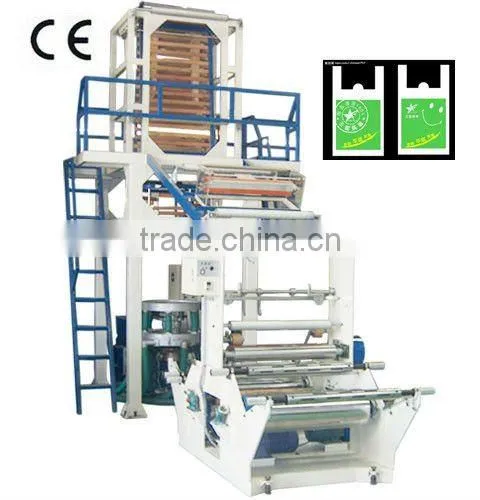

Help CenterSJ55 PE/LDPE/HDPEFull Automatic High Speed Film Blowing Machine
Related Products
-
SJ65-FM800 PE/LDPE/HDPE Double-Head Film Blowing MachineUS$ 8,000 - 10,000MOQ: 1 Set -
SJ65-FM800 PE /LDPE/HDPE LLDPE Double Head Blowing MachineNegotiableMOQ: 1 Set
-
PE /LDPE/HDPE LLDPEplastic High Speed Film Blowing MachineNegotiableMOQ: 1 Set
-
SJ55-FM600 PE Double Head Film Blowing MachineUS$ 8,000 - 10,000MOQ: 1 Set
-
SJ55-FM600 PE /LDPE/HDPE LLDPE Double Head Film Blowing MachineUS$ 8,000 - 12,000MOQ: 1 Set
Specifications
blowing film machine:1,easy installation
2.saving electricity
petitive price
4,high speed
film blowing machine:
Main Features:
1>The extruder, barrel and screw rods are made of high quality 38CRMOALA alloy steel that have been nitrized and processed in a precision way.
It is good in hardness, durable in corrosion resistance. The special designed screw is of high quality, which helps increase the production capacity.
2>It is applied to blowing the plastic films like LDPE, HDPE and LLDPE.
4>It is widely applied to produce the packing bags for food, clothing, rubbish bag and vest ones.
Main Technical Variables:
Type
SJ45
SJ50
Applied material
LLDPE/ LDPE/HDPE
LLDPE/ LDPE/HDPE
Screw D/A (mm)
45
50
Screw ratioL/D(mm)
28:1
28:1
Screwd speed(r/min)
15-100
15-100
Main motor power(KW)
7.5
11
Extrusion output(single)
25
30
Range of die(mm)
50
60
Single side thickness of film(mm)
0.008-0.08
0.008-0.08
Max folding width of film(mm)
400
500
Electric total capacity(KW)
18
24
Overall dimensions(mm)
2400x2100x2800
2500x2150x2800
Weight of machine(T)
1.8
2.2
