Specifications
Double Die Heads Film Blowing Machine1.high quality
2.high effciency and high finished products

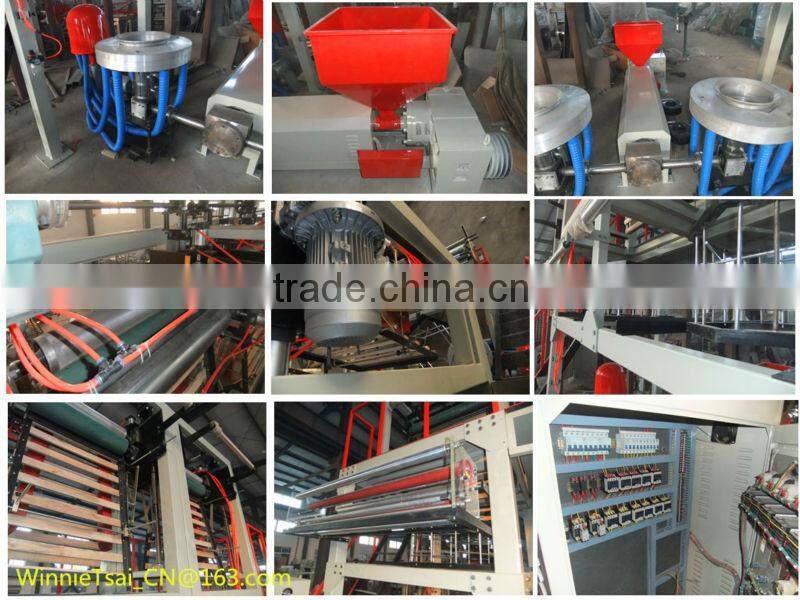

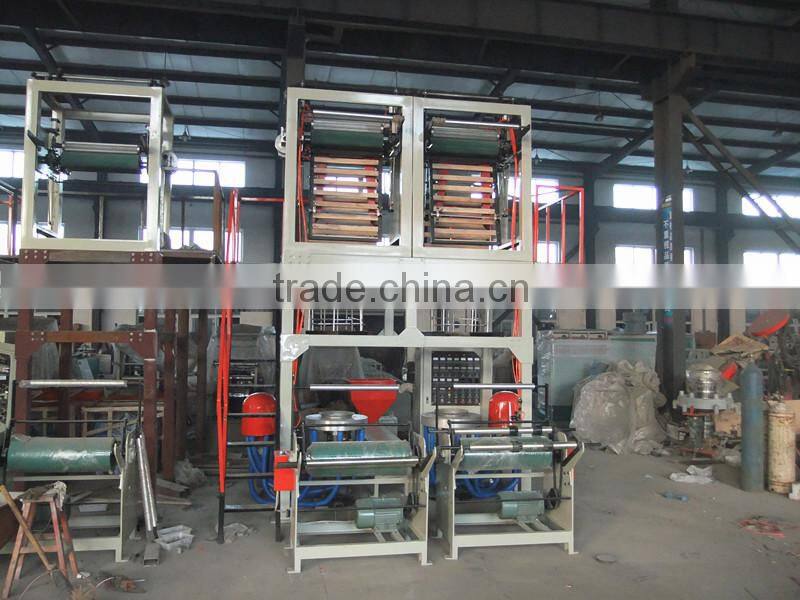

SJ55-FM700 Double Die Heads Film Blowing Machine
Both the cylinder and the screw of the extruder are made of high quality alloy steel through nitration and precision finishing with the best hardness and corrosion resistance,Scientifically designed,this machine set has two heads for one extruder with such advantages as increasing production capacity,saving energy,labour and workshop area,etc.
Usage
This machine set is used for blowing low-density polrethylene(LDPE)and high-density Polyethylene(HDPE)plastic film to make various and flat-rimbags which have been widely used for packing in the food industry,garment industry and textile industry,etc.
Feature
1.The extruder ,barrel and screw rods are made of high quality 30CRMOALA alloy steel that have been nitrized and processed in a precision way
2.It is good in hardness ,durable in corrosion resistance.
3.The special designed screw is of high quality .
4.Which helps increase the production capacity.
5.It is applied to blowing the plastic films like low density polytene(LDPE).
6.High density polytene(HDPE) and linear low density polyene(LLDPE).
7.It is widely applied to producing the packing bags for foodstuff clothing ,rubbish bag and vest bag.
Main Technical Parameter:
Model |
SJ55-FM700 |
SJ55-FM800 |
screw diameter |
Φ60 |
Φ65 |
screw ratio L/D |
28:1 |
28:1 |
screw speed |
15-100r/min |
15-100r/min |
main motor power |
18.5kw-22kw |
22kw-30kw |
extrusion output(single) |
50-60kg/h |
60-80kg/h |
range of die |
Φ50×2/Φ80×2 |
Φ100×2/Φ150×2 |
single-sided thickness of film |
0.008-0.10mm |
0.01-0.10mm |
max folding width of film |
600mm |
800mm |
electric total capacity |
44kw |
58kw |
overall dimension |
4000×3500×4200 |
4500×4500×4500 |
weight of machint |
3.8T |
4.5T |
