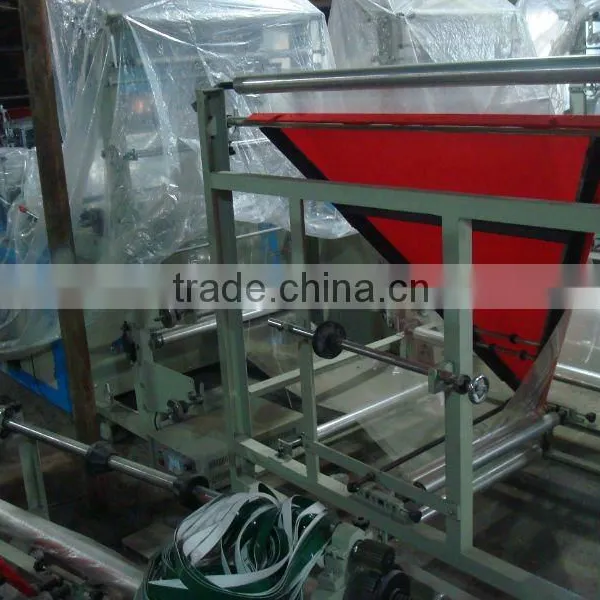

SHXJ-E Full Automatic T-shirt Hot-sealing Cold Cutting Bag Making Machine

Flexogravure printing machine

SUPERFLEX - FLEXO GRAPHIC PRINTING MACHINE

Model: SUPERFLEX  - Available in 2,4 & 6 colours

Widths Available – 550mm, 750mm, 950mm & 1150mm

Suitable for LDPE / HDPE / PP / BOPP / PET Film

Stack Type Design for operating convenience.

With Single Unwind and Rewind Stands

Main Motor 5 HP AC with Inverter Drive for speed regulation

Printing Station:

• Each printing station will be equipped with Stainless steel tray, Synthetic rubber roller for ink        transfer
• Anilox roller (steel)  275 LPI screen
• Impression roller Hard chrome Plated and ground.
• Hydraulic engagement of print cylinders Inking rollers rotate and plate cylinders retract when printing is stopped, avoiding drying of ink on rollers

One set of Printing Cylinders with print repeat 12" included with the machine. Extra cylinders can be offered as per size

• Solid Casting design to minimize vibration to maintain registration
• Web Aligner On Roll Unwind (EPC)
• Rewinding of the roll with Torque motor & controller
• Automatic Tension Controller with Load Cell & Particle Brake on Roll Unwind.
• Capable of running at upto 80 Mtrs/min

Optionals Available:

• Ceramic Anillox
• Chambered Doctor blade system
• Ink Circulation system with
