beauty products Perfume Making Machine
Introduction:

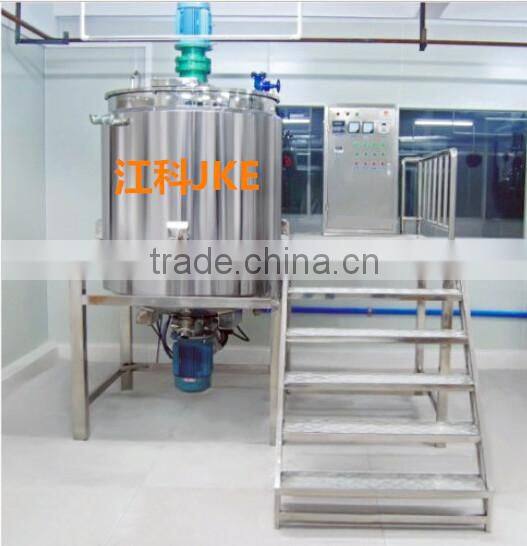

The series of MF Stainless Steel detergent mixer/shampoo mixer/lotion mixer/hand soap mixer are made of stainless steel (SUS304 or SUS316L). All joints and inside is mirror finished without any dead angle and cleaned easily. It consists of inner vessel, jacket and insulation with the configurations of agitator, CIP hole, Manhole, sight glass, thermometer etc. The interior surface of the vessel is subjected to mirro polishing 300EMSH(sanitary level), which is in accordance with sanitary requirements.
Technical parameters:
Capacity | 1000Liter (Design capacity:1200Liter) | ||
Kettle Cover | Liquid(particle)inlet, material inlet, air inlet with filter, inspect light and sight glass, CIP drencher head, vacuum port, pressure meter(1 to -0.1 bar) | ||
Mixing pot |
Material | Inner layer: SUS316L thickness: 8mm | |
Middle layer: SUS304 thickness: 6mm | |||
Outside layer: SUS304 thickness:3mm | |||
configuration | Bottom material exhaust, size: 2” | ||
Temp. sensor (0-199℃), PT100 | |||
Stirring system |
Homogenizer | 1.Material: SUS316L; standard homogenizer 2. Power: 15kw/380V/50Hz;RPM: 0-1400R/Min | |
Stirring scrap and middle stirring | Material: SUS304,Scrap material: PTFE | ||
1. Stirring scrap and middle stirring use the same motor 2,Power:5.5kw/380V/50Hz;RPM:0~48r/min(Frequency control) 3. Stirring scrap and middle stirring rotating the opposite direction | |||
Vacuum system | 1. Vacuum pump: water recycle, power 4kw/380/50Hz
| ||
Heating method | Electric heating: 36kw, cooling water inlet | ||
discharging | Bottom valve | ||
Pressure | Jacket working pressure:0.3Mpa | ||
Dimension | 1500*1350*3200mm(L*W*H) | ||

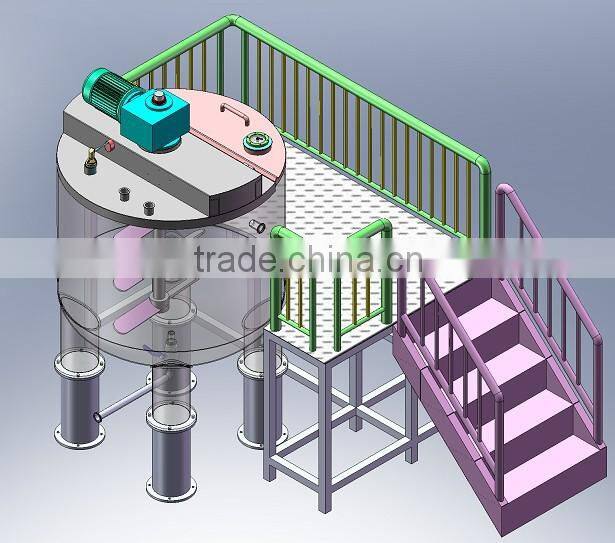

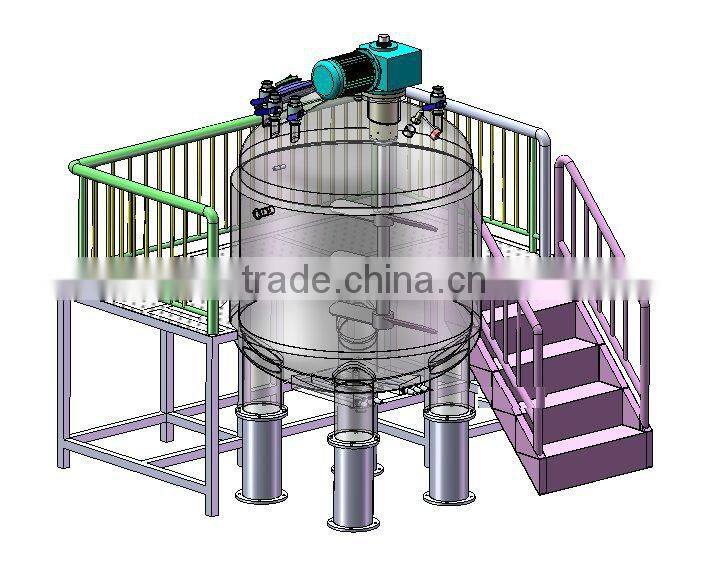

drawing:

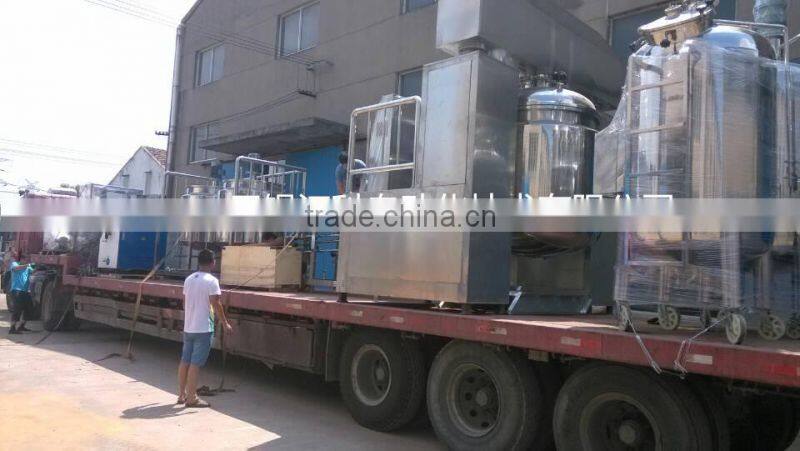

transportation:
parts:
