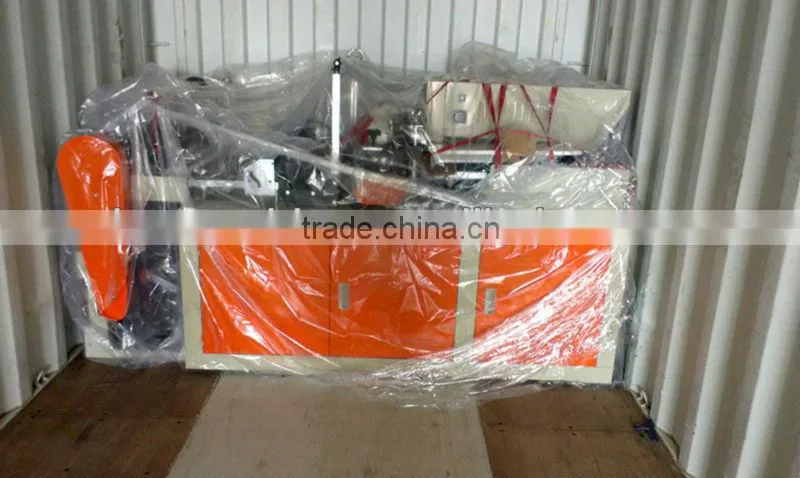

YT-4600 Flexographic Printing Machine

Name: YT-4600 Flexographic Printing Machine
Brand: HuaNa
SKU: 118444647

US$ 8,000 - 12,000 MOQ: 1 Set

Key Specifications

Condition:

New

Machine Type:

Bag Forming Machine

Bag Type:

T-shirt Bag

Ruian Huana Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

ningbo shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Machine Type Bag Forming Machine

Bag Type T-shirt Bag

Material Plastic

Computerized Yes

Place of Origin Zhejiang, China

Brand Name HuaNa

Model Number YT-4600

Voltage 380v

Power(W) 44kw

Dimension(L*W*H) 4800mm*1600mm*2400mm

Weight 3.8t

Certification BV certification

Warranty 1years

After-sales Service Provided Engineers available to service machinery overseas

Specifications

YT-4600 Flexographic Printing Machine:
1.high speed
2.more output
3.printing good
4.easy operation

YT4600 Flexographic Printing Machine

Application:

Introduce sensitization resin as flexible printing plate, suitable for printing

such packing materials as polyethylene, polypropylene bag, cellophane and roll paper, etc.

It is a kind of ideal printing equipment for producing paper packing bag for food,

supermarket handbag, vest bag and clothes bag, etc.

Main Technical Parameter:

TYPE		YT-4800-4color-flexo press
Max.width of material		800mm
Max.printing width		760mm
Max.printing speed		50m/min
Max.Mechanical speed		60m/min
Max. unwinding and rewinding diameter of Roll Material		Φ450mm
Internal Diameter of Roll Core		φ76mm
Cylinder diameter		φ400mm(Customer can order other sizes)
Rang of Repeat Printing Length		191-914mm
Plate Thickness(Bothside adhesive included)		2.38mm
Accuracy of Registration	Vertical	+/-0.25mm
	Horizontal
Tension control range		0-25kg
Heating Power		10.5kw
Main motor power		15kw
Total power		26kw
