Help CenterLDPE.LLDPE.HDPE Agricultural Covering Film Extruding Machine
Related Products
-
SJ55-900 PE/LDPE/HDPE Full Automatic High Speed Blowing Film MachineNegotiableMOQ: 1 Set -
SJX PE/ LDPE HDPETwo-layer Co-extruding Rotary Die Film Blowing MachineNegotiableMOQ: 1 Set
-
SJ-55 PE/ LDPE HDPE High and Low Film Blowing MachineNegotiableMOQ: 1 Set
-
PE /LDPE/HDPE LLDPE Double Head Blown MachineNegotiableMOQ: 1 Set
-
SJ75 PE High Speed Film Blowing MachineUS$ 8,500 - 10,000MOQ: 1 Set
Specifications
extruding machine1.high quality
2.high effciencyand high finished products
3.delivery date 30-45days
4.cheaper price

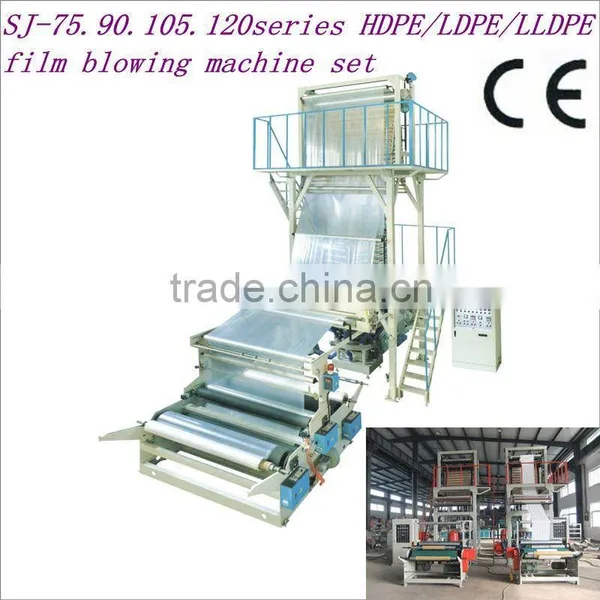

SJ-75.90.105.120 series HDPE,LDPE,LLDPE film blowing machine set
Feature:
1.It is used for blowing high-low pressure polyethylene,which has been widely used for producing laminating film,packing film,agricultural covering film,bag or film for textile and clothing and other packing material,
2.The main motor adopts frequency control of motor speed to timprove the speed regulating stadility of main motor and save electricity by 30%,the screw and material barrel adopt38 chrome-molybdenum aluminum which has been nitrogen treated and the traction frame adopts lifting type,no matter what size the film is big or small,lt can achieve the best effect of cooling
Raw material: HDPE LDPE
main technical variables:
Model |
SJ-75 |
SJ-90 |
SJ-120 |
screw diameter |
Φ75 |
Φ90 |
Φ120 |
screw ratio L/D |
28:1 |
28:1 |
28:1 |
screw speed |
15-100r/min |
15-100r/min |
15-100r/min |
main motor power |
30kw-37kw |
37kw-45kw |
45kw-55kw |
extrusion output(single) |
120kg/h |
145kg/h |
200kg/h |
range of die |
Φ150 Φ350 |
Φ500 |
Φ550 |
single-sided thickness of film |
0.01-0.10mm |
0.01-0.10mm |
0.01-0.10mm |
max folding width of film |
1500mm |
2000mm |
2300mm |
electric total capacity |
58kw |
80kw |
105kw |
overall dimension |
5200×3500×6000 |
6800×4000×8500 |
7000×4800×9000 |
weight of machint |
4.0T |
8.5T |
8.5T |
