Product Details
Condition: | New | Application: | Film | Plastic Processed: | PE |
Blow Moulding Type: | Extrusion Blow Moulding | Automatic: | Yes | Place of Origin: | Zhejiang, China |
Brand Name: | Huana | Model Number: | SJ-C45 | Voltage: | 380V 50Hz |
Power(W): | 18KW | Dimension(L*W*H): | 2300*2100*2800 | Weight: | 1.8T |
Certification: | CE BV ISO9001:2008 | Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
PE film blowing machine1.high quality
2.high effciencyand high finished products
3.delivery date 30-45days
SJ-C45 Mini Film Blowing Machine mini blow film machine price
...................................................................................................................................................................................................................................
Use:
Its extruder,cylinder and screw rods are made of quality alloy steel that have been nitrized and processed in precision way.Hence it is sound in hardness,durable in corrosion resistance.The specially-designed screw is of sound quality in plasticizing,which helps increase the production capacity,it is applied to blowing the plastic films like low density polythene(LDPE),high density polythene(HDPE) and linear low density polythene(LLDPE).It is widely applied to producing the packing bags for foodstuff,clothing,rubbish bag and vest ones.
Optional Equipment:
1.AUTO LOADER
2.CAST ALUM HEATER
3.AIR SHAFT
4.PNEUMATIC DEVICE
...............................................................................................................................................................................................................................
Main Technical Variables:
Model | SJ-C45 | SJ-C50 |
Screw diameter | Φ45 | Φ50 |
Screw ratio L/D | 28:1 | 28:1 |
Screw speed | 15-100r/min | 15-100r/min |
Main motor power | 7.5kw | 11kw |
Extrusion output(single) | 30kg/h | 35kg/h |
Range of die | Φ50 | Φ60 |
Single layer thickness of film | 0.008-0.08mm | 0.008-0.08mm |
Max folding width of film | 400mm | 500mm |
Installation capacity | 18kw | 22kw |
Overall dimension | 2300×2100×2800 | 2300×2150×2800 |
Weight of machine | 1.8T | 2.2T |
...............................................................................................................................................................................................................................

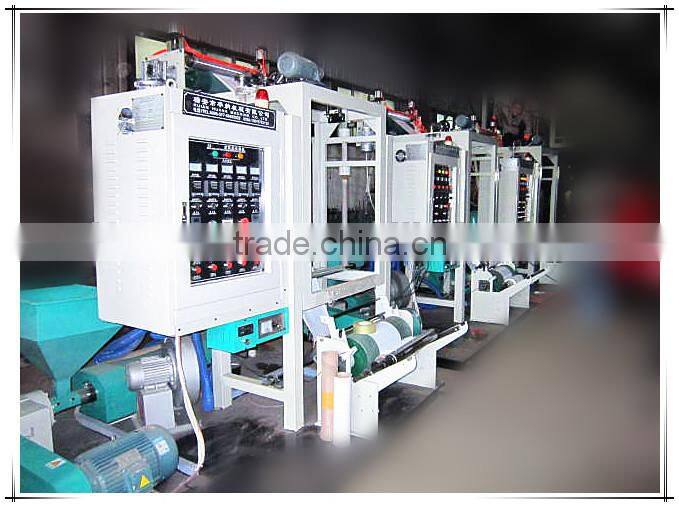

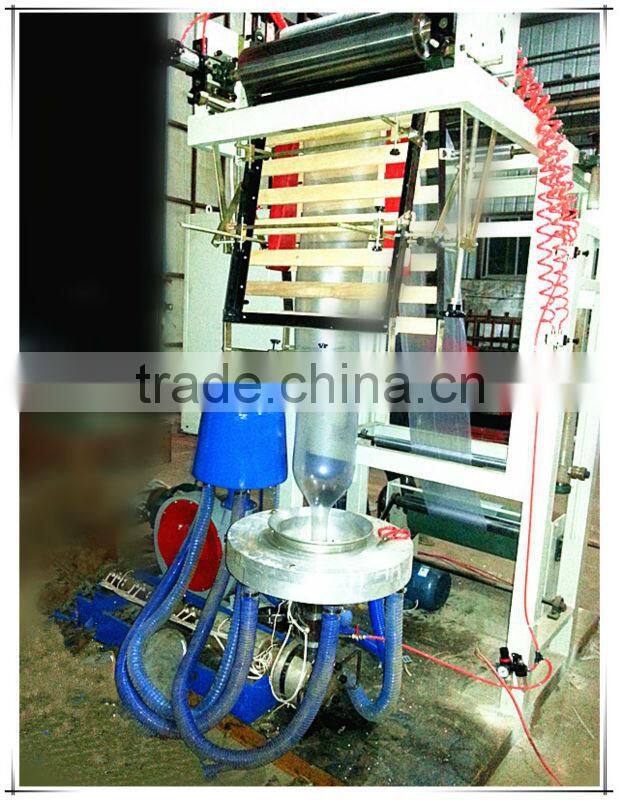

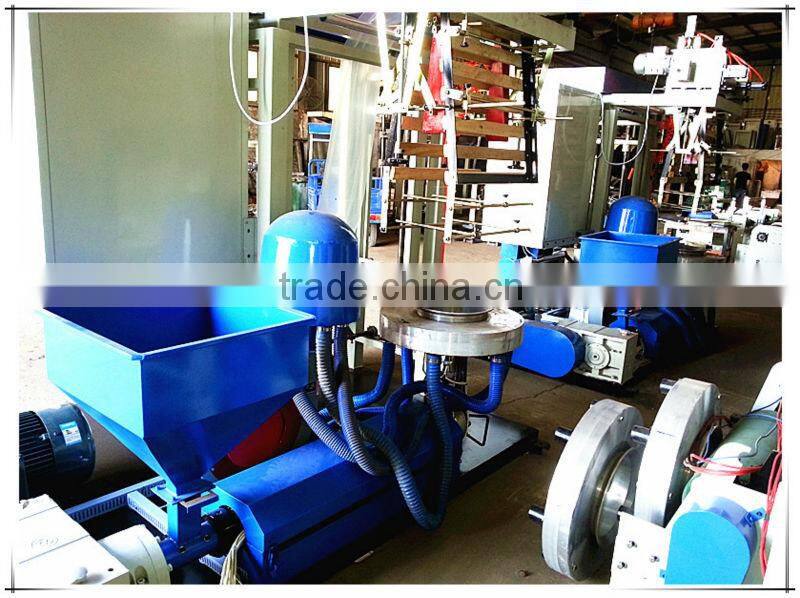

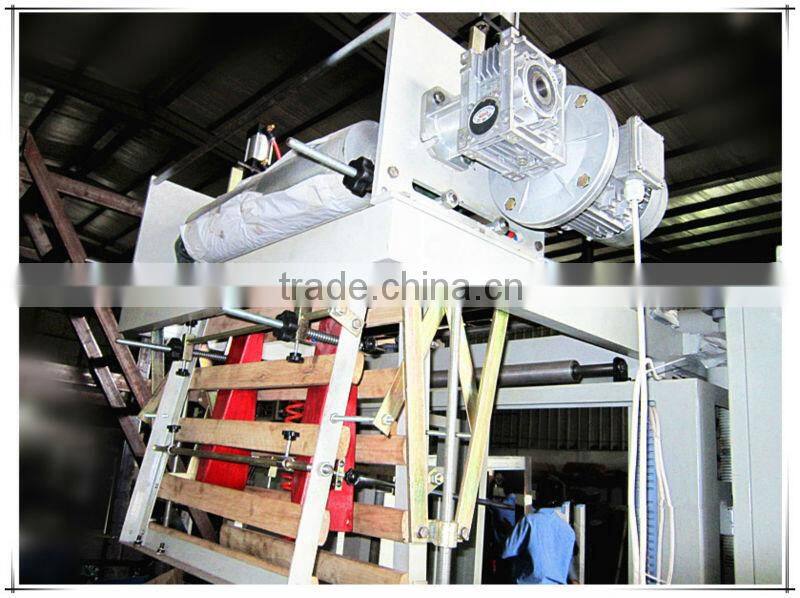

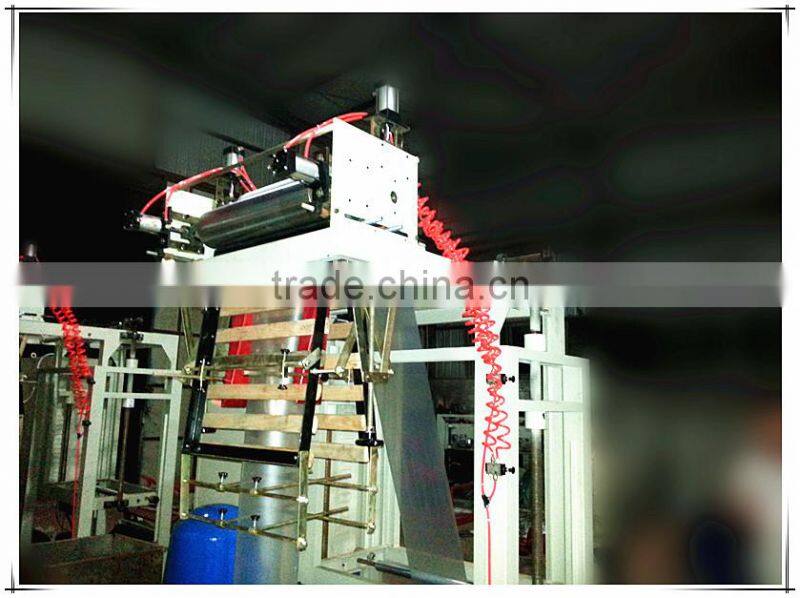

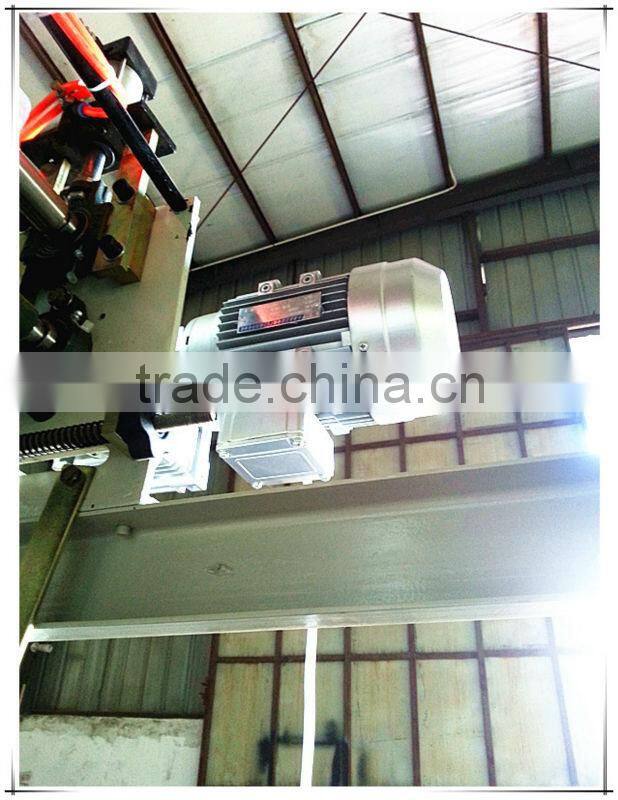

Products show:
............................................................................................................................................................................................................................

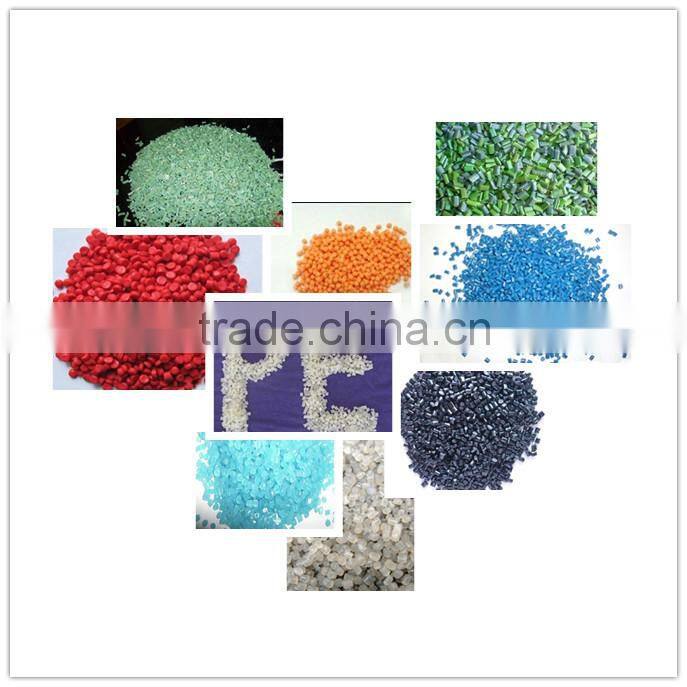

Raw Material:
Finished Samples:
1. Safety first, quality first .
2. Your satisfied is our pleasure.
3. Your happiness is our success.
4. High quality products to provide high quality environment .
...............................................................................................................................................................................................................................
Packaging & Shipping:
1). Port:WENZHOU CHINA.
2). Delivery time: Within 30 days after receiving the deposit.
3). Packaging: In wooden cases or by film.
