Home > Products > Homogenizer /High Shear Mixer/In-line mixer > Pipeline Stainless Steel Homogenizing Emulsion Mixer/High Speed Emulsifier

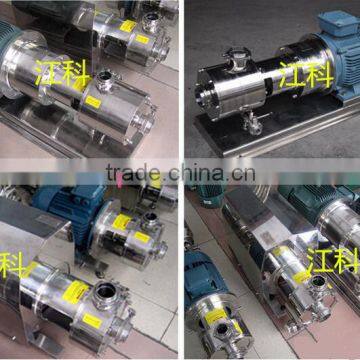

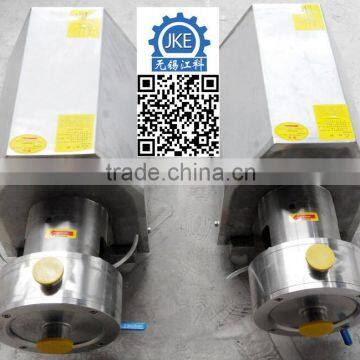

Pipeline Stainless Steel Homogenizing Emulsion Mixer/High Speed Emulsifier
- 100 Set / Sets per Month
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Mixer Type: | Homogenizer | Product Type: | Toothpaste | ||
Application: | Viscous Fluid | Additional Capabilities: | Milling | Place of Origin: | Jiangsu, China |
Brand Name: | JKE | Model Number: | PHM | Max. Loading Capacity: | 10000 |
Voltage: | 220V~480V, 220V | Power(W): | 0.75KW~45KW, 5.5kw | Dimension(L*W*H): | 500*800*1200 |
Certification: | CE, ce; iso9001 | Warranty: | 12 month, 18 months |
Product Description
Pipeline Stainless Steel Homogenizing Emulsion Mixer/High Speed Emulsifier

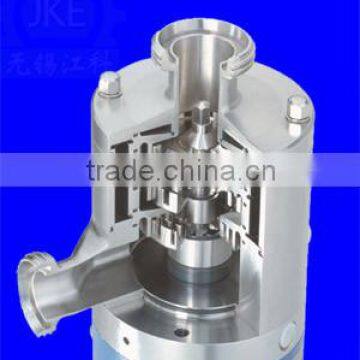

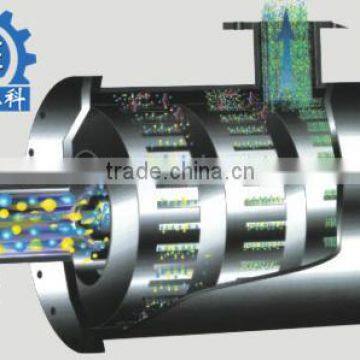

Inline mixer is a kind of high performance device which used for producing continually or circularly dealing with delicate material. In the working chamber there are 1-3 sets antithetic occlude stator and rotor. The rotor runs in high speed to cause suction by changeable running order to absorb the material. Material is dispersed, cut and emulsified in shortest time by stator and rotor dispersing, emulsifying step by step. The diameter of the grain becomes smaller sharply. The transmission shaft in the cavity adopts cantilever type. Flexible clutch connects the motor and main bearing in the bearing box, it improves the running quality of the transmission shaft. It is a high-performance pump together with mixing, dispersing, crashing, emulsifying and transporting.
1.Suitable for liquid - liquid homogeneous, liquid - liquid - emulsification, powder dispersion and other processes, the machine can be directly connected with the pipe type container. The transformation of new projects and old equipment is very simple, applicable a series type production process or the cycle of production process with a continuous operation. According to the requirements of the process, it is suit for the production environment of atmospheric pressure, high pressure or high temperature. It is suitable for middle or large continue production or circularly producing process. According to the different rotor, it can be divided into: rough tooth type, middle tooth type, thin tooth type etc.
2.The flow range in the table means the data when the media is water. Adjusting speed adopts variable speed or variable speed inverter. It can work together with cooling or heating device.
3.Interface way can choose (hoop, thread, and flange)
4.Material of the pump body can choose SS 304, SS 316, and SS316L.
5.Sealing material: Standard rubber ring is silicone rubber, according to the media requests; you can choose fluorine rubber, EPDM, PTFE
Food Industry:milk, bean milk, fruit juice, rice & peanut milk, jam, jelly, cheese, salad dressing, ice cream, chocolate, food additives, food flavors and fragrances, and thickners such as CMC, and modified starch fast-dissolving etc.
Nanomaterials:nanomaterials such as ultrafine CaCO3 and white carbon black depolymerization and nanoparticles application in solid-liquid dispersion etc.
Fine Chemicals:defoamers, hot melt adhesives, sealants, glues, wax emulsions, flocculants, surfactants, cutting fluids and rust-proof emulsion etc.
Biomedicine:ointment, lotion, creams, injections, anti-bacterial agent, fat emulsion, microcapsule emulsion, cells broking, the sugar coating and filler dispersion etc.
Daily Chemical Industry: hand cream, foundation cream, lipstick, facial cleanser, daily chemical flavors and fragrances, detergents, shampoo, disinfectant lotion, all kinds of leather and the furniture polish etc.
Other industries:Petrochemicals, paint and ink, textile auxiliaries, paper industry, plastics and rubber etc.
Single stage:
Model
| Single stage stator rotor (three stator, two rotor) | |||||||
PHM-3 | PHM-5 | PHM-7 | PHM-11 | PHM-18 | PHM-22 | PHM-30 | PHM-37 | |
Powder(KW) | 3KW | 5.5KW | 7.5KW | 11KW | 18.5KW | 22KW | 30KW | 37KW |
RPM | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 |
Capacity(T/H) | 1 | 2.5 | 3 | 5 | 8 | 8 | 10 | 15 |
Two stage:
Model
| Two stage stator (first stage: two stator, two stator) (second stage: three stator and three rotor) | |||||||
PHM-3 | PHM-5 | PHM-7 | PHM-11 | PHM-18 | PHM-22 | PHM-30 | PHM-37 | |
Powder(KW) | 3KW | 5.5KW | 7.5KW | 11KW | 18.5KW | 22KW | 30KW | 37KW |
RPM | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 |
Capacity (T/H) | 0.5 | 1.5 | 2 | 3 | 5 | 5 | 8 | 10 |
Three stage
Model
| Three stage stator rotor (first level: a stator, a rotor) (second levels: two stator, two layers of the rotor) (third levels: three stator, three rotor) | |||||||
PHM-3 | PHM-5 | PHM-7 | PHM-11 | PHM-18 | PHM-22 | PHM-30 | PHM-37 | |
Powder(KW) | 3KW | 5.5KW | 7.5KW | 11KW | 18.5KW | 22KW | 30KW | 37KW |
RPM | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 |
Capacity(T/H) | 0.35 | 1.2 | 1.5 | 2.5 | 4 | 4 | 6 | 8 |
1. The above machine which we supply it to you, we can give you 12 month after sales warranty.
2. Maintenance services: any malfunction happened, once you enquiry us, we will reply you within 48 hours except the special reasons.
3. Any damage except the wrong operation during warranty period is repaired freely. We guarantee will send it to customer by DHL, Fedex, UPS etc. If we have parts in our warehouse ,we will send within 24 hours, if we don't have it in our warehouse, we will manufacture it with our fast time.
4. Lifelong services: we provide lifelong services for all the products we sold out, and supply the spare parts with discount price.
5. We can also send our engineer to you factory to install the equipment and train your staff if you need, but the Buyer should pay the round air ticket cost and arrange the hotel accommodation as well as the means for Seller’s engineer. Our engineers will train your staff to operate the machine during the period of installation and commissioning, and they will not leave from you side until your staff can operate it properly and normally. The customer need pay 80 USD/day for our engineer.
6. Certificate services: we can provide related certificates to customers freely according to the request of customers. Like Form A , Form E, Certificate of origin, CE, Free fumigation certificate etc.
7. Inspection services: you can ask the third part inspection company or your inspector to inspect the products before shipment. Also, we will send the detail information for the machine, it include manual, video, photos, Circuit diagram etc.
8. Shipment document service: We guarantee that after receiving all of shipment files, we will send it to customer within 24 hours by DHL, Fedex, UPS etc. For Bill of loading, customer can choose original or Telex release.
9.The customer can contact with seller by phone, e-mail, Skype etc, we promise will keep our mobile is open full days (24 hours).
