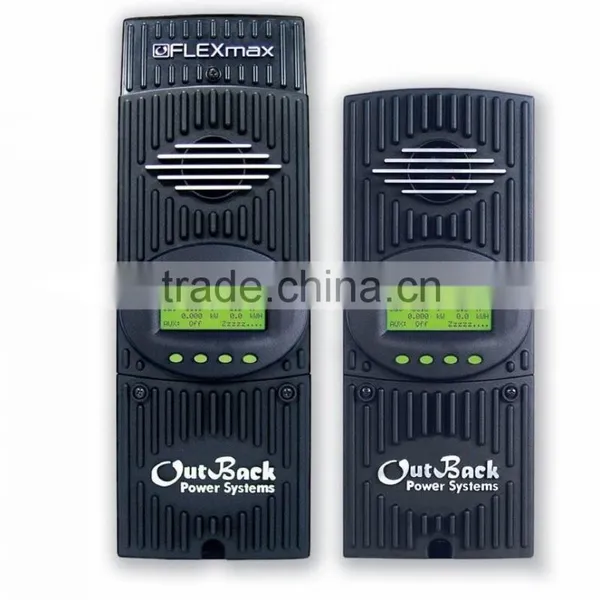

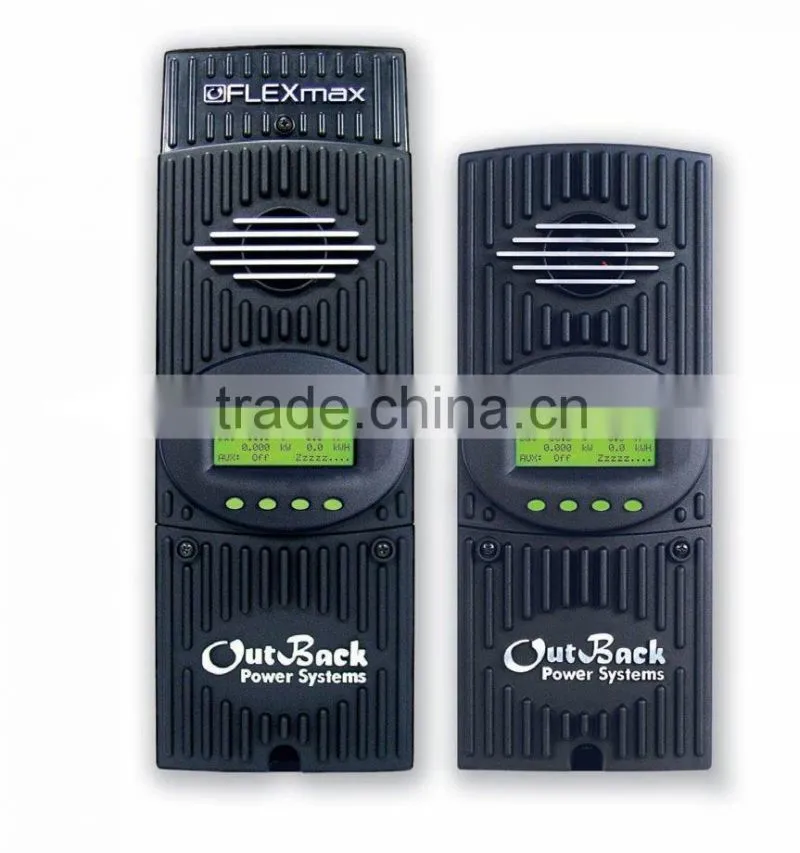

Outback MPPT solar charge controller FLEXmax80A
A charge controller’s main job is to optimize a PV array’s output which can fluctuate based on shading and temperature variables found on the average roof. OutBack’s FLEXmax TM Controller is anything but average—so rugged and reliable that it’s used by NASA on solar arrays in high altitude testing 20 miles
over Antarctica.
FLEXmax charge controllers truly represent innovation in Maximum Power Point Tracking (MPPT) technology, which enables them to increase the yield from a solar photovoltaic (PV) array as much as 30% over conventional designs. At the industry’s first multi voltage MPPT and a landmark design, OutBack’s FLEXmax series
is the most copied controller on the market today. FLEXmax Controllers support a wide variety of system designs, battery chemistries, and integrate seamlessly in terms of system data management and programming.
The innovative FLEXmax MPPT software algorithm is both continuous and active, increasing photovoltaic arraypower yield up to 30% compared to non MPPT controllers.Thanks to active cooling and intelligent thermal
management cooling, both FLEXmax charge controllers can operate at their full maximum current rating, 60 amps or 80 amps respectively, in ambient temperatures as high as 104°F (40°C).
FLEXmax Charge Controllers incorporate the revolutionary features first developed by OutBack Power, including support for a wide range of nominal battery voltages and the ability to stepd own a higher voltage solar
array to recharge a lower voltage battery bank. A built in, backlit 80 character display shows the current status
and logged system performance data for the last 128 days at the touch of a button. Integrated OutBack network communications capability allows FLEXmax Series Charge Controllers to be remotely programmed and monitored via a MATE system display and provides complete system integration.
Specification of FLEXmax 80 - FM80-150VDC
| Nominal Battery Voltages | 12, 24, 36, 48, or 60VDC (Single model - selectable via feld programming at start-up) |
| Maximum Output Current | 80A @ 104ºF (40ºC) with adjustable current limit |
| NEC Recommended Solar Array STC Nameplate |
12VDC systems 1000W / 24VDC systems 2000W, 48VDC systems 4000W / 60VDC Systems 5000W |
| PV Open Circuit Voltage (VOC) | 150VDC absolute maximum coldest conditions |
| Standby Power Consumption | Less than 1W typical |
| Power Conversion Efciency | 97.5% @ 80A in a 48VDC System - Typical |
| Charging Regulation | Five Stages: Bulk, Absorption, Float, Silent and Equalization |
| Voltage Regulation Set points | 10 to 60VDC user adjustable with password protection |
| Equalization Charging | Programmable Voltage Setpoint and Duration - Automatic Termination when completed |
| Battery Temperature Compensation | Automatic with optional RTS installed |
| Voltage Step-Down Capability | Can charge a lower voltage battery from a higher voltage PV array - max 150VDC input |
| Programmable Auxiliary Control Output | 12VDC output signal which can be programmed for diferent control applications (maximum of 0.2 amps DC) |
| Status Display | 3.1” (8 cm) backlit LCD screen - 4 lines with 80 alphanumeric characters total |
| Remote Display and Controller | Optional MATE3, MATE or MATE2 with RS232 Serial Communications Port |
| Network Cabling | Proprietary network system using RJ 45 Modular Connectors with CAT5 Cable (8 wires) |
| Hydro Turbine Applications | Consult factory for approved turbines |
| Operating Temperature Range | -40ºC to 60ºC (power automatically derated above 40ºC) |
| Environmental Rating | Indoor Type 1 |
| Warranty | Standard 5 year / Available 10 year |
| Options | Remote Temperature Sensor (RTS), HUB4, HUB10, MATE, MATE 2, MATE3 |
| Certifcations | ETL Listed to UL1741, CSA C22.2 No. 107.1 |
Packaging photos of the products:
Welcome to inform your inquiry and hope we can help you any time!
