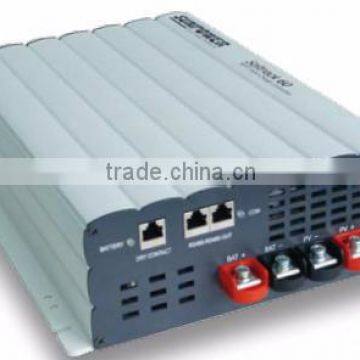

MPPT 40/60A 12/24/36/48V solar charge controller
Our project:(Click picture to view more)
Introduction:
Soltrack MPPT series controller is a leading product in the industry, which has high cost performance.
The advance MPPT tracking function can increase the PV system energy output by 30%, which can lower the energy cost significantly. Max input voltage is 150V, makes it flexible to use kinds of PV modules. Input/output high frequency isolated design makes it possible to use thin-film modules.
Soltrack MPPT series controller can work at rated charging current under 40°C ambient temperature based on its advanced cooling design. LED indicating lights can work under -25°C ambient temperature. The single version display mode REMOTE01 can display the parameters through LCD also.
Product features:
Intelligent and high efficiency :
- Ø MPPTtracking maximizesthe power transformation
- Ø Optional LCDcanbe used for displaying and adjusting parameters
- Ø Temperature controlledfan
- Ø 12V/24V/36V/48V automatic recognition
- Ø Parallel connection allowed, simultaneous display
- Ø Battery discharge management (dryport)
Safety and reliability :
- Ø Input/output high frequency isolated design maximizes the operation safety.
- Ø Intelligent multiple protection : Over temperature / reverse protection / low voltage protection
- Ø Temperature compensation enhances long-term Reliability
Remote control :
- Ø Remote switcher feature.
- Ø Display controller parameters remotely.
Type |
Soltrack 40 |
Soltrack 60 |
Electrical parameter | ||
|
Rated charging current |
40A adjustable (40°C) |
60A adjustable (40°C) |
|
Recommended solar system |
12Vdc 480W/ 24Vdc 960W/ 36V 1440W/ 48Vdc 1920W |
12Vdc 720W/ 24Vdc 1440W/ 36V 2160W/ 48Vdc 2880W |
|
Max. input voltage (Voc) |
150V |
|
System voltage |
12V/24V/36V/48V |
|
No load current draw |
<2W |
|
|
Temperature compensation |
-4mV/°C/cell |
|
Charging efficiency |
>98% |
|
|
Voltage Step-Down Capability |
Can charge a lower voltage battery from a higher voltage PV array - Max 150 VDC input |
|
Network Cabling |
Proprietary network system using RJ 45 Modular Connectors with CAT 5e Cable (8 wires) |
|
Data Logging |
Optional (REMOTE01, ADM-01, ADM-BLUE, ADMGPRS) |
|
Charging process |
bulk, absorption, float |
|
|
Hydro Turbine Applications |
Consult factory for approved Turbines |
|
Float charge |
13.7V/27.4V/41.1V/54.8V, voltage adjustable |
|
Absorption charge |
14.0V/28.0V/42.0V/56.0V, voltage adjustable |
|
Bulk charge |
14.4V/28.8V/43.2V/57.6V, voltage adjustable |
|
Interface |
RS485, MODBUS protocol |
|
Dry port |
Remote display, low voltage disconnect, generator start |
|
Operation condition | ||
Temperature |
Operation temperature is -20°C - 50°C (power derated when T>40°C), storage and transportation temperature is -30°C - 70°C. |
|
Altitude |
≤3000m (if altitude ≥1000m, power derated 1% as altitude raise 100m.) |
|
General data | ||

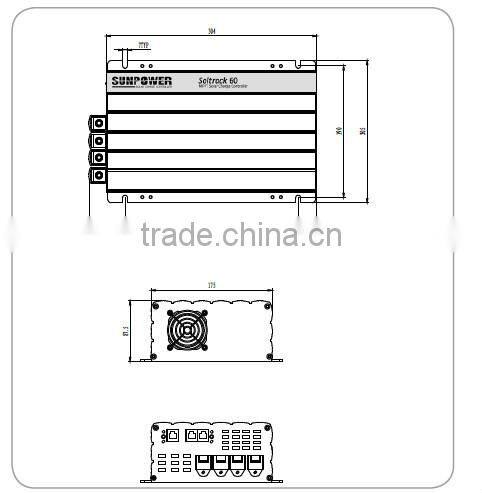

Dimension |
328mm x 205mm x 87.5mm |
|
Weight |
3.7 KG / 4.2 KG |
|
Safety | ||
Safety Standards |
EN60950-1, IEC 62109 |
|
EMC Standards |
EN55022, EN55024, Class A |
|
Protection | ||
Over temperature protection |
70°C (recovery after cooling) |
|
Reverse protection |
Input/output of controller |
|
Protection class |
IP21 |
|
Configuration:

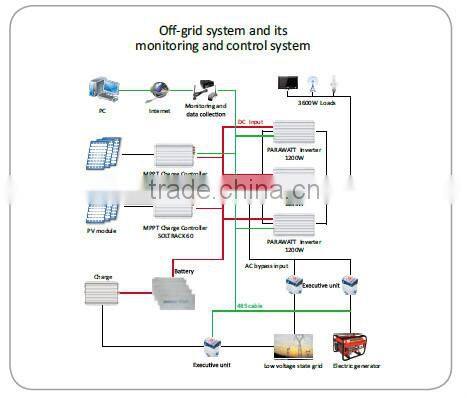

Product application:
In the course of cooperation with domestic and foreign outstanding enterprises that EASTWEST learned from their advanced technology and management experience. EASTWEST have high quality products, professional technology and 10 years of experience with application all over the china renewable energy market, all of this had prove our strength.
Recommend products:(Click text to browse)
PWM 10/15A Pure sine wave 350W 10/15/20W DC
PWM 20/30/40A Pure sine wave 600/800W 30/40W DC
MPPT 40/60A Pure sine wave 1000W 100W DC+AC
Pure sine wave 1200/1500W
500W 750W
1000W 3000W
Other specifications, please contact me!
If you are interested in this products, please feel free to contact with me.
