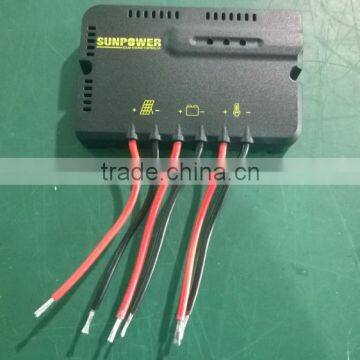

Solar charge controller PWM 10/15A 12/24V with LCD Water-proof
Introduction:
The maximum current of SUNPOWER line controller can reach up to 15A at automatically recognized 12V or 24V. The circuit board is completely electronically protected and with the LED user interface, it is easy to check the battery voltage and all the fault messages at any time. PWM and three-stage automatically controlled charging mode protect the battery well and realize a long-term best working state of the battery. With unique water-proof design, the controller can work well in moisture, rainy or even worse environment.
Product features:
- Ø Low consumption series-type controller
- Ø PWM control
- Ø Automatic choice of charging mode (Equalizing charging, quick charging, floating charging )
- Ø Automatic choice of discharging mode (general, single period timing, segmentation timing)
- Ø Automatic detection of voltage--12V/24V
- Ø Automatic current adjustment according to load
- Ø Common positive grounding
- Ø 3 LEDs show state of charging and fault messages
Technical parameters:
Electrical parameter | ||
Item |
SC10.10 |
SC15.10 |
Maximum charging current |
10A |
15A |
Maximum load current |
10A |
15A |
System voltage |
12V/24V |
|
Maximum self-consumption current |
<4mA |
|
Final charging voltage (floating charge) |
13.8V(27.6V) |
|
Quick charging voltage |
14.0V(28.0V) |
|
Equalizing charging voltage |
14.4V(28.8V) |
|
Low voltage recovery point (LVR) |
12.6V(25.2V) |
|
Temperature compensation |
-4.0mV/℃/cell |
|
Protection | ||
Protection class |
IP67 |
|
Deep discharge protection(LVD) |
11.0V(22.0V) |
|
Overvoltage protection point |
15.5V(31.0V) |
|
Operation condition | ||
Humidity |
0~99% |
|
Altitude |
≤3000m |
|
Working environment temperature |
-25℃~ +50℃ |
|
Storage Temperature |
-30℃~ +70℃ |
|
General data | ||

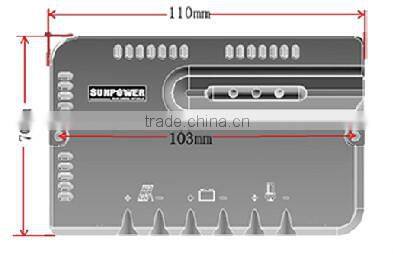

Mounting hole size |
D = 3mm |
|
Dims |
110×70×24mm |
|
Weight |
140g |
|
Configuration:
Recommend products:(Click text to browse)
PWM 10/15A Pure sine wave 350W 10/15/20W DC
PWM 20/30/40A Pure sine wave 600/800W 30/40W DC
MPPT 40/60A Pure sine wave 1000W 100W DC+AC
Pure sine wave 1200/1500W
500W 750W
1000W 3000W
Other specifications, please contact me!
If you are interested in this products, please feel free to contact with me.
