Home Solar Panel Kit /solar Energy Power /Solar Panel System 100w

FOB Price

US$ 367 - 390 / Set

10 Sets(Min. Order)

Port Tianjin port
Payment TermsT/T L/C D/P D/A Money Gram Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Beijing, China	Brand Name	EWE
Model Number	Sokit series	Specification	Mini
Application	Home	Output Voltage (V)	12Vdc
Load Power (W)	/	Solar Power (W)	100W
Work Time (h)	12 hours

Product Description

100W 12/24V Solar energy system for home

Product Description

Introduction:

Solkit series Solar System is a leading product in the industry. Designed with the highest standards in the industry, based on high efficiency solar module and control system, the Solkit series Solar System makes the solar energy affordable to everyone. Using high standard battery charge controller, inverter and battery, the system's outputs are stable and reliable, whose battery condition is also visible on the surface of the system.

System parameters:

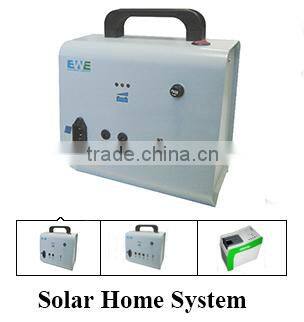

Solkit 65/80 Solar Home System
Solar Module
Type	Poly-crystalline
Power	100W
Open circuit voltage	21.92V
Short circuit current	5.94A
Peak voltage	18.00V
Peak current	5.56A
Max. system voltage	1000V
Dimension	1155X676mm
Weight	9.5KG
Battery
Type	Lead-acid
Capacity	80Ah or 100Ah
Rated voltage	12V
Max. charging current	25A
Life	10 years

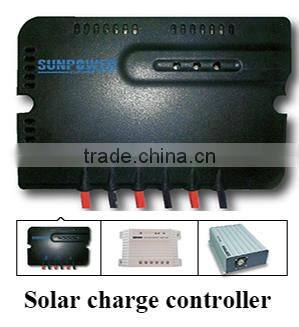

Charge controller
Type	PWM
System voltage	12V/24V
Max. charging machine	10A
Max. output current	10A
Over discharge protection	Yes

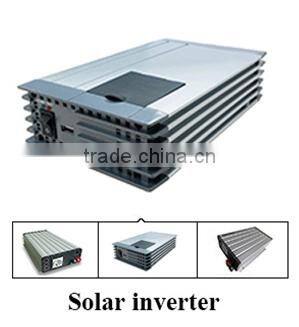

Sine wave inverter
Type	Pure sine wave
Power	350W
Rated input voltage(DC)	12V
Rated output voltage(AC)	220V/230V/240V
Output frequency	50HZ/60HZ
Box
Type	Galvanized steel with plastic spray
Interface	4x12VDC, 2x5V USB

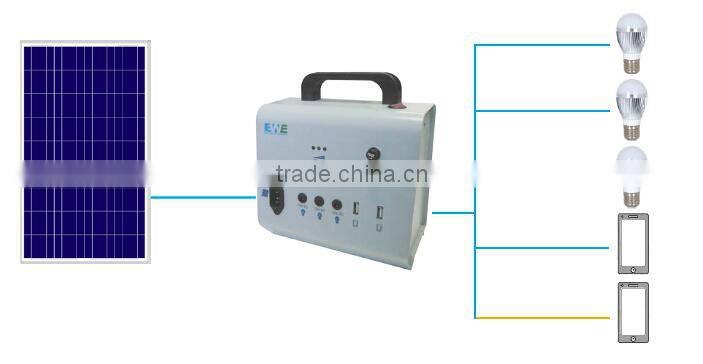

System Connection Diagram:

Our Services

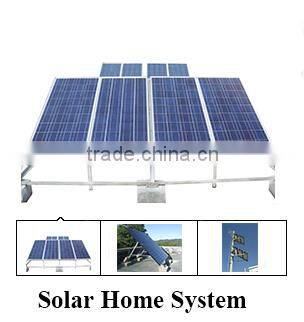

Our project:(Click picture to view more)

Company Information

Our Mission: To provide safe, clean and efficient electricity.

Main business: inverter, solar controller, charger, system solution, etc

Beijing EastWest Energy Technology Co., Ltd. (EastWest) eastablised in 1997, is one of the easliest PV companies and inverter manufacturers in China, which is also an National High-Tech Enterprise. We have been engaged in reaseaching and developing distributed power products for more than a decade. Advanced management philosophy enabled us gathered researchers experienced in multinational power companies and from institutions of higher learning, enable its self-developed products have reached the leading level in the industry.

Cooperation

In the course of cooperation with domestic and foreign outstanding enterprises that EASTWEST learned from their advanced technology and management experience. EASTWEST have high quality products, professional technology and 10 years of experience with application all over the china renewable energy market, all of this had prove our strength.
