DC AC off Grid Solar Power Inverter 350W 12/24V Pure Sine Wave

DC AC off Grid Solar Power Inverter 350W 12/24V Pure Sine Wave thumbnail-1
DC AC off Grid Solar Power Inverter 350W 12/24V Pure Sine Wave thumbnail-2
DC AC off Grid Solar Power Inverter 350W 12/24V Pure Sine Wave photo-1
DC AC off Grid Solar Power Inverter 350W 12/24V Pure Sine Wave photo-2
US$ 65 - 70 MOQ: 10 Units
Key Specifications
Get Latest Price
Place of Origin:
Beijing, China
Brand Name:
SUNPOWER
Model Number:
PW 350
Contact Supplier Request Quote Chat Now
EastWest Energy Technology Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Beijing, China
Brand Name SUNPOWER
Model Number PW 350
Output Power 301 - 400W
Output Type Single
Size 199x124x49mm
Weight 0.8kg
Input Voltage 12/24V
Output Voltage 110/115/120/220/230/240v ± 3%
Type DC/AC Inverters
Output Frequency 50/60 HZ ± 1%
Output Current /

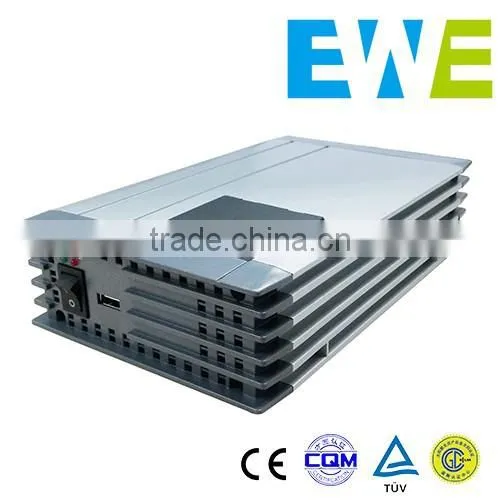

350W 12/24V Pure sine wave inverter

Our Services

DC AC off Grid Solar power Inverter 350W 12/24V pure sine wave

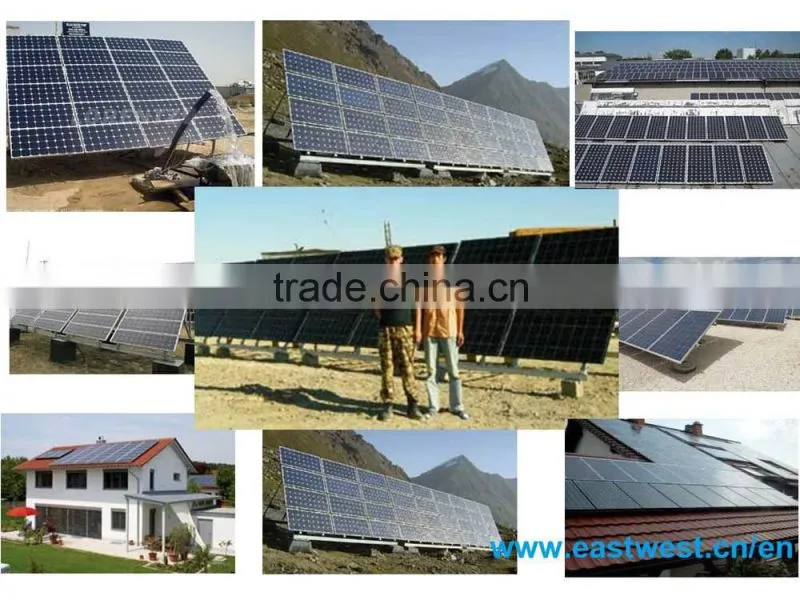

Our project:(Click picture to view more)

DC AC off Grid Solar power Inverter 350W 12/24V pure sine wave



Product Description

  Introduction:

DC AC off Grid Solar power Inverter 350W 12/24V pure sine wave

ParaWatt series inverter is a leading product in the industry, which has high cost performance. LED indicating lights can work under -25°C ambient temperature. Advanced circuit design and high standard choice of components maximized its adaptability to inductive and capacitive loads. ParaWatt series inverter can be used in cars, yachts and solar systems. The superior performance and reliable quality makes ParaWatt series inverter the best choice for your requirements.





Product features:



  • Ø  DC 12V/24V input, AC 220V output
  • Ø  High efficiency (THD<3%)
  • Ø  Input & output fully isolation design
  • Ø  High efficiency 87%
  • Ø  High surge capable of starting motor load
  • Ø  EMC, multi-protection
  • Ø  Temperature controlled cooling fan
  • Ø  Ultra-compact design, low weight
  • Ø  Brackets can be detachable and mounted; suit for different environments
  • Ø  Output connector is designed on the top of chassis, suit for all kinds of connection modes
  • Ø  USB interface 5V/12A

Protection functions:

  • Ø  Low voltage
  • Ø  Over voltage
  • Ø  Over load
  • Ø  Over temperature
  • Ø  Short circuit

Technical parameters:


Model

PW350

Output

Output power

350W

Surge rating

700w

Frequency

50/60Hz ±3%

Output wave

Pure Sine Wave (THD<3%)

AC output voltage

220V/230V/240V±3%

Efficiency

88%(12V)/ 89%(24V)

Input

DC input voltage

12Vdc/24Vdc

Input voltage range

10.5~15V /20~30V

No load current draw

<0.6A /<0.3A

Operation condition

Humidity

0~99%

Altitude

­3000m

Operating temperature range

-2 0℃~ +40℃

Store temperature range

- 10℃~ +50℃

Protection

DC input voltage

12V/24V

Low voltage shut

10.5±0.3VDC/21.0±0.3VDC

Low voltage resume

12.0±0.3VDC/24.0±0.3VDC

High voltage shut

15.0±0.5VDC/30.0±0.5VDC

High voltage resume

14.5VDC/29.0VDC

Auto resume

Yes

Auto protection

Over load, Over Voltage, Low Voltage, Over temperature, Short circuit

Cooling

Temperature and loading controlled cooling fan

General data

Dimension

199×124×49mm

Weight

0.8 KG

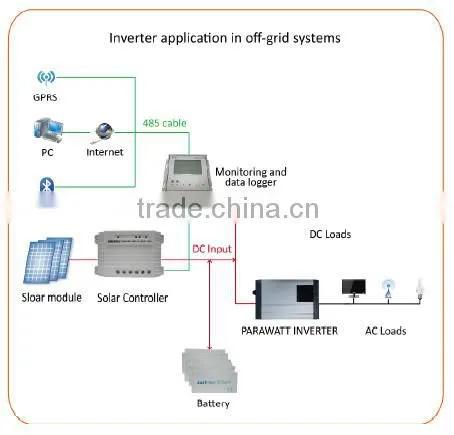

Product application:



DC AC off Grid Solar power Inverter 350W 12/24V pure sine wave



Certification&Patent

DC AC off Grid Solar power Inverter 350W 12/24V pure sine wave



Company Information



Our Mission: To provide safe, clean and efficient electricity.
Main business: inverter, solar controller, charger, system solution, etc
Beijing EastWest Energy Technology Co., Ltd. (EastWest) eastablised in 1997, is one of the easliest PV companies and inverter manufacturers in China, which is also an National High-Tech Enterprise. We have been engaged in reaseaching and developing distributed power products for more than a decade. Advanced management philosophy enabled us gathered researchers experienced in multinational power companies and from institutions of higher learning, enable its self-developed products have reached the leading level in the industry.
Cooperation

      In the course of cooperation with domestic and foreign outstanding enterprises that EASTWEST learned from their advanced technology and management experience. EASTWEST have high quality products, professional technology and 10 years of experience with application all over the china renewable energy market, all of this had prove our strength.

DC AC off Grid Solar power Inverter 350W 12/24V pure sine wave
