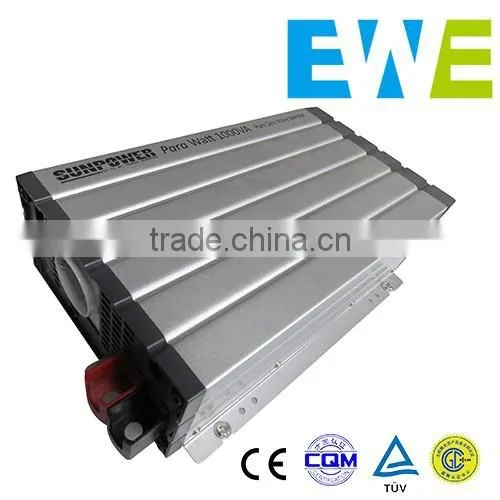

1000W 12/24/48V Pure Sine Wave Inverter

1000W 12/24/48V Pure Sine Wave Inverter thumbnail-1
1000W 12/24/48V Pure Sine Wave Inverter photo-1
US$ 287 - 290 MOQ: 10 Units
Key Specifications
Get Latest Price
Place of Origin:
Beijing, China
Brand Name:
SUNPOWER
Model Number:
PW 1000
Contact Supplier Request Quote Chat Now
EastWest Energy Technology Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Beijing, China
Brand Name SUNPOWER
Model Number PW 1000
Output Power Other, 1000W
Output Type Single
Size 334* 205*87mm
Weight 3kg
Input Voltage 12/24/48V
Output Voltage 110/115/120/220/230/240v ± 3%
Type DC/AC Inverters
Output Frequency 50/60 HZ ± 0.1%
Output Current /

1000W 12/24/48V Pure sine wave inverter

 Introduction:

1000W 12/24/48V Pure sine wave inverterParaWatt series inverter is a leading product in the industry, which has high cost performance. LED indicating lights can work under -25°C ambient temperature. The single version display mode REMOTE01 can display the parameters through LCD also.



Designed with the highest standards in the industry, ParaWatt series inverter realizes remotely Controlled, intelligent and high efficiency. The optional data loggers ADM-01, ADM-BLUE, ADM-GPRS can realize monitor and control function through computer, Bluetooth, GPRS respectively, and can monitor and control several inverters at the same time. Advanced circuit design and high standard choice of components maximized its adaptability to inductive and capacitive loads. ParaWatt series inverter can be used in cars, yachts and solar systems. The superior performance and reliable quality makes ParaWatt series inverter the best choice for your requirements.





Product features:

Intelligent and high efficiency:

  • Ø  Intelligent ‘power saving mode‘, no higher than 5W.
  • Ø  Intelligent cooling fan speed control determined by Loads.
  • Ø  Pure sine wave output (THD<3%) for wide range of Applications and different environment.

Safety and reliability:

  • Ø  Input/output isolated design maximized the operation Safety.
  • Ø  Intelligent multiple protection: Input low voltage /Overload / Short circuit / Low battery alarm / Input Over voltage / Over temperature.

Convenient:
  • Ø  Modular design enables more flexible and room Saving way to combine and split.

Remote control:

  • Ø  Remote switcher feature.
  • Ø  Display inverter parameters remotely.

Technical parameters:


Model

PW1000

Output

Nominal output power

1000W

Nominal AC voltage

220V/230V/240Vac, 100/110/120Vac

AC power frequency

50/60Hz ±0.1%

Max. efficiency

90%

Output THD

<3%

Crest factor

3:1

Input

Nominal DC voltage

12Vdc/24Vdc/48Vdc

Voltage range

10.5-15.5Vdc (*1, *2, *4)

No load current draw

≤15W

Stand-by current draw

≤7W,power saving mode

Interface

RS485

Operation condition

Working Temperature

-25℃ ~ +50℃

Storage Temperature

-30℃ ~ +70℃

Protection

Input low voltage protection

10.5V/21V/42V protect, 11V/22V/44V

alarm (automatically recovery or not

automatically recovery can be factory

set)

Input over voltage protection

18V/32V/64V protect, 15V/31V/62V

alarm (automatically recovery or not

automatically recovery can be factory

set)

Reverse current protection

Fuse

AC input over voltage

120% rated voltage

AC input low voltage alarm

80% rated voltage

Output over current point1

10m 125%

Output over current point2

10s 150%

Output short circuit

protection

Recovery

Over temperature protection

90°C recovery

Fan fault protection

turn off output, alarm

Safety

Safety Standards

EN60950-1, IEC 62109

EMC Standards

EN55022, EN55024, Class A

General data

Dimension

334mm x 205mm x 87mm

Weight

3 KG







Configuration:

1000W 12/24/48V Pure sine wave inverter




Company Information



Our Mission: To provide safe, clean and efficient electricity.
Main business: inverter, solar controller, charger, system solution, etc
Beijing EastWest Energy Technology Co., Ltd. (EastWest) eastablised in 1997, is one of the easliest PV companies and inverter manufacturers in China, which is also an National High-Tech Enterprise. We have been engaged in reaseaching and developing distributed power products for more than a decade. Advanced management philosophy enabled us gathered researchers experienced in multinational power companies and from institutions of higher learning, enable its self-developed products have reached the leading level in the industry.
Related Products

Recommend products:(Click text to browse)

 1000W 12/24/48V Pure sine wave inverter      1000W 12/24/48V Pure sine wave inverter      1000W 12/24/48V Pure sine wave inverter

  PWM 10/15A                  Pure sine wave 350W                    10/15/20W DC

  PWM 20/30/40A             Pure sine wave 600/800W             30/40W DC

  MPPT 40/60A                 Pure sine wave 1000W                  100W DC+AC

                                         Pure sine wave 1200/1500W

1000W 12/24/48V Pure sine wave inverter

     500W      750W

    1000W     3000W

   Other specifications, please contact me!
