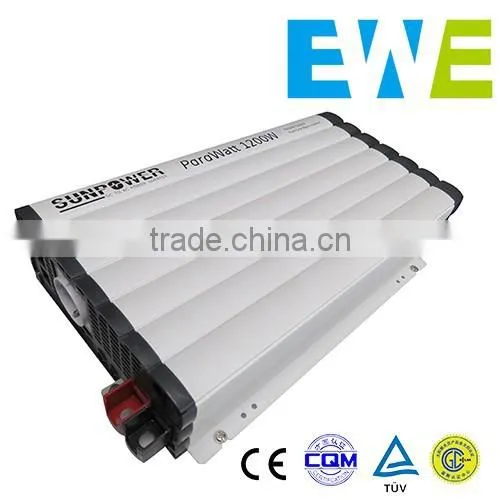

1200/1500W 12/24/48V Pure sine wave inverter
Introduction:
ParaWatt series inverter is a leading product in the industry, which has high cost performance. LED indicating lights can work under -25°C ambient temperature. The single version display mode REMOTE01 can display the parameters through LCD also.
Designed with the highest standards in the industry, ParaWatt series inverter realizes remotely Controlled, intelligent and high efficiency. The optional data loggers ADM-01, ADM-BLUE, ADM-GPRS can realize monitor and control function through computer, Bluetooth, GPRS respectively, and can monitor and control several inverters at the same time. Advanced circuit design and high standard choice of components maximized its adaptability to inductive and capacitive loads. ParaWatt series inverter can be used in cars, yachts and solar systems. The superior performance and reliable quality makes ParaWatt series inverter the best choice for your requirements.
Product features:
Intelligent and high efficiency:
- Ø Intelligent ‘power saving mode‘, no higher than 5W.
- Ø Intelligent cooling fan speed control determined by Loads.
- Ø Pure sine wave output (THD<3%) for wide range of Applications and different environment.
Safety and reliability:
- Ø Input/output isolated design maximized the operation Safety.
- Ø Intelligent multiple protection: Input low voltage /Overload / Short circuit / Low battery alarm / Input Over voltage / Over temperature.
- Ø Modular design enables more flexible and room Saving way to combine and split.
Remote control:
- Ø Remote switcher feature.
- Ø Display inverter parameters remotely.
Model |
PW1200 |
PW1500 |
Output | ||
Nominal output power |
1200W |
1500W |
Nominal AC voltage |
220V/230V/240Vac, 100/110/120Vac |
|
AC power frequency |
50/60Hz ±0.1% |
|
Max. efficiency |
92% |
|
Output THD |
<3% |
|
Crest factor |
3:1 |
|
Input | ||
Nominal DC voltage |
12Vdc/24Vdc/48Vdc |
|
Voltage range |
10.5-15.5Vdc (*1, *2, *4) |
|
No load current draw |
≤15W |
|
Stand-by current draw |
≤7W,power saving mode |
|
Interface |
RS485 |
|
Operation condition | ||
Working Temperature |
-25℃ ~ +50℃ |
|
Storage Temperature |
-30℃ ~ +70℃ |
|
Protection | ||
Input low voltage protection |
10.5V/21V/42V protect, 11V/22V/44V alarm (automatically recovery or not automatically recovery can be factory set) |
|
Input over voltage protection |
18V/32V/64V protect, 15V/31V/62V alarm (automatically recovery or not automatically recovery can be factory set) |
|
Reverse current protection |
Fuse |
|
AC input over voltage |
120% rated voltage |
|
AC input low voltage alarm |
80% rated voltage |
|
Output over current point1 |
10m 125% |
|
Output over current point2 |
10s 150% |
|
|
Output short circuit protection |
Recovery |
|
Over temperature protection |
90°C recovery |
|
Fan fault protection |
turn off output, alarm |
|
Safety | ||
Safety Standards |
EN60950-1, IEC 62109 |
|
EMC Standards |
EN55022, EN55024, Class A |
|
General data | ||

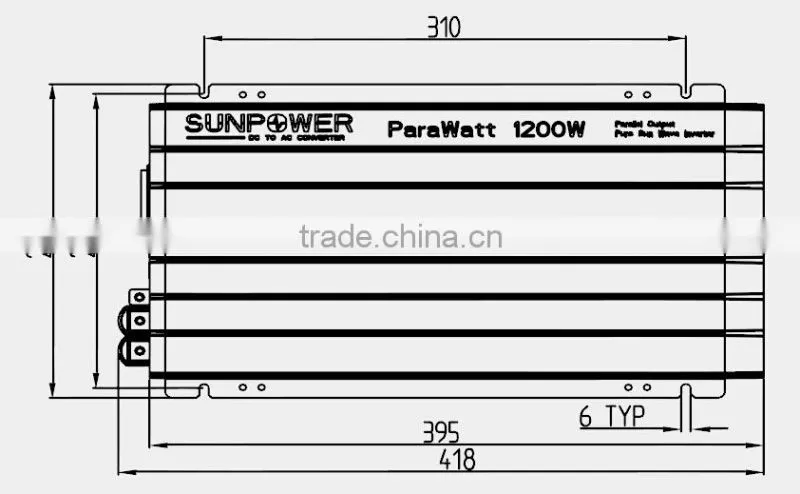

Dimension |
418mm x 240mm x 87mm |
|
Weight |
5 KG |
|
Recommend products:(Click text to browse)
PWM 10/15A Pure sine wave 350W 10/15/20W DC
PWM 20/30/40A Pure sine wave 600/800W 30/40W DC
MPPT 40/60A Pure sine wave 1000W 100W DC+AC
Pure sine wave 1200/1500W
500W 750W
1000W 3000W
Other specifications, please contact me!
If you are interested in this products, please feel free to contact with me.
