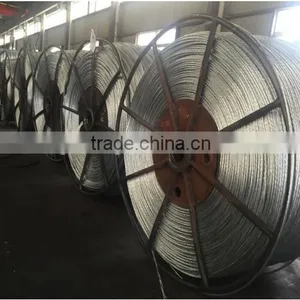

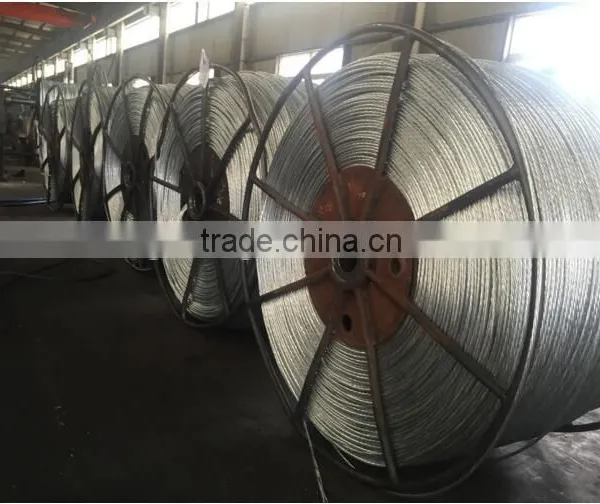

Help Center1.68mm/1.93mm/2.67mm/3.09mm/3.37mm/3.66mm Galvanized Steel Core Wire for ACSR Conductor
Related Products
-
Galvanized Steel Wire/Strand
Our range of Galvanized Steel Wire/Strand(called”steel wire) has been designed for superior efficiency and performance.Steel Wire manufacturing has been Litong Cable’s initial products since established factory in 2000.It has today evolved into the country’s main larger player with a domestic share of over 15% ,esp.in China State Grid and an installed capacoty of over10,000MT.The Main product range comprises of 7 strand and 19 strand.
Product Range
Our Galvanized Steel Wire &Strand include:
.Main Single Wire Size:1.0mm-4.8mm
.Structure of Strand:1*7 &1*19
.Main Production Standard:ASTM B 498,IEC888,GB/T3428, YB(T)13-83,ASTM B 80,ASTM B 500 ,ASTM A 475,BS183,YB/T5004,GB/T-20492,ASTM B 803,ASTM A 640 etc.
.Application:ACSR Conductor,Telecommission,Guy Wire,Messenger,Overhead transmission,stay wire,etc.
Approvals,Certifications and Testing
.ISO9001-2008 Certified
-
.SGS-Tested
.NMCI-Tested
.CANS-Certified
888,GB/T3428, YB(T)13-83,ASTM B 80,ASTM B 500 ,ASTM A 475,BS183,YB/T5004,GB/T-20492,ASTM B 803,ASTM A 640 etc.
-
Wire Diamater(mm) Diamater Tolerance(mm) Weight of Zinc-coating(g/m2) Stress at 1% Extension,Min(Mpa) Tensile Strength
Min.(Mpa)
Elongation in 250mm,Min(%) 1.57-1.90 +0.04,-0.03 210 1310 1450 3 Over 1.9-2.3 +0.04,-0.03 220 1310 1450 3 Over 2.3-2.7 +0.05,-0.05 230 1280 1410 3.5 Over 2.7-3.1 +0.05,-0.05 240 1280 1410 3.5 Over3.1-3.5 +0.08,-0.05 260 1240 1410 4 Over 3.5-3.9 +0.08,-0.05 270 1240 1410 4 Over 3.9-4.5 +0.1,-0.08 275 1170 1380 4 Over 4.5-4.8 +0.1,-0.08 300 1170 1380 4
