Help Center7/16" Galvanized Steel Wire Strands
Related Products
Specifications
1. Stay Wire/Galvanized Steel Wire/Guy Wire
2. BS 183, ASTM A475
3. Right/Left hand lay
4. Zinc coating min.260g/m2
Galvanized Steel Wire/ Stay Wire/ Guy wire
Galvanized Guy Wire 7/16''
1.Product Instructions: Galvanized Steel Stranded Stay Wire guy wire
1) Construction: 1*3,1*7,1*19,1*24,1*37
2) Diameter:As your requirements
3) Length: 1000m--2000m / reel,or accoring to your requirements
4) Lay: right hand regular lay or left hand regular lay
5) Material: Q195,Q235,#45, #60, #70 ,82B#carbon steel
6) Surface: hot dipped galvanized
7) Nominal tensile strength: 350Mpa,480Mpa,700Mpa,850Mpa,1000Mpa,1150Mpa,1300Mpa,1270MPa, 1370MPa, 1570MPa, 1670MPa, 1770MPa
8)Tensile strength Grade: 350 Grade ,480 Grade ,700 Grade ,850 Grade ,1000 Grade ,1150 Grade ,1300Grade (BS183 Standard)

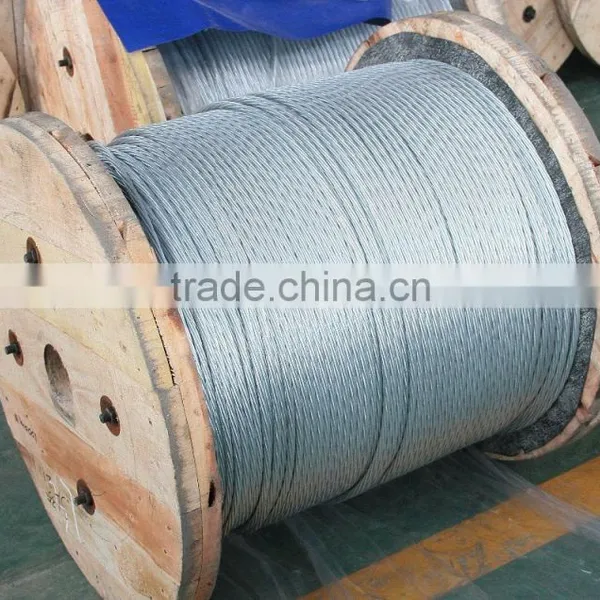

9) Package: in ply-wooden reels,Wooden drum packing
2.Zinc- Coated of steel wire strand Grade
Class A and Class B
3.Standard : ASTM A475 , ASTM B498 ,BS183:1972 ,IEC ,GB
4. Application : Galvanized steel wire strand /guy wire /stay wire is used for ACSR Core , pulling pole ,overhead conductor
5 .Specification : galvanized steel wire /steel strand wire /guy wire /stay wire
