Help CenterHigh Quality DEFI Projected Capacitive Touch Panel
Related Products
-
10 Points 12.1 Inch Projected Capacitive Touch PanelUS$ 77.00 - 77.00MOQ: 1 Piece -
Finger Touch Projected Capacitive Touch Panel With GlassUS$ 70.00 - 70.00MOQ: 1 Piece
-
DEFI 10.1 Inch Projected Capacitive Touch ScreenUS$ 70.00 - 70.00MOQ: 1 Piece
-
10 Finger Point Touch Projected USB Interface Capacitive Touch PanelUS$ 70.00 - 70.00MOQ: 1 Piece
-
Capacitive Multi Touch PanelNegotiableMOQ: 1 Piece

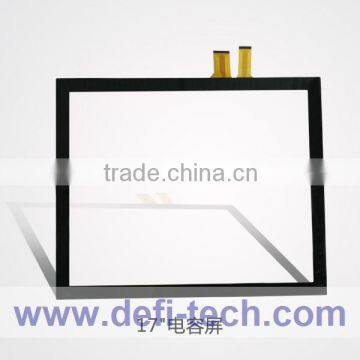

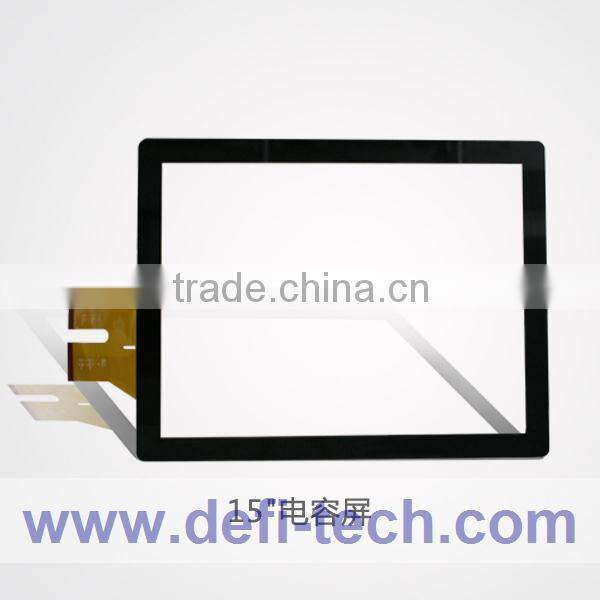

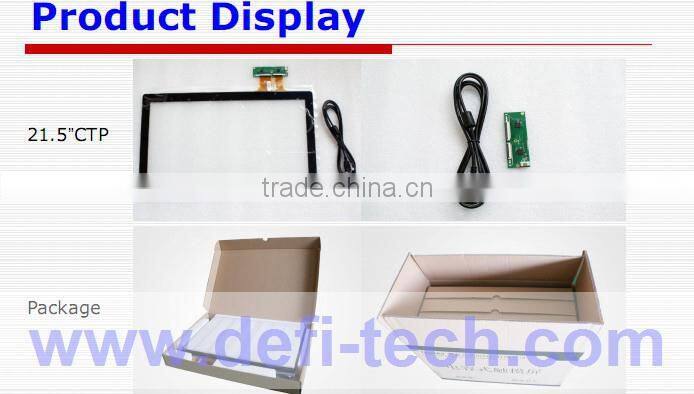

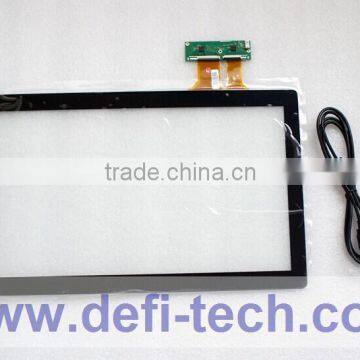

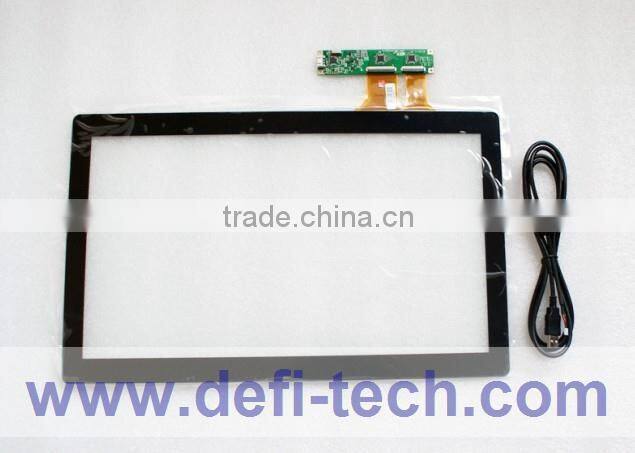

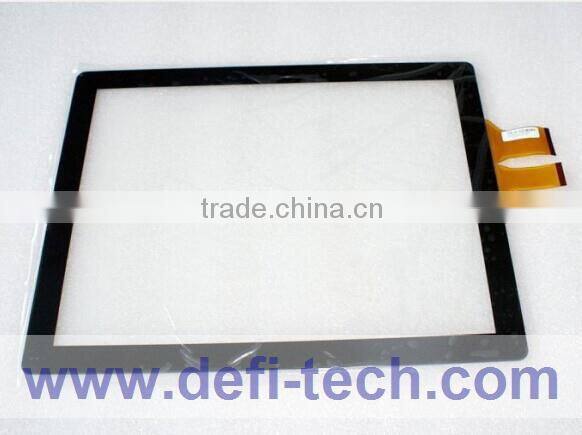

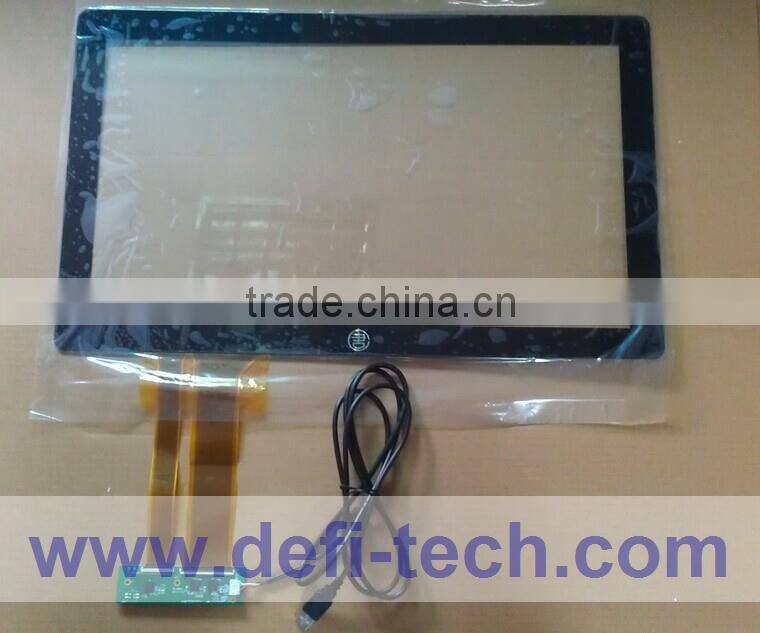

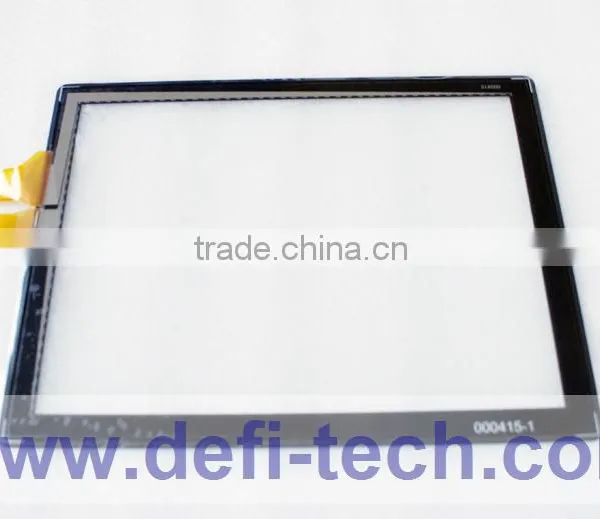

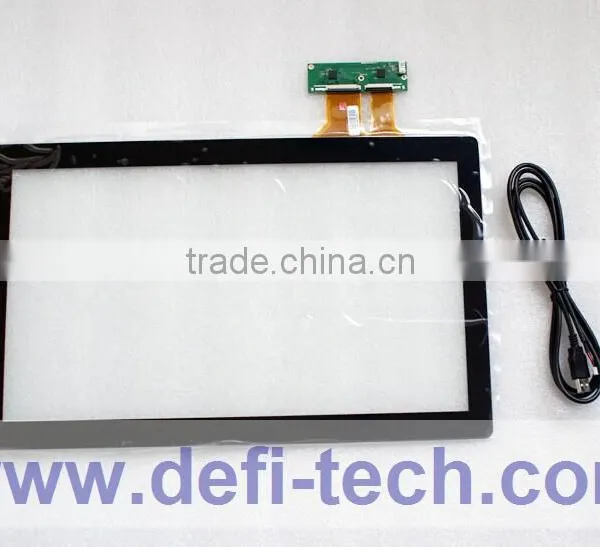

DEFI Projected Capacitive Touch Panel it is a Projected Capacitive Touch Panel with USB interface to support
and compatible with WIN7 O/S for multi-touch( 2 points,4points,10points ) application.
Capacitive Touch Panel
- A wide range of capacitive touch screens
- Annual capacity 3million capacitive touchscreens
- Highest resolution, sensitive and fast response
- Support zoom in/out, display rotation
- New models can be customized in 2week
- All items meet ROHS standards
- Operable in various light conditions, indoor and outdoor

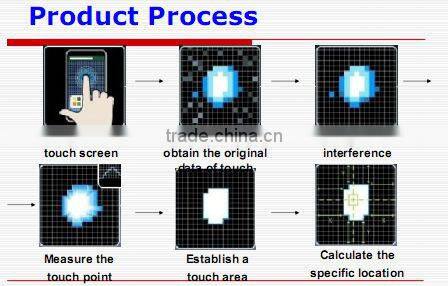

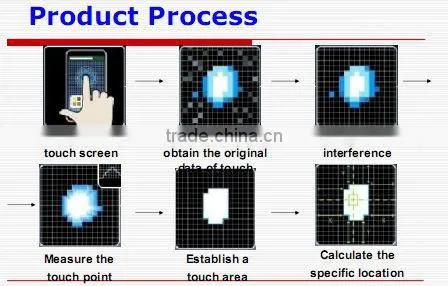

Product Process
- The working principle of the capacitive screen
- Small amount of voltage is applied to the electrodes on the four corners . A human body is an electric conductor, so when you touch the screen with a finger, a slight amount of current is drawn, creating a voltage drop.
- The current respectively drifts to the electrodes on the four corners. Theoretically, the amount of current that
drifts through the four electrodes should be proportional to the distance from the touch point to the four corners.
The controller precisely calculates the proportion of the current passed through the four electrodes and figures
out the X/Y coordinate of a touch point.
GENERAL SPECIFICATIONS:
- Input Method: Finger or Cap. Stylus
- Accuracy: Within 2.5mm each target & 10% Jitter limit on moving
- Resolution: 25ppi (Min.)
- Transparency: 85 ± 5%
- Haze: 3% (Maximum)
- Note1:The optical characteristics listed as above are measured by BYK-Gardner instrument at 550nm wavelength.
FEATURES:
- Panel Size: 5 inch to 32 inch
- Structures: Glass/Glass
- Total Thickness: 3.1 ± 0.15 mm (Cover_1.8 mm & Sensor_1.1 mm)
- Operation Conditions: -20°C~+70°C at Min 45% to Max 85% RH
- Storage Conditions:-30°C~+80°C at Min 45% to Max 85% RH
Note1:In order to make a touch panel operate normally, please make sure that the host device is grounded.
Note2:All environmental characteristics listed as above all should be less than1 atmosphere.
Note3:The touch panel must be assembled with LCD panel by VHB or other materials, the control board also be fixed on
LCM bezel or other mechanical parts of the system and then be grounded;
Note4:The touch panel may be damaged functionally or unstable if the panel does not be grounded through your system to
earth.
1.We accept West Union, T/T.
2.BY DHL /FEDEX (shipping usually takes 3-5 working days, correct delivery cycles dependent on the country delivered to)
3. BY EMS (normally take 7-15 working days for delivery, Remote area or Customs Clearance reason, it will be a little longer).
4. To sure the items been correctly delivery to you, pls leave the correct shipment information specifically contact phone number
Tax/Duties
1. For Brazil Customer, pls tell us your tax number (CNPJ NO CPF NO.)
2. The Goods we will demonstrate as "sample" ship to you and with low price value on the Invoice,
Warranty
We provide 1 years warranty for hardware and software is free for lifetime.
Feedback
1.Like it, leave us 5 star feedbacks, Thanks
2. If you are not satisfied with the purchase,please feel free to contact us before leave a negative feedbacks,
