Help CenterAnping Double Twisted Barbed Wire Machine(CS-A)
Related Products
Specifications
barbed wire machine with high qualitymain driving axle rotation speed:132r/min
mainframe:1900x1300x980mm
weight:2t
designed to produce screens with single
double-stranded barbed steel wire,
thermo-plated with zinc

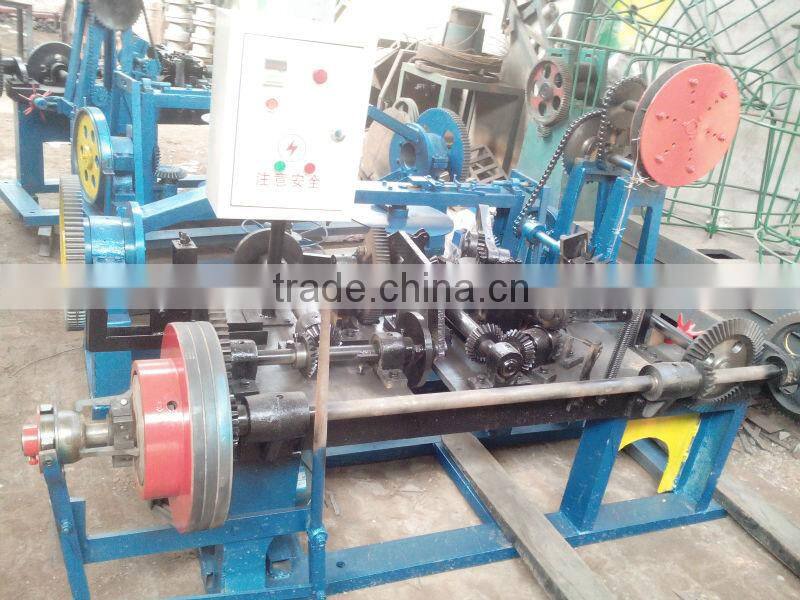

Barbed Wire Machine Barbed Wire Machine is designed to produce screens with single or double-stranded barbed steel wire,thermo-plated with zinc.The machine is of horizontal design,consisting of two parts,assembled together at the middle.It is safe and reliable in operation,capable
of turning out high quality products with consistency.
1,CS-A Double twisted Barbed Wire Machine is designed to produce screens with single or double-strand barbed steel wire,thermo-plated with zinc.The machine is of horizontal design,consisting of two parts,assembled together at the middle.It is safe and reliable in operation,capable of turning out high quality products with consistency.
Item |
|
Motor |
3kw |
Rated output |
70kg/h |
Weight |
1500kg |
Overall Dimension |
1900mmx1300mmx980mm |
Wire collection part size |
1800mmx750mmx750mm |
Barb pitch spacing |
76mm 102mm |
Twist |
4 |
Strand Diameter |
2.2-2.8mm |
Wire Diameter |
1.8-2.2mm |
Rotating Speed of Drive shaft |
432r/min |
2,CS-B single twisted Barbed Wire Machine is designed to produce screens with single or double-stranded barbed steel wire,thermo-plated with zinc.The machine is of horizontal design,consisting of two parts,assembled together at the middle.It is safe and reliable in operation,capable of turning out high quality products with consistency.
Item |
|
Motor |
2.2kw |
Rated output |
50kg/h |
Weight |
1200kg |
Overall Dimension |
1900mmx1300mmx980mm |
Wire collection part size |
1300mmx800mmx700mm |
Barb pitch spacing |
As required |
Twist |
4,6 |
Strand Diameter |
1.6-2.6mm |
Wire Diameter |
1.6-2.2mm |
Rotating Speed of Drive shaft |
357r/min |
3, CS-C Barbed Wire Machine for Two-strand Wire with Two-way Twistsis for Two-strand Wire with Two-way Twists can produce the barbed wire with two-way twists.This way is easy to operate and install as they will not entwist with each other.
Item |
|
Motor |
2.2kw |
Rated output |
40kg/h |
Weight |
1200kg |
Overall Dimension |
1900mmx1300mmx980mm |
Wire collection part size |
1300mmx800mmx700mm |
Barb pitch spacing |
76mm 102mm |
Twist |
4 |
Strand Diameter |
2.2-2.8mm |
Wire Diameter |
1.8-2.2mm |
Rotating Speed of Drive shaft |
432r/min |
