Specifications
full automatic chain link fnece making machine8500x1800x1300
Weight:2T

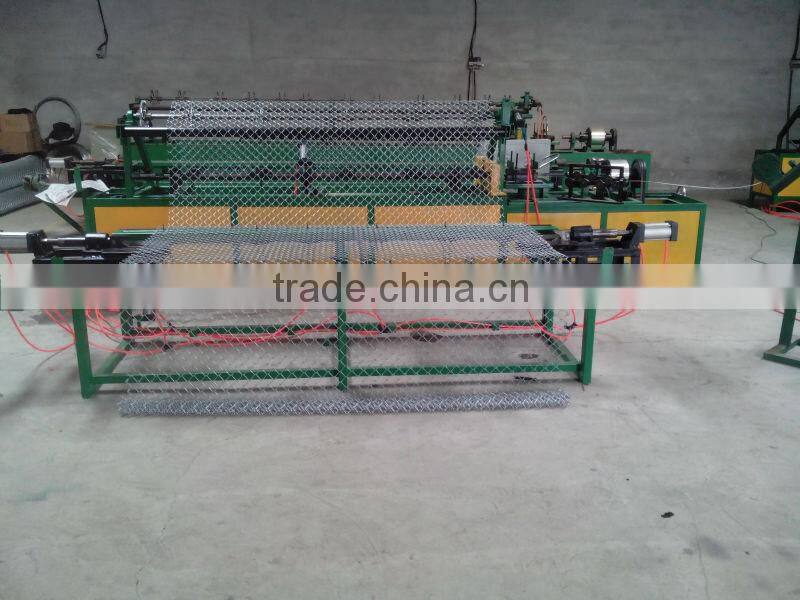

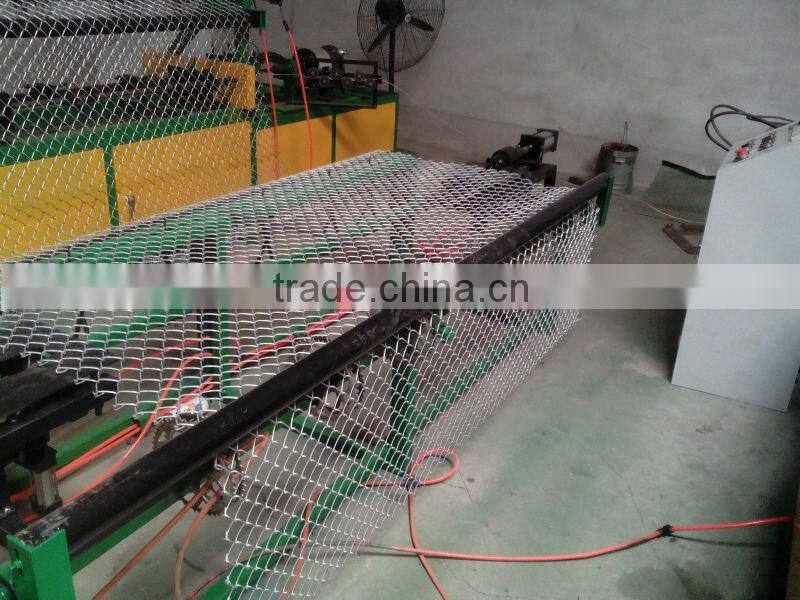

full automatic chain link fence making machine
Chain link machine for manufacturing chain link fences of different sizes
.
The wire is taken in from the payoff stand and passed through the dies where the DIAMOND SIZE takes place.
Different gap sizes. After passing from the die the diamond pattern wire is automatically thrown on the winding shaft in the stitching process.
Once the stitching is complete the woven is manually glided down to enable the next stitch to take place.
The chain link is automatically wound to form rolls when the desired length is manufactured.
The machine is controlled by PLC automatic controller, so only one person is needed to operate it.
One side or both sides of the end of net hole is twisted or with burr in edge.
Use compacting machine to make it into rolls.
Capacity |
80-120(m2/hour) |
Wire Diameter |
2.0-4mmFeeding Wire Numbers: two |
Size of Mesh |
30x30-100X100(mm) |
Netting Width |
600-4000(mm) |
Power and Rated voltage |
9.0KW 380V,50HZ |
Dimensions |
3700*1430*1800mm 2100*1700*1250mm |
