High Strength Ceramic Fiber Board for Heat Insulation

High Strength Ceramic Fiber Board for Heat Insulation thumbnail-1
High Strength Ceramic Fiber Board for Heat Insulation thumbnail-2
High Strength Ceramic Fiber Board for Heat Insulation thumbnail-3
High Strength Ceramic Fiber Board for Heat Insulation thumbnail-4
High Strength Ceramic Fiber Board for Heat Insulation photo-1
High Strength Ceramic Fiber Board for Heat Insulation photo-2
High Strength Ceramic Fiber Board for Heat Insulation photo-3
High Strength Ceramic Fiber Board for Heat Insulation photo-4
Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Application:
Heat Insulation
Thickness:
3-50mm
Width:
400,600mm,1000mm
Contact Supplier Request Quote Chat Now
Zibo JC Eco-Tech Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
qing dao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Application Heat Insulation
Thickness 3-50mm
Width 400,600mm,1000mm
Length 600,900mm,1200mm,2400mm
Grade HA (High Aluminum)
Chemical Composition Aluminosilicate
Working Temperature 1200C
Fiber Diameter 3-4.5um
Thermal Conductivity 0.085(400C),0.132(800C),0.180(1000C)
Shrinkage (1800℉, 3h) <2.5(1000C)
Place of Origin Shandong, China
Model Number High Aluminum
Brand Name JIU CHEN

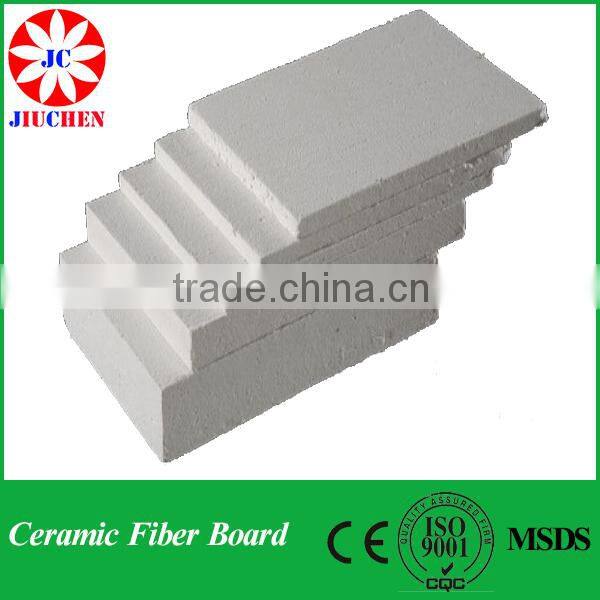

High Strength Ceramic Fiber Board for Heat Insulation

 The High Strength Ceramic Fiber Board for Heat Insulation are made of different refractory

fiber bulks with excellent chemical stability,organic and inorganic bond bywet method and

vacuum forming processing which is applitical to many kinds of industries.The fiber board with

a characteristics of hard, flexible,excellent strength and resistance against corrosion.

High Strength Ceramic Fiber Board for Heat Insulation



High Strength Ceramic Fiber Board for Heat Insulation

 Low  thermal conductivity and shrinkage

 Low  heat storage

 Excellent resistance against chemical attack

 Easy to machine ,cut and install

 Light weight

 Excellent thermal shock resistnce and thermal stability

 Low sound transmission

 Asbestos free

 High Strength Ceramic Fiber Board for Heat Insulation



High Strength Ceramic Fiber Board for Heat Insulation

 High temperature seal, heat insulation

 Refractory back lining

 Thermal power,

 Glass and enamel

 Fire proofing

 Barrier against flame and heat

 Hot face layer for high velocity or abrasive furnace atmosphere



TDS of High Strength Ceramic Fiber Board for Heat Insulation

ITEM

PRODUCT

COM

STD

HP

HA

HZ

Classification            TemperatureºC

1100

1260

1260

1360

1430

Working  TemperatureºC

<1000

1050

1100

1200

1350

Color

white

white

white

white

white

 Densitykg/m3

260-320

260-320

260-320

260-320

260 -320

Liner Shrinkage% After 24hours

<2.5

<2.5

<3.5

<2.5

<2.5

1000ºC

1000ºC

(1000ºC)

(1000ºC)

(1000ºC)

Thermal conductivity

      w/m.k

 density(128Kg/m3)

0.085

400ºC

0.085   400ºC

0.085

400ºC

0.085

400ºC

0.085

400ºC

0.132

800ºC

0.132   800ºC

0.132

800ºC

0.132

800ºC

0.132

800ºC

0.180

(1000ºC)

 0.180

(1000°C)

0.180

 (1000ºC)

0.180

(1000ºC)

0.180

(1000ºC)

Tensile strengthMPa     (Strenth10%)

0.5

0.5

0.5

0.5

0.5

Chemical Composition %

Al2O3

44

46

47-49

52-55

39-40

Al2O3+SiO2

96

97

99

99

-

Al2O3+SiO2+ ZrO2

-

-

-

-

99

ZrO2

-

-

-

-

15-17

Fe2O3

<1.2

<1.0

0.2

0.2

0.2

Na2O+K2O

≤0.5

≤0.5

0.2

0.2

0.2

Size(mm)

Specification:600X400X10-50,900X600X20-50,

1200x1000x10- 50,2400x1200x10-50other according to customer's requirement

High Strength Ceramic Fiber Board for Heat Insulation







High Strength Ceramic Fiber Board for Heat Insulation



About our company

JIUCHEN is a professional manufacturer and supplier of insulation materials and furnace

materials. With more than10 years’ history,Jiuchen has developed into a key hightech enterprisein Chinese insulation field.

JIUCHEN products include:ceramic fiber blanket,bulk, board , paper, modules, textiles and other

related products.

JIUCHEN products enjoy good markets in many countries and regions,such as the EU,USA, Asia Africa.

We also provide many other refractory and insulation materials, so if you have demands about them, pls contact us.





IF YOU NEED CERAMIC FIBER PRODUCTS, PLS CONTACT WITH US.
