High Aluminium Refractory Ceramic Fiber Board

High Aluminium Refractory Ceramic Fiber Board thumbnail-1
High Aluminium Refractory Ceramic Fiber Board thumbnail-2
High Aluminium Refractory Ceramic Fiber Board thumbnail-3
High Aluminium Refractory Ceramic Fiber Board thumbnail-4
High Aluminium Refractory Ceramic Fiber Board thumbnail-5
High Aluminium Refractory Ceramic Fiber Board thumbnail-6
High Aluminium Refractory Ceramic Fiber Board photo-1
High Aluminium Refractory Ceramic Fiber Board photo-2

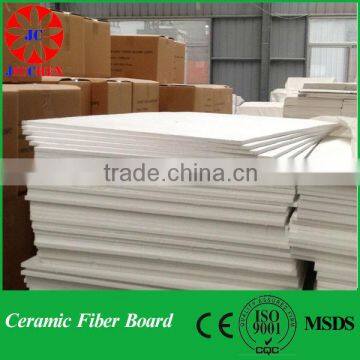

High Aluminium Refractory Ceramic Fiber Board photo-3

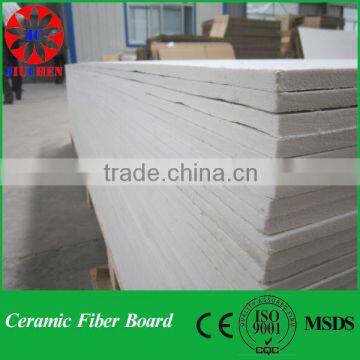

High Aluminium Refractory Ceramic Fiber Board photo-4

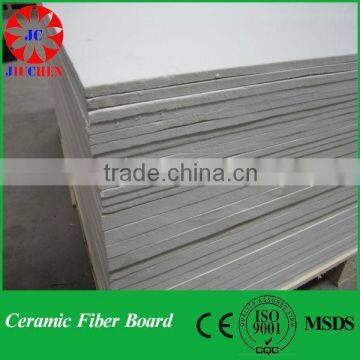

High Aluminium Refractory Ceramic Fiber Board photo-5

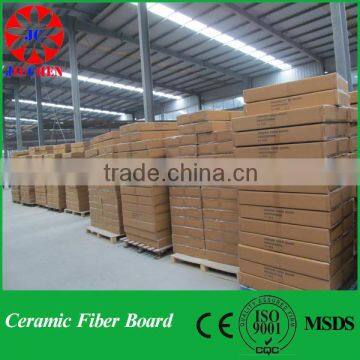

High Aluminium Refractory Ceramic Fiber Board photo-6
US$ 1.6 - 2 MOQ: 500 Kilograms
Key Specifications
Get Latest Price
Application:
Heat Insulation
Thickness:
3-50mm
Width:
400mm,600mm,1000mm
Contact Supplier Request Quote Chat Now
Zibo JC Eco-Tech Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Application Heat Insulation
Thickness 3-50mm
Width 400mm,600mm,1000mm
Length 600mm,900mm,1200mm
Grade HA (High Aluminum)
Chemical Composition Al2O3:52-55%
Working Temperature 1200C, 1200C
Fiber Diameter 3-4.5 μm
Thermal Conductivity 0.085(400℃) 0.132(800C) 0.180(1000C)
Shrinkage (1800℉, 3h) <2.5(1100C)
Place of Origin Shandong, China
Model Number High Aluminum
Brand Name JC
Product Description

High Aluminium Refractory Ceramic fiber board is produced with different alumina silica fibers for applications at temperatures up to 1400 ºC by vacuum formed technology.

With a characteristics of hard ,excellent strength ,light weight and easy to handle.It is ideal material for furnace ,boiler duct ,stack lining and other heat equipments.

High Aluminium Refractory Ceramic fiber board

Product Features

1.Refractory lining for industrial furnace in wall, roofs, stacks and doors,etc.

2.Combustion chamber liners,boilers and heaters.

3.Back-up insulation for brick,and monolithic refractories.

4.Transfer of molten aluminum,and other non-ferrous E metals.

5.Expansion joint boards

6.Barrier against flame and heat

7.Hot face layer for high velocity or abrasive furnace atmosphere

Technical Data



ITEM

PRODUCT

COM

STD

HP

HA

HZ

Classification  Temperature(ºC)

1100(2012℉)

1260(2300℉)

1260(2300℉)

1360(2480℉)

1430(2606℉)

Working  Temperature(ºC)

<1000(1832℉)

1050(1922℉)

1100(2012℉)

1200(2192℉)

1350(2462℉)

Color

white

white

white

white

white

 Density(kg/m3)

260~ 320

260~ 320

260~ 320

260~ 320

260~ 320

Liner Shrinkage

(%) After 24hours

<2.5

(1000℃/1832℉)

<2.5

(1050ºC/1922℉)

<2.5

(1100ºC/2012℉)

<2.5

(1100ºC/2012℉)

<2.5

(1350ºC/246℉)

Thermal Conductivity

(w/m.k)

Density(128Kg/m3)

0.085(400ºC/752F)

0.085(400ºC/752F)

0.085(400ºC/752F)

0.085(400ºC/752F)

0.085(400ºC/752F)

0.132

(800ºC/1472F)

0.132

(800ºC/1472F)

0.132

(800ºC/1472F)

0.132

(800ºC/1472F)

0.132

(800ºC/1472F)

0.180 (1000ºC/1832F)

0.180 (1000ºC/1832F)

0.180 (1000ºC/1832F)

0.180 (1000ºC/1832F)

0.180 (1000ºC/1832F)

Tensile Strength

(MPa) (Strenth10%)

0.5

0.5

0.5

0.5

0.5

Chemical Composition %

Al2O3

44

46

47-49

52-55

39-40

Al2O3+SiO2

96

97

99

99

-

Al2O3+SiO2+ ZrO2

-

-

-

-

99

ZrO2

-

-

-

-

15-17

Fe2O3

<1.2

<1.0

0.2

0.2

0.2

Na2O +K2O

≤0.5

≤0.5

0.2

0.2

0.2

Size(mm)

Specification:600X400X3-50,900X600X3-50,other according to customer's requirement

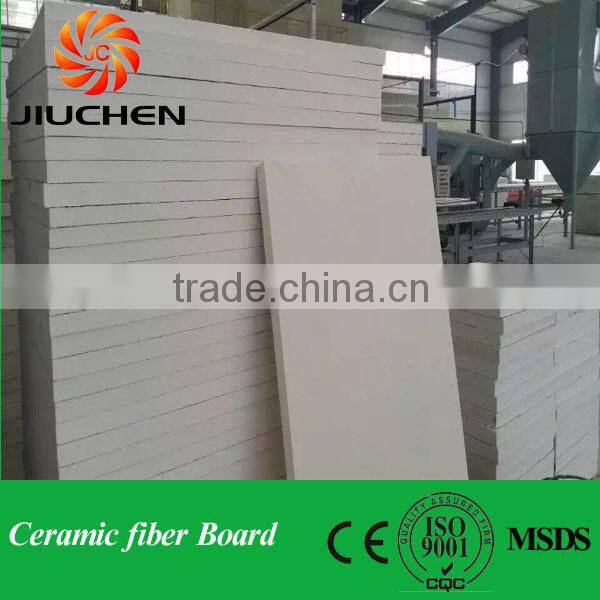

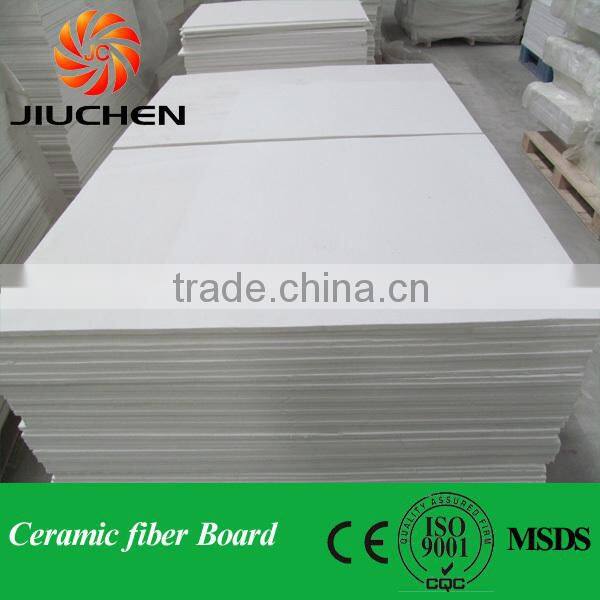

 High Aluminium Refractory Ceramic fiber board



High Aluminium Refractory Ceramic fiber board

Packaging & Shipping





 Product  Application

 1.Refractory lining for industrial furnace in wall, roofs, stacks and doors,etc.

2.Combustion chamber liners,boilers and heaters.

3.Back-up insulation for brick,and monolithic refractories.

4.Transfer of molten aluminum,and other non-ferrous E metals.

5.Expansion joint boards

6.Barrier against flame and heat

7.Hot face layer for high velocity or abrasive furnace atmosphere



High Aluminium Refractory Ceramic fiber board

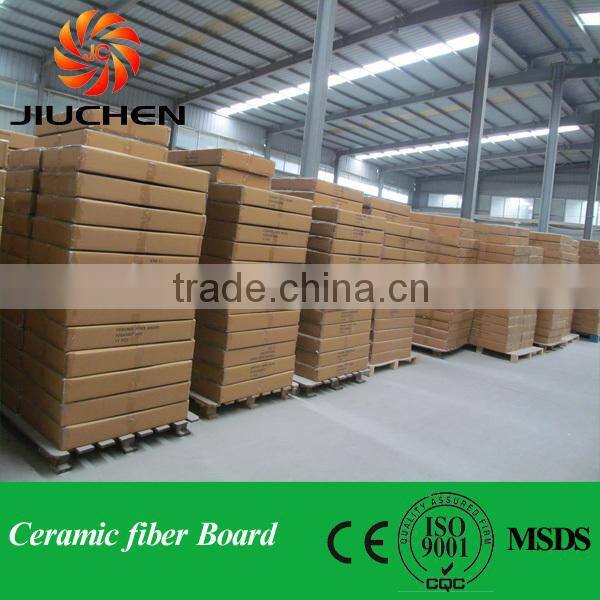

Packing

Inner:plastic bags,outside carton box or pallet, or according to customer's requirement

High Aluminium Refractory Ceramic fiber board





Our Services

 1.quickly delivery

 2. good quality

 3. good after-sale services.



Production



High Aluminium Refractory Ceramic fiber board

Company Information



ISO Quality management System

Production control:



High Aluminium Refractory Ceramic fiber board

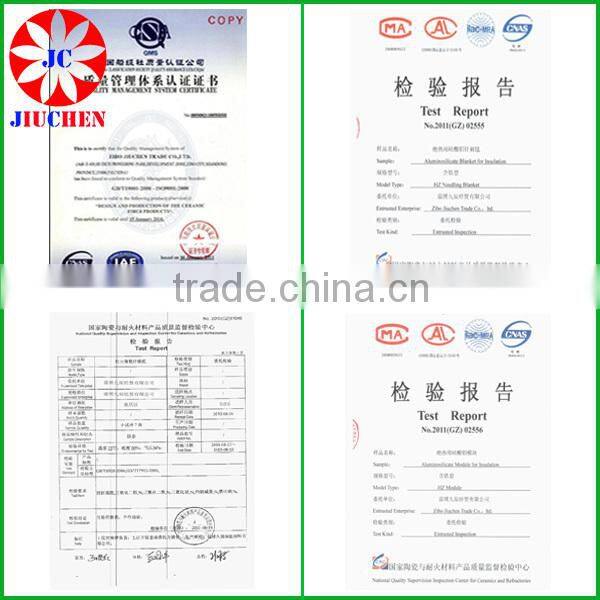

 Inspection report







  If you have any questions about our products,pls feel free to contact us!
