Help Center2013 New Product Spring Terminal BlockJUT3-2.5F -WS 2.5-DB
Related Products
-
Express Spring Contact Terminal Blocks JUT3-1.5/2 UL and VDE ApprovalUS$ 0.29 - 0.37MOQ: 1000 Pieces -
Din Rail Mounting Clip Spring Clamps Termianl Blocks JUT3-1.5 Plastic Cover China Supplier Free SampleUS$ 0.21 - 0.247MOQ: 3000 Pieces
-
Import Din Rail Mounting Clip Spring Clamps Termianls Blocks JUT3-1.5 Phoenix Contact China Suppliers Free SampleNegotiableMOQ: 1000 Pieces
-
Pcb Spring Contact Type CE VDE UL Two-Lead Through-type Wiring Termianls 1.5mm2 Wire Size Phoenix MaterialUS$ 0.1 - 0.15MOQ: 1000 Pieces
-
Double-layer Return-pulling Electric Terminal Blocks, Spring Type Electric Terminal BlocksUS$ 1.5 - 5MOQ: 10000 Pieces
Utility Electrical Co., Ltd.
1. High Quality
2. Screw Type
3. CE, CCC, UL, ROHS
4. OEM Service
Utility Electrical Co.,Ltd is a professional manufacturer of all kinds of terminal blocks, which was founded in 1990. Through persistent research and development, we have grown into a leading manufacturer of this field. The main products have gained the certifications, such as VDE, UL, CE, RoHS, ISO9001, CCC and CCS etc.
Brief Introduction
1. Terminals with universal mounting feet which can be installed on the U- rails NC 35 and
G -type rail NC32 .
2. Closed screw pilot holes to ensure ideal screwdriver operation .
3. For a plurality of cross-sectional level of terminals equipped with a unified attachments,
such as the end plates, packet separator.
4. Potential distribution through a fixed bridge or insert line access terminals central cavity
side plug -in bridge .
5. Terminal: With general-purpose mounting feet, can be installed on tracks NS32 or NS35.
6. Closed bolt leading hole will not only facilitate operation of screwd-rivers, also prevent the bolt
from dropping out.
7. Electric potential distribution is realized by eitherconnecting central adaptor to the center of
terminal or inserting a side adaptor to the cone jack.
8. General auxiliaries, such as the end plate, segment spacer, and spacer, are attached for terminal
with multiple sections.
9. The insulating shell is made if imported engineering plastic-polyamide Nylon 66(PA66). It is of
high mechanical intensity, good electic property, and super flexibility.
10. Two ends on the top with white marking system to realize uniformed sign.
11. 15 years lifetime.
12. OEM acceptable.

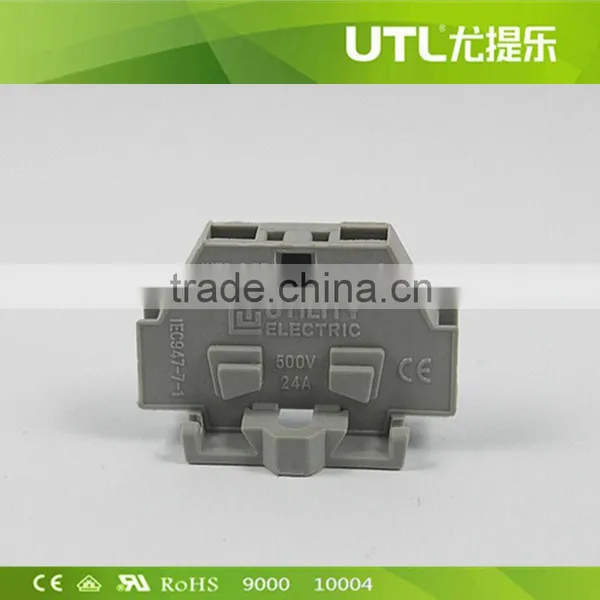

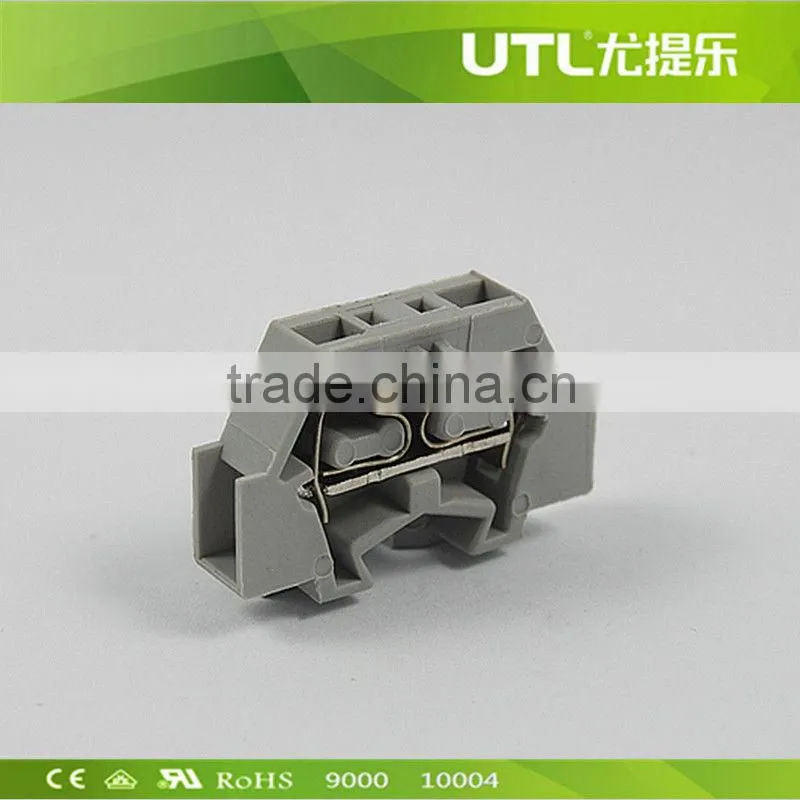

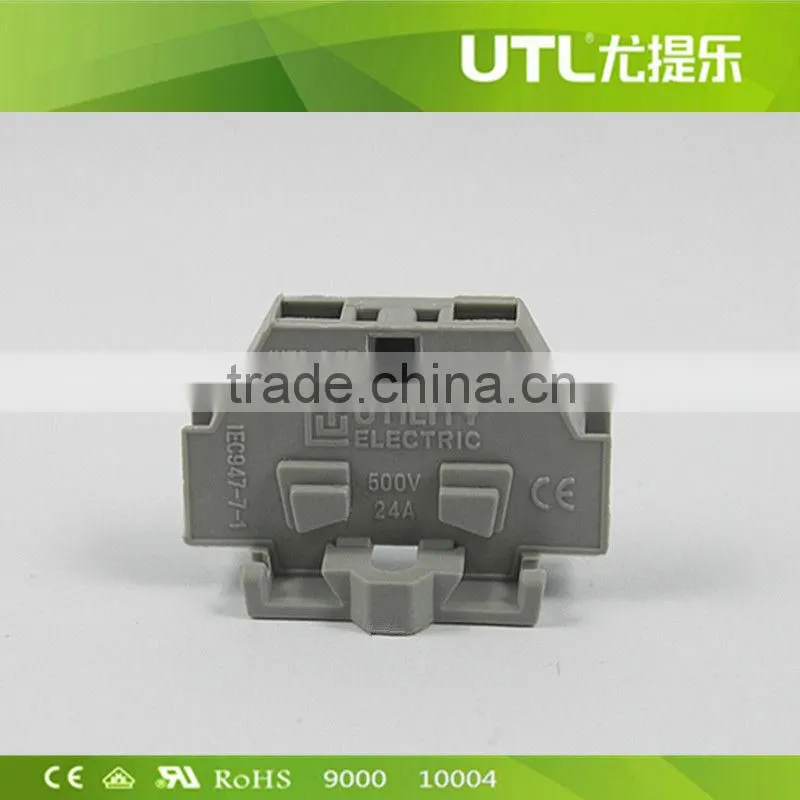

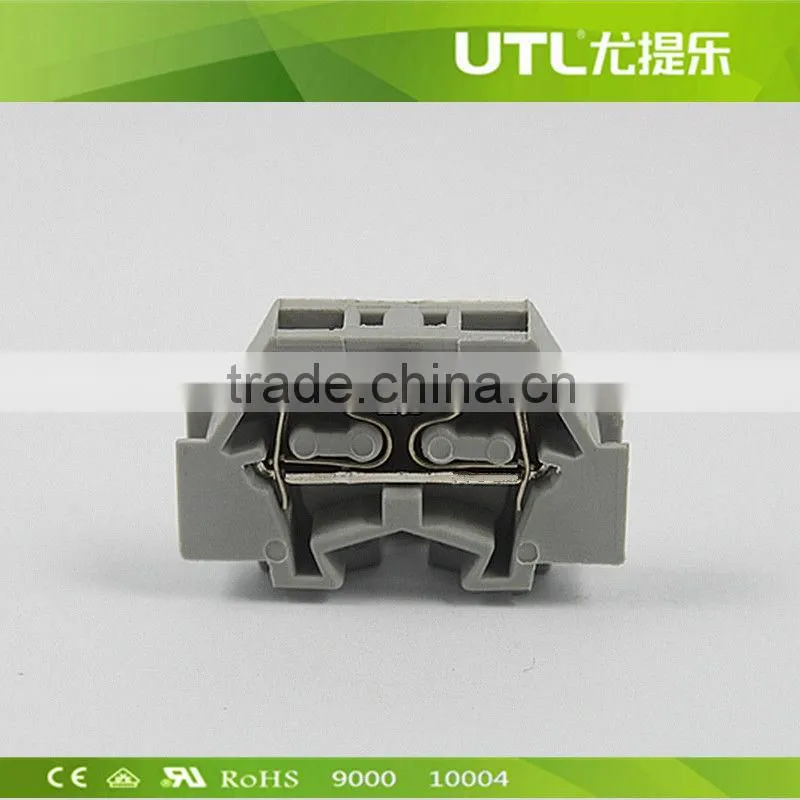

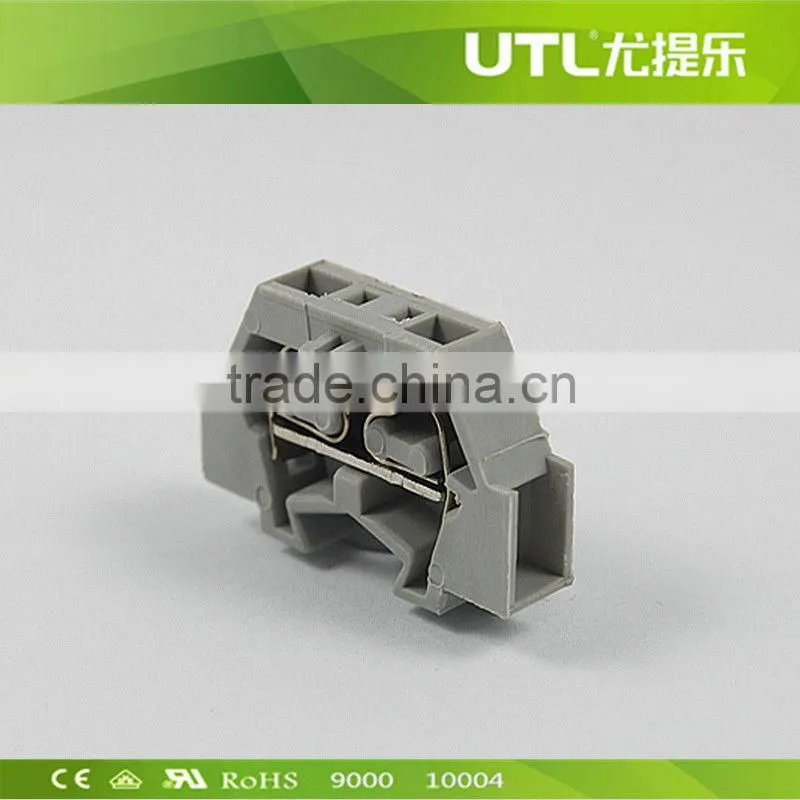

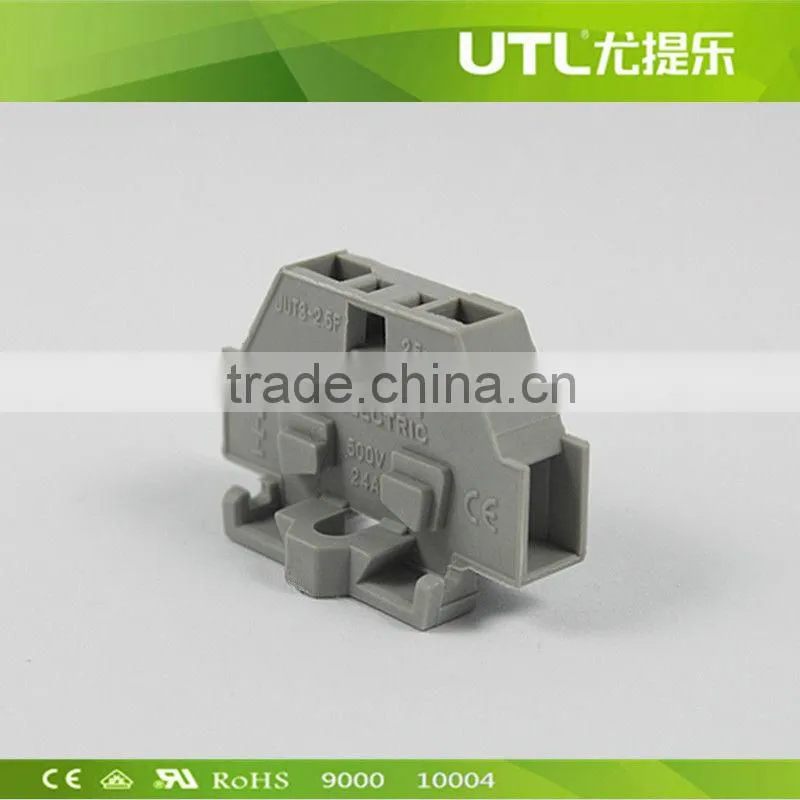

Industrial Distribution Terminal Blocks-Spring type terminal serise

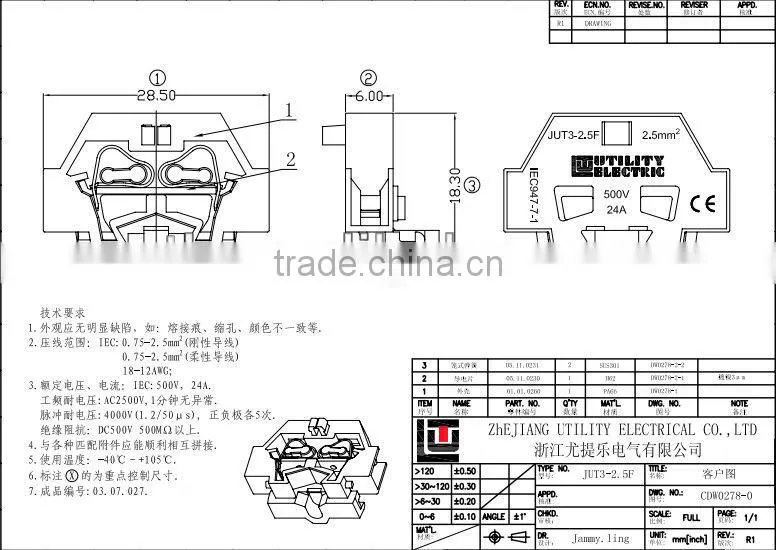

Type: JUT3-2.5F
Thickness:6mm
Width:28.4mm
Height:18.2mm
I(A):24U(V):500
AWG:18-12
IEC 974-7-1
Factory Details
Injection Workshop--15 Injection molding machines & Mold workshop--Design all kinds of terminals
Storage Warehouse--Prepared to be shipped & package to be cartons
