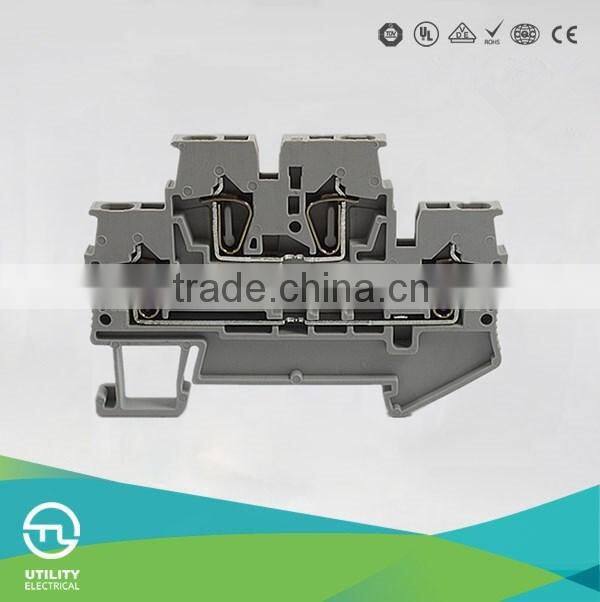

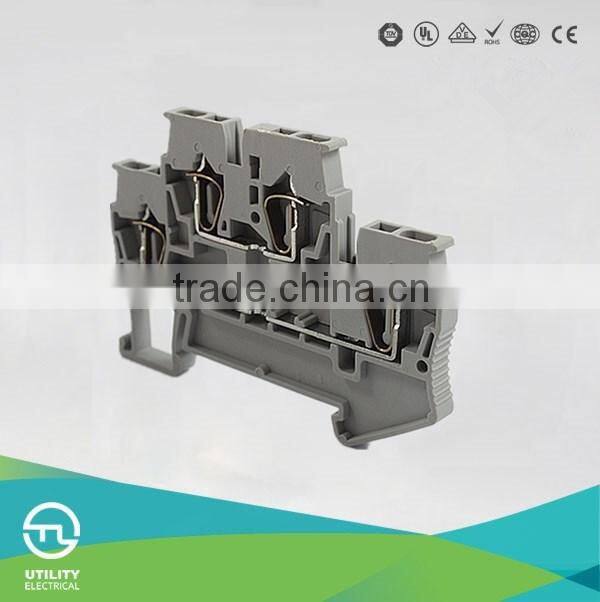

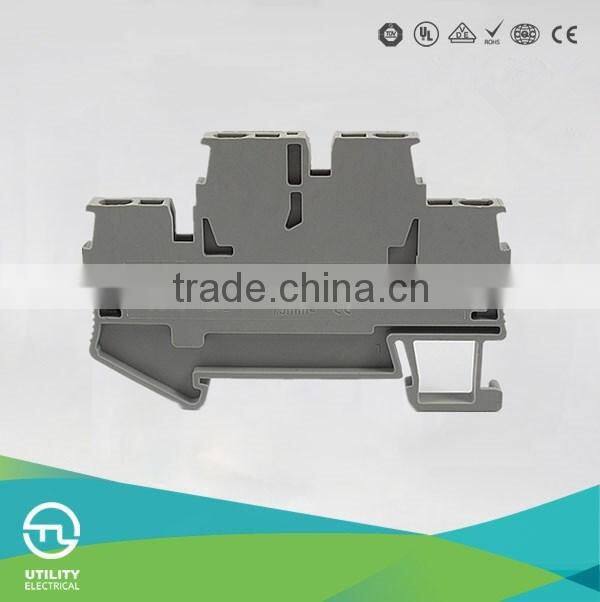

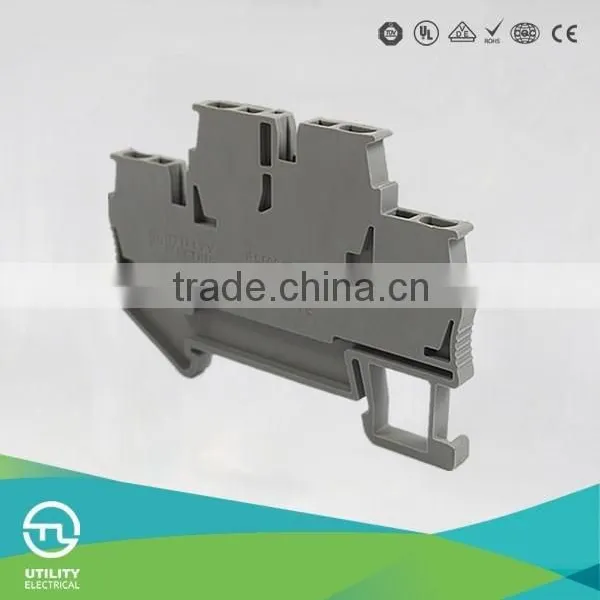

Double-layer Return-pulling Electric Terminal Blocks, Spring Type Electric Terminal Blocks
US$ 1.5 - 5
/ Piece
10000 Pieces(Min. Order)
- Ningbo
- T/T L/C D/P D/A Money Gram Credit Card PayPal
You May Like
-
Din Rail Mounted Terminal Block / Spring Cage Dinrail Electrical Terminal Blocks 1.5m/Made in China
-
Terminal Blocks Pitch 1.5mm UL Approval / Terminal Connector Block
-
JUT3-1.5/2-2 CABLE CONNECTOR CONDUCTOR TERMINAL BLOCKS SPRING TYPE
-
Double-layer Return-pulling Spring Type Terminal Blocks
-
CONDUCTOR NEW HOT TERMINAL BLOCKS JUT3-2.5/2 SPRING TYPE INDUSTRIAL DISTRIBUTION DOUBLE-LAYER
-
PA66 VO 800V 24A Side-entry Insulated Screwless Terminal Block
Product Details
| Place of Origin | Zhejiang, China | Brand Name | UTL | |
| Model Number | JUT3-1.5/2 | Conductor Size | 21 - 30 AWG | |
| Type | Other, Spring, electric terminal block |
Product Description
Practical Features
Double-layer return-pulling spring terminal
Double-layer return-pulling spring terminal can be connected with two different potentials on terminal, compared with single-layer terminal with the same rated section and thickness, the double-layer wiring could save 50% of track length, the upper/lower layer of double-layer terminal both can be bridge-connected and marked in order to finish different wiring duty, making lead circuit ownership relationship clearer for being distinguished.
Parameter
| Solid Wire (AWG) | 26-16 |
| Voltage Rating (V) | 500 |
| Current Rating (A) | 17.5 |
| Thickness (mm) | 4.2 |
| Width (mm) | 67.5 |
| U rail Height (mm) | 49 |
| Rigid cable (mm2) | 0.14-2.5 |
| soft cable (mm2) | 0.14-1.5 |
| International Standard | IEC 60947-7-1 |
