FRP pipe/profile/rebar pultrusion machine
Our Production Name:pultrusion machine for rebar
The technical parameter:
Model Number: |
NLL-2OT |
|
|
Imperial |
Metric |
Maximum Pulling Force FT-POUNDS / KGF |
44069 |
20000 |
Maximum Clamping Force FT-POUNDS / KGF |
44069 |
20000 |
Pulling Speed Range IN/MIN - M/MIN |
2 - 20 |
0.05-0.5 |
Maximum Clamping Size (IN / MM) |
42.5 X 9.8 |
1000 X 250 |
Puller Pad Engagement Length (IN / MM) |
59.1 |
1500 |
Electric Drive Motor Power (HP / KW) |
14.7 |
11 |
Physical Dimensions (FEET / METERS) |
29.5 X 8.2 X 2.6 |
9 X 2.5 X 0.8 |
The major compenent of the pultrusion machine:
- FIBER: fiberglass or basalt fiber
- RESIN: Polyester, exopy, vinyl ester.
The finished Productions:

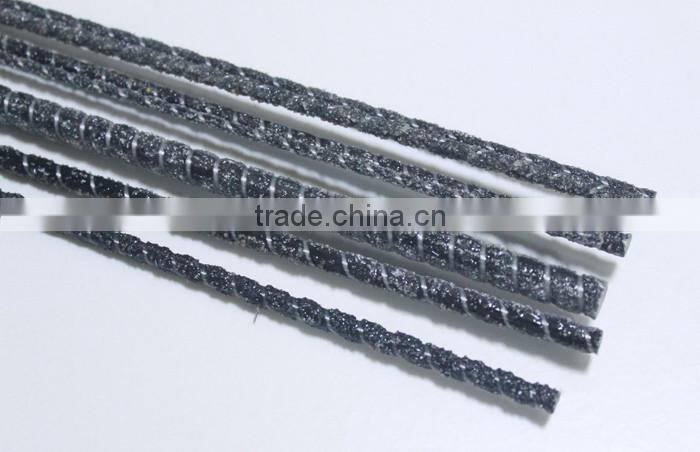

Profile products: round pipe, square pipe, angle, window&door profile, fiberglass rebar/rod, basalt fiber rebar.
the feature of pultrusion machine:

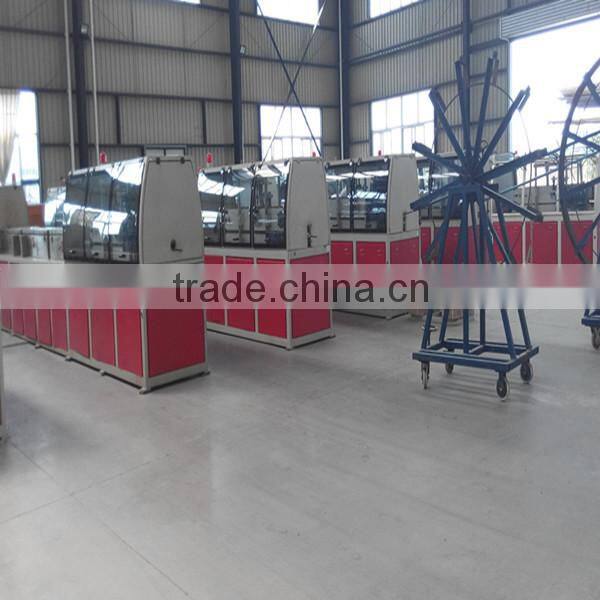

The line mainly consists of roving racks,resin bath,winding,heating,traction machine,cutting saw and racks for finished products
1) roving rackst: used to place the yarn spool, adopts the welding structure of steel plate,steel pipe and angle iron.
2) Winding device: adopts gear drive,wind the bolt thread,the winding speed is controlled by the frequency inverter.
3) Heating device: adopts cast aluminnium heater,intelligent temperature controller to control the temperature. The heating box adopts mesh structure and it is easy to open it and clean the dropping resin,filled with insulation materials inside.
4) The machine can produce two/four pieces of FRP rebar at the same time.
1, Can you provide technical guidance?
Yes, we can provide technical guidance before shipping or after you get the machine, and can help you to train the workers.
Why Choose Us:
- Quick response: each inquiry will be answered within 24 hours
- Quality Control: We make quality control each item separately. Shipping department checks item before packing, totally avoding manufacturing defects.
- Quick delivery & competitive price: Adopts advanced equipment and machines to guarantee the competitive rate and production capacity for bulks, responsible staff will ensure the shippment soon, and improve your efficiency.
- Professional: We are specialized in this field many years thus have rich experience on exporting nas we will supply best service and offer professional solution for you
