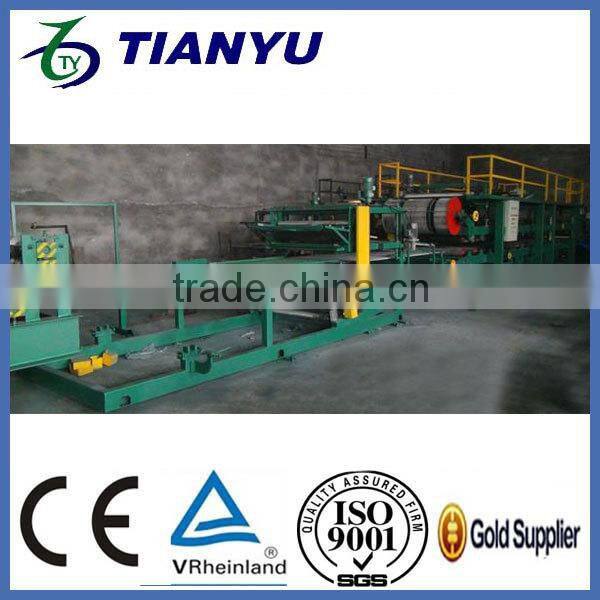

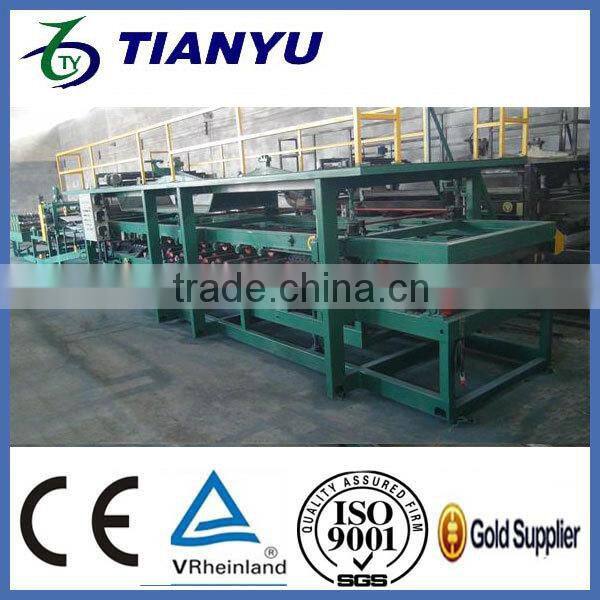

cangzhou hot sale rock wool sandwich board making machine
(1) Coil material: EPS
(2) Thickness of the plate: 0.3-0.8mm
(3) Core thickness: 20-300mm
(4) Production capacity (according to your glue):
4-4.5m/min (the fastest), 2-4m/min (the slowest)
(5) Total power: about 32KW
(6) Weight: about 15ton
(7) PLC control system, easy to operation, high precision and work stably.
(8) Dimensions of whole production line:
About Length40000mm × Width2500mm × Height2600mm
Material-fed supporting frame
Automatic shearing mechanism
Hydraulic system
Computer control cabinet with imported PLCTechnical process:
Manual decoiler---feed with guide---roll forming---press step---cut with fixed length---output with table
Equipment Parts
Decoiler, roll forming machine, hydraulic cutting device, electric system(PLC control system), hydraulic system, stacker.

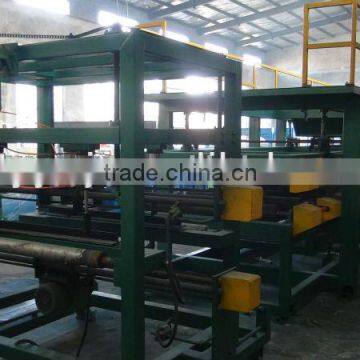

machine picture show and some deatils
Automatic system
Pump station |
3kw |
PLC |
Panasonnic |
Transducer |
Twiwan"Delta" |
Encoder |
Wuxi's "REP"or "XINYA" |
Switch |
"CHINT" or "DELIXI" |
Component line
NO |
Name |
Unit |
Qty |
1 |
Man-made decoiler |
set |
1 |
2 |
Main machine for roll forming |
set |
1 |
3 |
Control system |
set |
1 |
4 |
Hydraulic system |
set |
1 |
FAQ about roll forming machine :
Q:How is this machine's service life?
A:In the normal maintenance,the service life at least 8 years.
Q:How to maintenance?
A:If using frequently,best coating lubricant on the chain and two ends of the shaft every month,replace the hydraulic oil every 1-2 years.
Q:What can you do if the machine broken?
A:Our machine's warranty period is 1 year,if the broken parts can't repair,we can free send the new parts replace the broken parts to you except the solenoid valve,the solenoid valve you must pay the express cost yourself.if after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.
Q:Can you be responsible for transport?
A:Yes,please tell me the destination port or address.we have rich experience in transport.
Q:Mr.Alan,can you make the machine according to my design or proto type?
A: Yes. We have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.
Q:How many workers operate this machine to manufacture?
A:Only 1-2 worker.
Q:Can you supply the raw materials?
A:Yes,we can supply the galvanized steel coil,galvalume steel coil,color steel coil,and aluminum coil.
