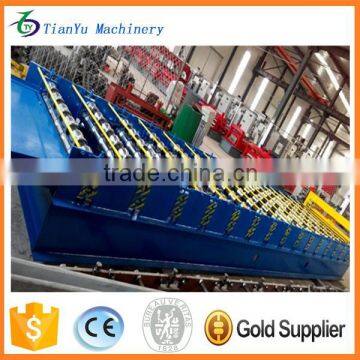

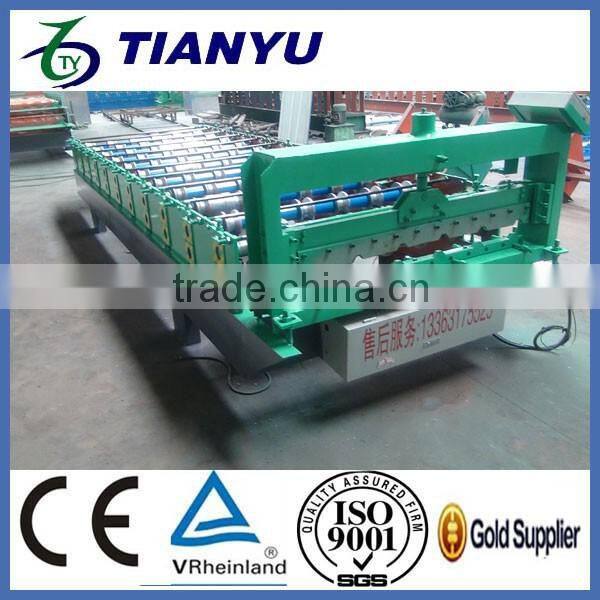

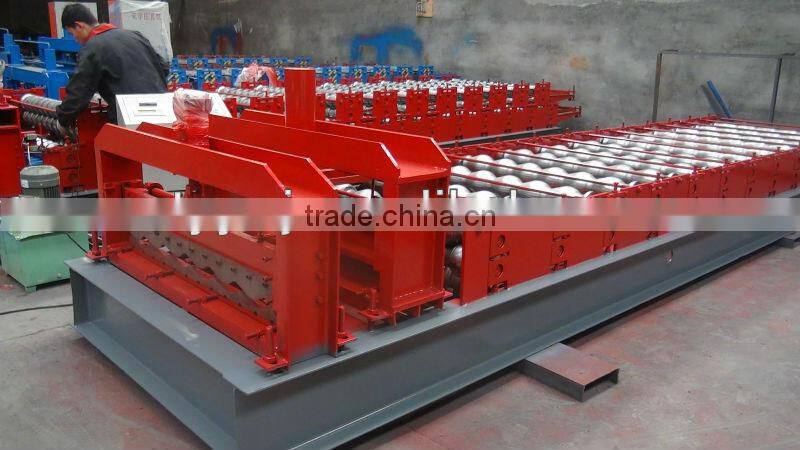

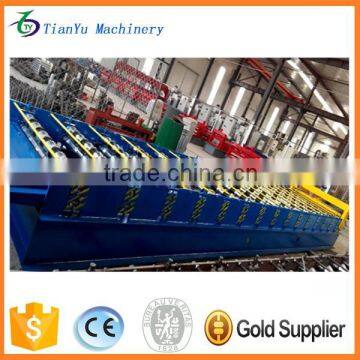

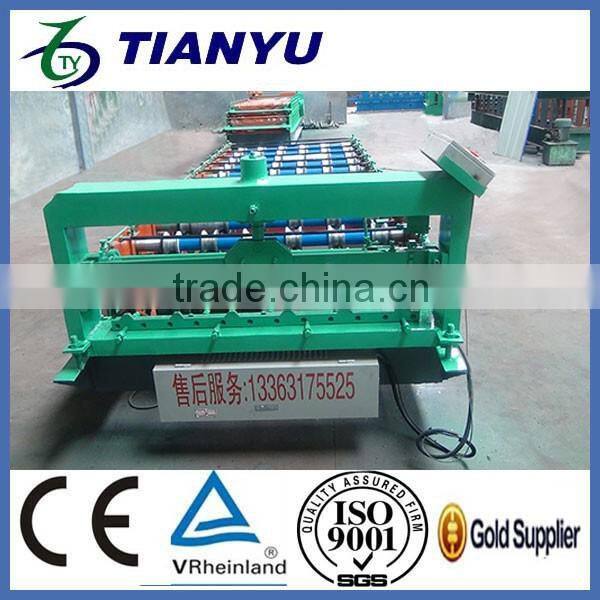

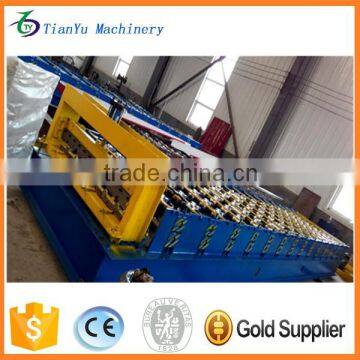

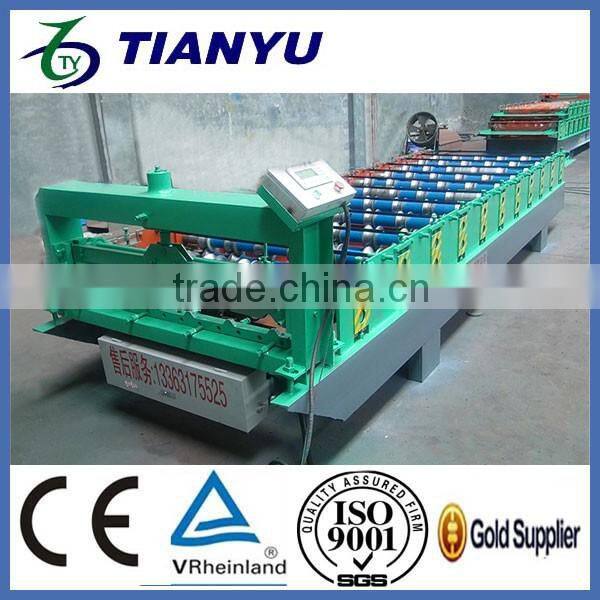

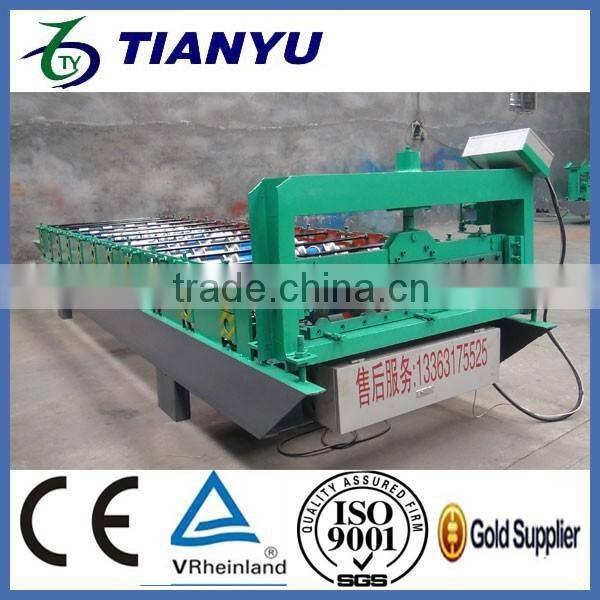

IBR Roof Sheet Roll Forming Machine Popular in South Africa
Galvanized steel Glazed tile Roll forming machine
1.This kind of cold roll forming machine is widely used for making various metal wall panels and roof panels
for steel constructions, steel structure projects and containment systems etc.
2.This production Galvanized steel wall panel roll forming machine line consists of feeding unit, uncoil er, feeding guide, roll forming machine, cutter, hydraulic system and electric control system.
specifications of the machine(all the details can be made according to your requirments)
Dimensions |
6500*1500*1400mm |
Large frame |
300H steel |

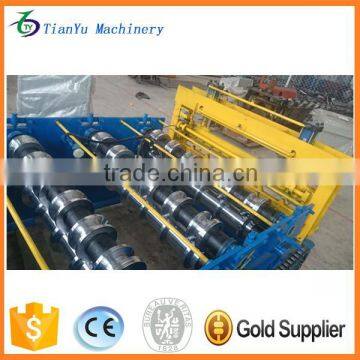

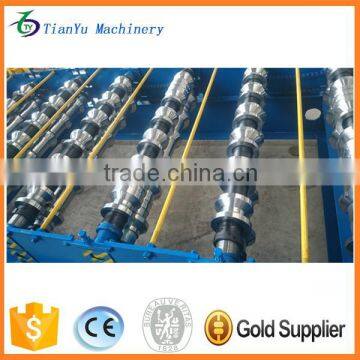

Rolling wheel |
Forging 45# steel |
Diameter of roller |
80mm with conditioning |
Roller station |
13rows |
| motor power | 4KW |
hydraulic power |
4KW |
Rolling speed |
2-3m/min |
Rolling thickness |
0.2-0.8mm |

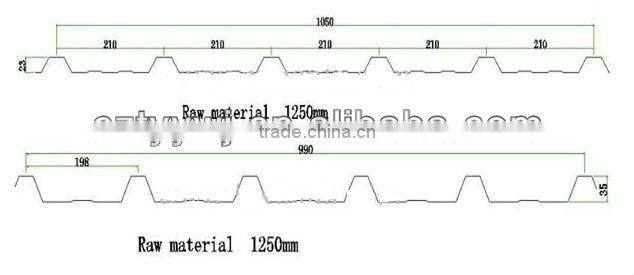

Feeding width |
1250mm |
effective width |
1100mm |
Machine weight |
3.5T or so |
Kind of drive |
Driving with 1.3 inch chain |
wall thickness main molding machine |
16mm |
The control system( all detail can according to your requirements)
Pump station |
4kw |
PLC |
Taiwan"Delta" |
Transducer |
Twiwan"Delta" |
Encoder |
Wuxi's "REP"or "XINYA" |
Switch |
"CHINT" or "DELIXI" |
The production process of the machine
|

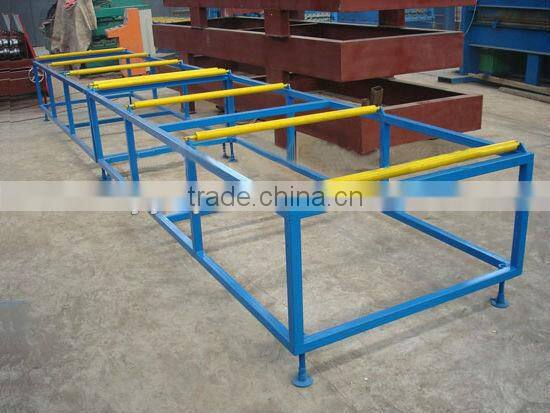

uncoiler→Flating→Feeding→Forming→Cut to length→Colletion(finish goods)
|
Main accessorise
|
|
||
|
PLC control system PLC is Taiwan"Delta" Frequency converter is Taiwan"Delta" |
Carrying capacity: 5-7t; Max coil width: 1.00m
Operation: Manual
|
4Meters | 4KW |
Service for the roll forming machine
|
We provide the technical support for whole life. Meanwhile, if any parts go broken and not artificial damage, we will send you new ones for free. When need the technician to go abroad, we will arrange the technician. But the buyer should take all the cost, including Visa, Roundtrip ticket, suitable accommodation and pay the service fee to the technician with $100/days |
Payment terms
|
T/T( 30% by T/T in advance, the rest 70% to be payed by T/T after you inspect the machine in seller's factory before delivery ) |
Delivery and package
|
20 dyas after receving the advance 1.Tighten to container with steel wire rope and welded machine with container by angel iron 2. Main forming machine and un-coiler is naked(If you need we can also packed with water- proof plastic) 3. PLC control system and motor pump are packed with water proof paper coverage |
More informatios about the roll forming machine,please contact us
|
Our company has found for over 1 7 years since 1 9 9 6. We are the professional manufacture to produce different kinds of roll forming machine, such as roof and wall panel forming machine,c/z purlin forming machine,sandwich panel production line, floor deck forming machine,light steel keel forming machine,container board forming machine, bending machine,cutting machine and so on |
