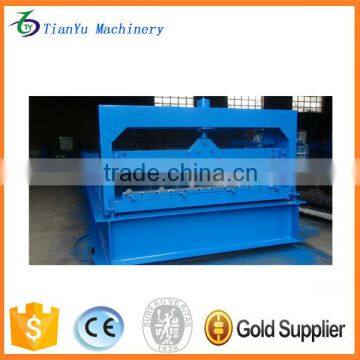

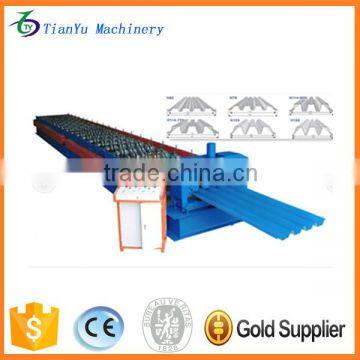

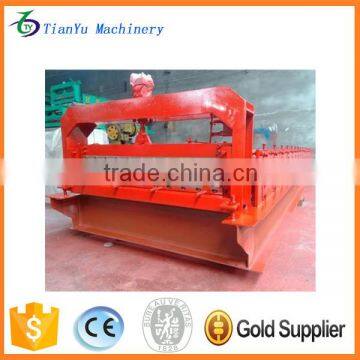

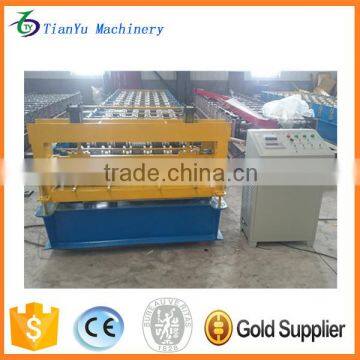

High efficiency continuous wall panel roll forming machine
1.Specification
| Dimensions | 6500*1300*1200mm |
| Large frame | 400 i beam |
| Rolling wheel | Forming 45# steel |
| Diameter of roller | 85mm with conditioning |
| Roller station | 15 rows |
| Main power | 4 kw with reducer |
| Rolling speed | 20-30 m/min |
| Rolling thickness | 0.2-0.9mm |
| Feeding width | 1000mm |
| Machine weight | 2.5T or so |
| Kind of drive | Driving with 1.32 inch chain |
| Middle plate | 16mm |
2.Automatic system(The PLC can be designed according to customers' requirement)
| Pump station | 3kw |
| PLC | Taiwan"Delta" |
| Transducer | Twiwan"Delta" |
| Encoder | Wuxi's "REP"or "XINYA" |
| Switch | "CHINT" or "DELIXI" |
3.Component
4. Product
(1) Flow chart
| Decoiler→Flating→Feeding & punching→Forming→Cut to length→Colletion(finish goods) |
(2)Production show
(3) Product packing and shipping
5.Service
|
We provide the technical support for whole life. Meanwhile, if any parts go broken and not artificial damage, we will send you new ones for free. When need the technician to go abroad, we will arrange the technician. But the buyer should take all the cost, including Visa, Roundtrip ticket, suitable accommodation and pay the service fee to the technician with $150/days |
6.Payment
|
T/T( 30% by T/T in advance, the rest 70% to be payed by T/T after you inspect the machine in seller's factory before delivery ) |
7.About us
| Cangzhou city Tianyu roll forming machine factory has built over 18 years,it is located in north of China,near from Tianjin port,we have strong selling team and exquisite technology |
8 FAQ
1)Q: What is the Warranty or your double layer roof roll forming machine & used roll forming machine & metal roofing roll forming machine?
A: we permit 3 year warranty and Whole life maintenance , We can change the new spear parts freely in the warranty period.
2) Q: How do your double layer roof roll forming machine & used roll forming machine & metal roofing roll forming machine compare with other big companies in this market?
A:1. Price advantages, we are the double layer roof roll forming machine & used roll forming machine & metal roofing roll forming machine factory , have our own research and development department, so we can control our cost and leave more profit to our clients
2.Quality advantages: we developed new double layer roof roll forming machine & used roll forming machine & metal roofing roll forming machine technology , that can save the work space ,and the surface of the machine is so nice
3.Long time Warranty , other company just have 1 year warranty for the double layer roof roll forming machine & used roll forming machine & metal roofing roll forming machine, but our is 3 years.
3)Q: How does your factory do regarding quality control?
A: Quality is first. We always attach great importance to quality control from the beginning to the end of the production. Every double layer roof roll forming machine & used roll forming machine & metal roofing roll forming machine will be fully assembled and carefully tested before it's packed for shipment.
4) Q: Do you sell only standard machines?
A: No, most of our double layer roof roll forming machine & used roll forming machine & metal roofing roll forming machine are built according to customers specifications, using top brand name components.
9 Contact me
10 How to visit us
