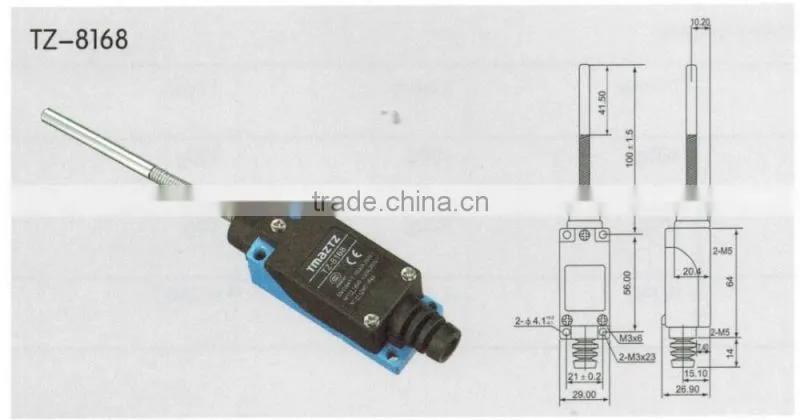

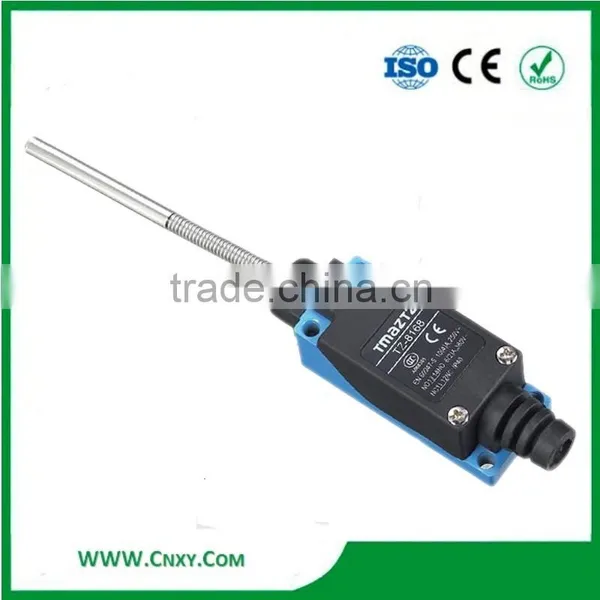

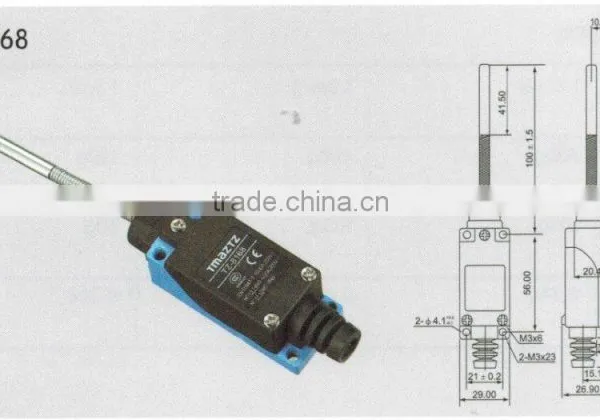

Limit Swtich TZ-8168

Name: Limit Swtich TZ-8168
Brand: cnxy
SKU: 118305975
Availability: InStock

US$ 2.5 - 3.5 MOQ: 20 Pieces

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

cnxy

Model Number:

TZ-8168

Yueqing Xingyang Electronic Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

ning bo

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name cnxy

Model Number TZ-8168

Protection Level IP65

Max. Current 5A

Max. Voltage 250V

Product Description

1. Double circuit type of limiting switch

2. Highly rigid construction, consists of intensive plastic and aluminum cast (Head and cover snugly fit in box)

3. Small volume, water-proof and oil-proof construction

4. Built-in basic switch with double spring mechanism, longer mechanical life

5. Smooth operation with greater OT

6. Easy-to-wire circuit opening design

7. Wide varity of actuators, easily use

Specifications:

Notes:

1. Inductive load has a power factor of 0.4 min.(AC) and a time constant of 7 msec.max.(DC).

2. Lamp load has an inrush current of 10 times the steady-state current,while motor load has an inrush current of 6 times the steady-state current.

Characteristics:

Operation speed	0.5mm-50cm/sec
Operating frequency	Mechanical: 120 operations/minute, Electrical: 30 operations/minute
Contact resistance	25mΩ max. (initial value)
Insulation resistance	100mΩ min. (at 500VDC)
Dielectric strength	1000VAC, 50/60HZ for 1 minute between terminals of the same polarity
	1500VAC, 50/60 HZ for 1 minute between currentcarrying and non-current-carrying metal parts
	1500VAC, 50/60 HZ for 1 minute between each terminal and ground
Vibration	10-55HZ,1.5mm double amplitude
Shock	Mechanical durable: 1, 000m/Sec2 (about 100G'S) Malfunction: 300m/Sec2 (about 30G'S)
Ambient temperature	-5 to +65
Humidity	<95% RH
Life	Mechanical: 10,000,000 operations above Electrical: 500,000 operations above
Weight	About 130 to 190g
Degree of protection	IP65

Operating characteristics:

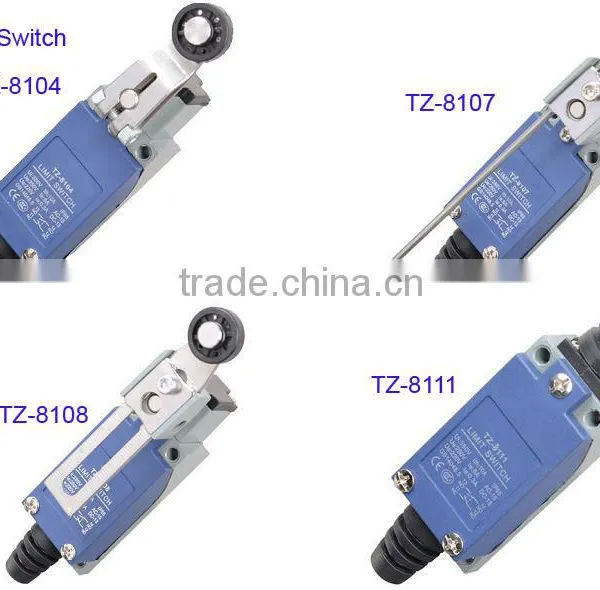

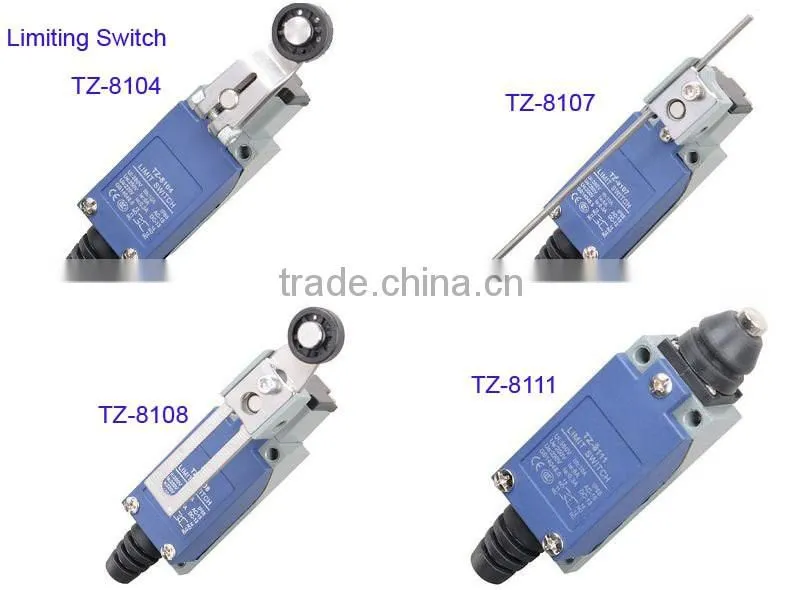

Models	TZ-8104	TZ-8108	TZ-8107	TZ-8111	TZ-8112/8122	TZ-8166/8167/8168/8169
OF Max.	750g	750g	750g	900g	900g	150g
RF Min.	100g	100g	100g	150g	150g	-
PT Max.	20º	20 º	20 º	1.5mm	1.5mm	30mm
OT Min.	50 º	50 º	50 º	4mm	4mm	-
MD Max.	12 º	12 º	12 º	1mm	1mm	-
OP	-	-	-	26 ± 0.8mm	37 ± 0.8mm	-
