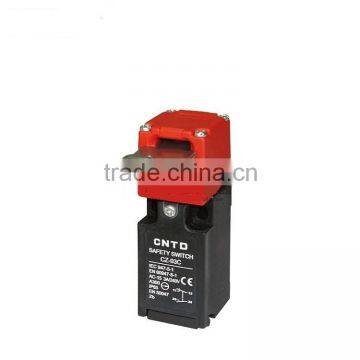

New CZ-93 Safety Interlock Switches

Name: New CZ-93 Safety Interlock Switches
Brand: CNXY
SKU: 118305995
Availability: InStock

US$ 1 - 10 MOQ: 100 Pieces

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

CNXY

Model Number:

CZ-93 series

Yueqing Xingyang Electronic Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo or Shanghai China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name CNXY

Model Number CZ-93 series

Grounding Non-Grounding

Rated Voltage 110V-250V

Application Industrial

Type Other, 2013 New CZ-93 safety interlock switches

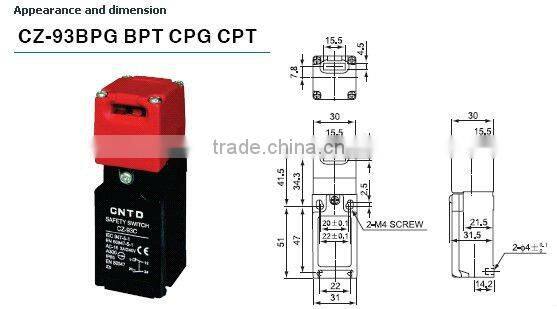

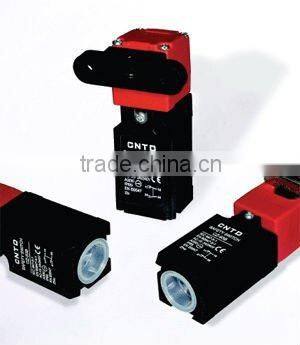

New CZ-93 safety interlock switches

Model designations

Designation	Signal	Description
1. Type	CZ-93	Safety switch
2. Type of contact blocks fitted	B	2B (2NC)
2. Type of contact blocks fitted	C	1A1B (NO-NC)
3. Conduit entries	PG	PG 13.5XP1.5
3. Conduit entries	PT	PT1/2X14UNC

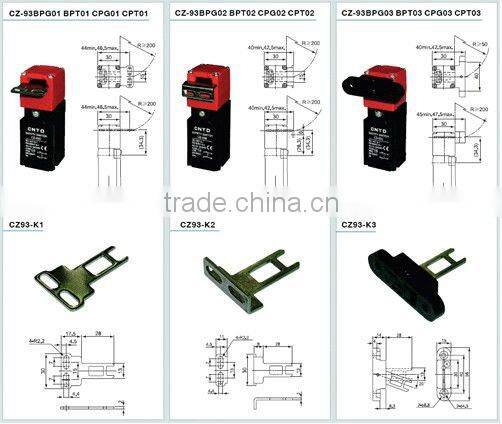

4. Actuating keys	None	None
	01	Horizontal
	02	Vertical
	03	Adjustable

Ratings

Characteristics

Rating	3A 240VAC (A300)
Operating speed	0.1m-0.5m/s
Operating frequency	30 operations/minute
Contact resistance	25mΩ max. (initial value)
Insulation resistance	100mΩ min. (at 500VDC)
Rated insulation voltage (UI)	400V
Dielectric strength	AC2500V/Umip 4KV
Vibration frequency	10-55HZ,1.5mm double amplitude
Shock	Mechanical: Approx. 1, 000m/Sec2 (about 100G'S) Electrical: Approx. 300m/Sec2 (about 30G'S)
Ambient temperature	-30°C to +70°C
Humidity	<95% RH
Life	Mechanical: 10,000,000 operations above Electrical: 150,000 operations above
Degree of protection	IP65 (EN60947-5-1)
Short-circuit protective device	10A fuse
Weight	Approx. 76g

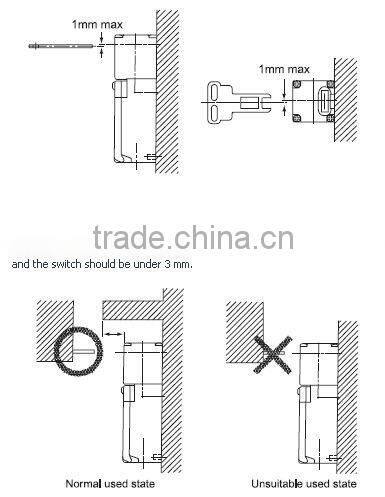

Use attention affair
To prevent the wear and the space should be within 1mm
between the key and middle of the insert hole.

Operating characteristics

Key plug in force max.	147.N(1,500gf)
key pull out force max.	29.42N(3,000gf)
Pretravel	6 ± 3mm
Total travel	(28mm)

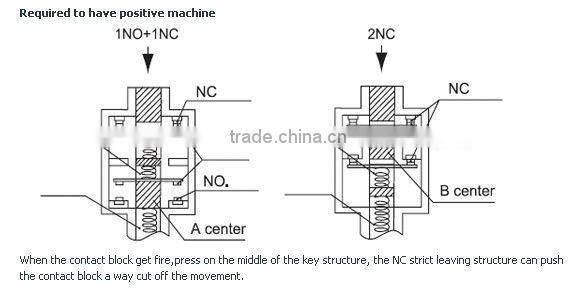

Force required to have positive min.	58.84N(6,000gf)
Positive opening travel min.	10mm
